HIKVISION DS-K1T804MF

Fingerprint Access Control Terminal·User Manual
3

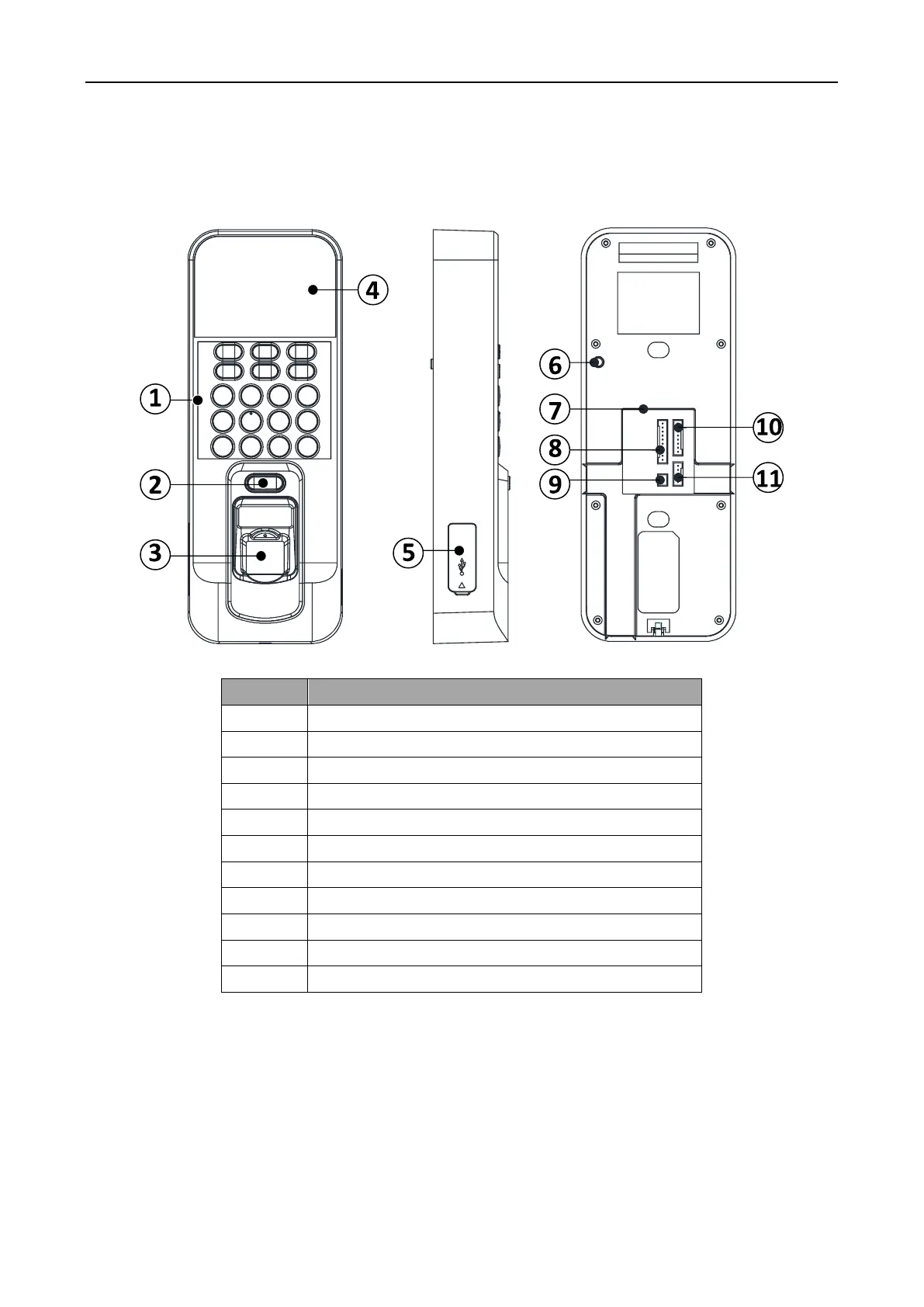

1.3 Appearance
Table 1-1 Description of DS-K1A801 Series Model
No.
Description
1
Keypad
2
Door Bell Button
3
Fingerprint Reading Module
4
2.4-inch LCD Display Screen Indicator
5
USB Interface/Reset Button (Inside of the Cover)
6
Tamper-proof Button
7
Ethernet Port
8
RS-485/Wiegand Wiring Terminal
9
12V Power Interface
10
Door Lock Wiring Terminal
11
Alarm Wiring Terminal
