HIKVISION DS-K1T804MF User Manual

Fingerprint Access Control Terminal·User Manual
133

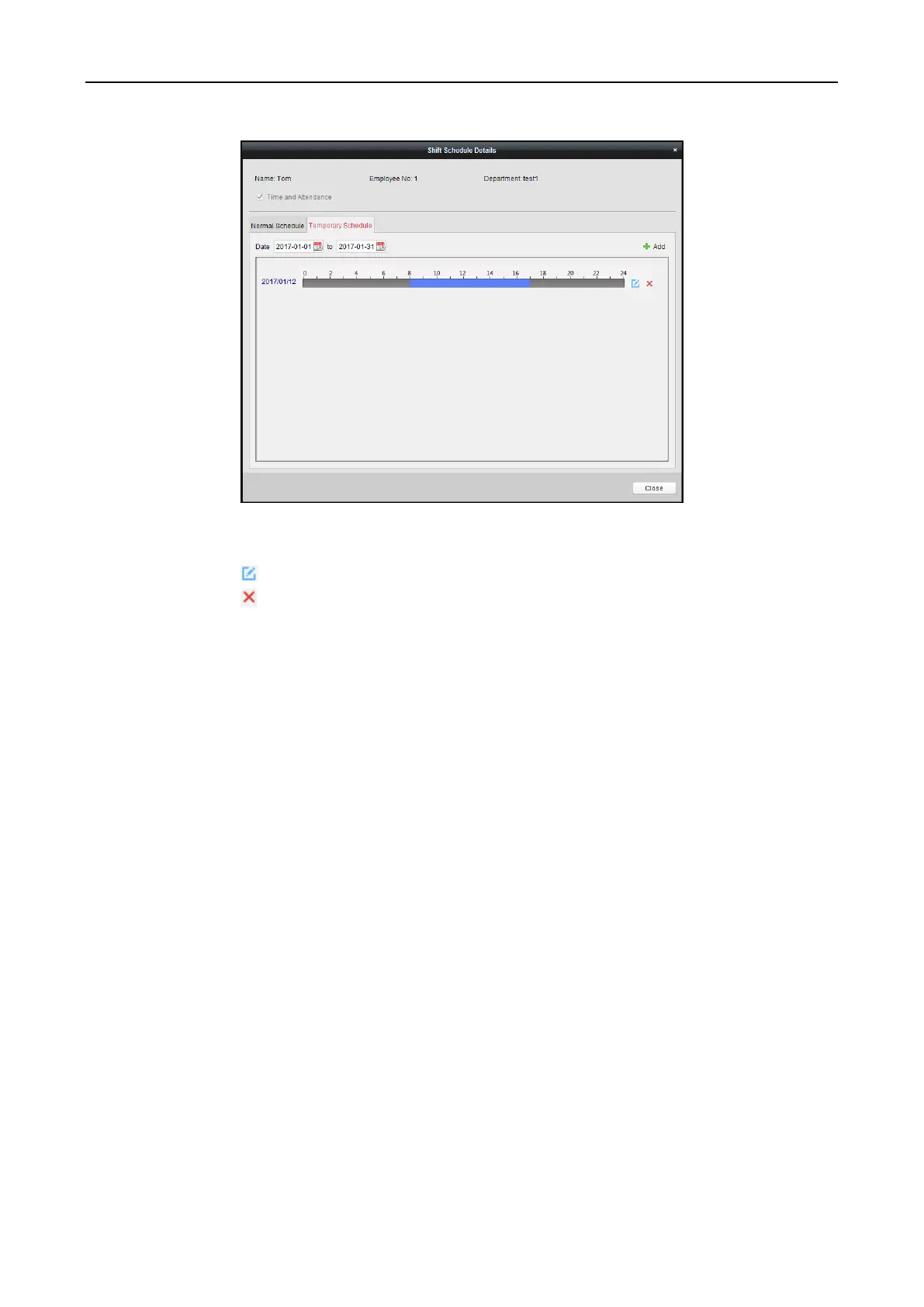

You can check and edit the temporary schedule details.
(Optional) Click Add to add temporary schedule for the selected person.
(Optional) Click to edit the time period.
(Optional) Click to delete the temporary schedule.
 Exporting Shift Schedule Details
On the Shift Schedule Management interface, select the department on the left panel and click
Export to export all persons’ shift schedule details to local PC.
Note: The exported details are saved in *.csv format.
5.14.2 Attendance Handling
Purpose:
You can handle the attendance, including check-in correction, check-out correction, leave and
business trip, and manual calculation of attendance data.
Open Time and Attendance module and click Attendance Handling to enter the Attendance
Handling interface.

HIKVISION DS-K1T804MF Specifications

General

Type	Basic access control reader
Product color	Black
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Supported protocols	Mifare
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Contactless working distance	45 mm
International Protection (IP) code	IP42
Display type	LCD
Display diagonal	2.4 \
PC connected	-
RS-485 ports	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
