HIKVISION DS-K1T804MF User Manual

Fingerprint Access Control Terminal·User Manual
134

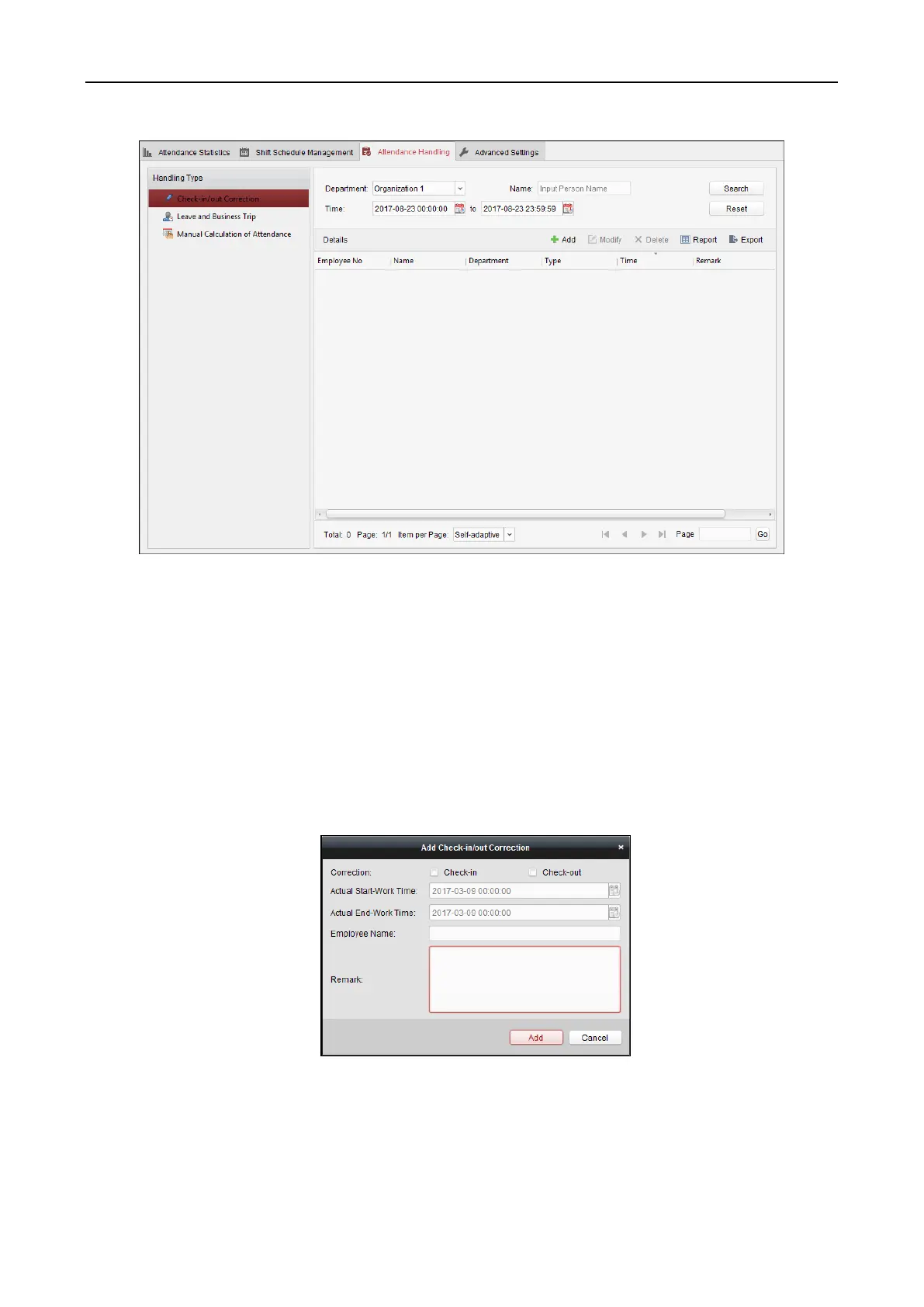

Check-in/out Correction
Purpose:
You can add, edit, delete, search the check-in/out correction and generate the related report. You
can also export the check-in/out correction details to local PC.
 Add Check-in/out Correction
Steps:
1. Click Check-in/out Correction tab.
2. Click Add to pop up Add Check-in/out Correction dialog.
3. Set the check-in/out correction parameters.
For Check-in Correction: Check Check-in checkbox and set the actual start-work time.
For Check-out Correction: Check Check-out checkbox and set the actual end-work time.
4. Click Employee Name field and select the person.

HIKVISION DS-K1T804MF Specifications

General

Type	Basic access control reader
Product color	Black
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Supported protocols	Mifare
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Contactless working distance	45 mm
International Protection (IP) code	IP42
Display type	LCD
Display diagonal	2.4 \
PC connected	-
RS-485 ports	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
