HIKVISION DS-KD-KK User Manual

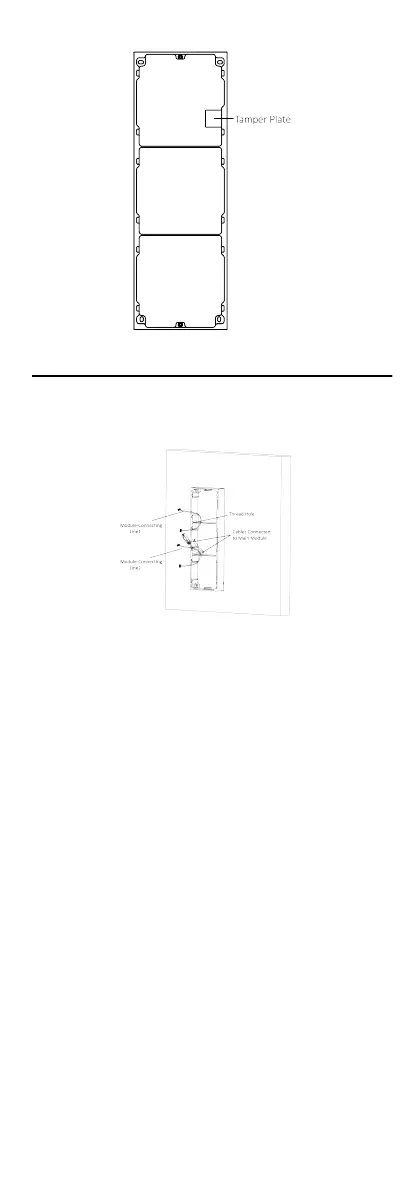

Figure 4-19 Mounng Frame
5. Thread the module-connecng line across the thread holes of
the frame. Pass the main unit connecng line across the thread
hole to the top grid.
Figure 4-20 Placement of Lines
6. Connect the cables.
1) Connect the lines and module-connecng line 1 to the
corresponding interfaces of the main unit, then place the
main unit into the upper grid.
2) Connect the other end of the
module-connecng line 1 to
the input interface of the sub module. Connect two sub
modules via
module-connecng line 2.
3) Organize the cables with cable e in the package. The
suggested cable connecon picture as shown below.
21

HIKVISION DS-KD-KK Specifications

General

Product color	Black, Grey, White
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	438 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
Sustainability certificates	RoHS, WEEE, REACH
DC input voltage	12 V

Weight and Dimensions

Depth	33.7 mm
Width	98.2 mm
Height	100.2 mm
Weight	190 g
