Video Intercom Module Door Station·Quick Start Guide
40
Take the 400 mm one for this step.
The green-yellow line in the package is for grounding.

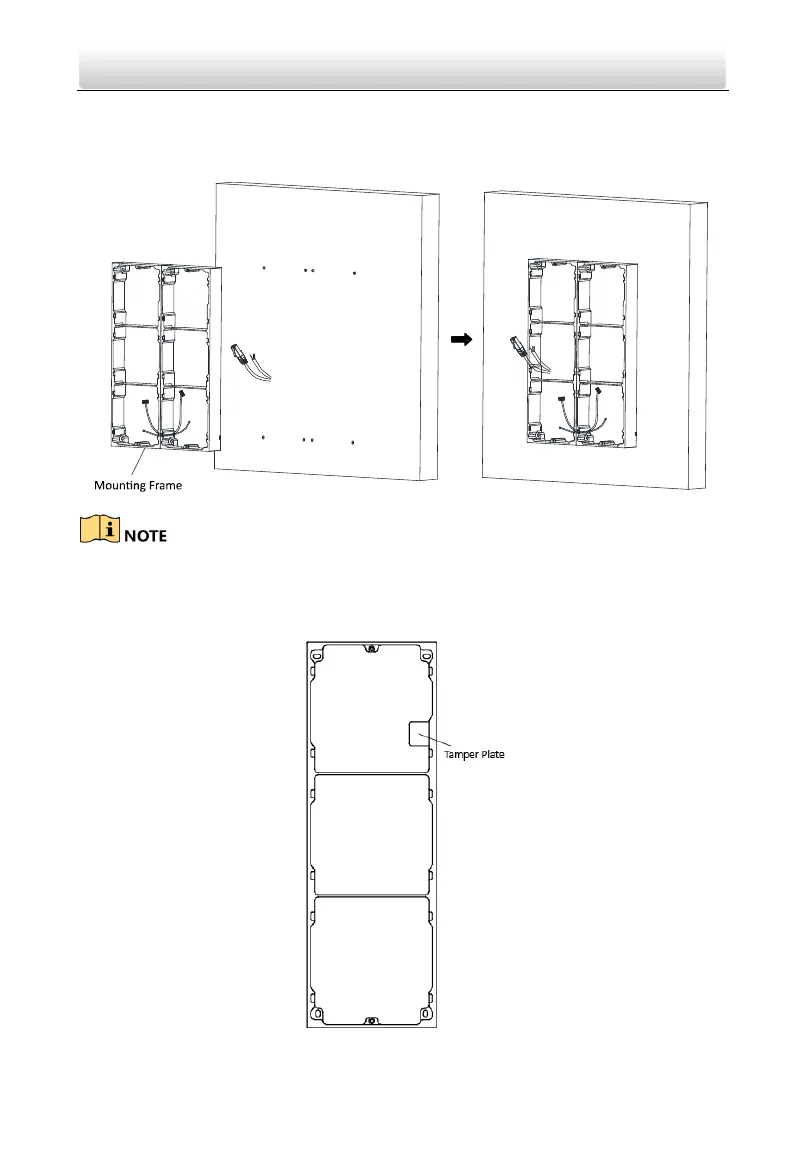

6. Fix the mounting frame onto the wall with 8 expansion bolts.
Figure 3-43 Fix the Mounting Frame
The mounting frame should be placed exactly as below for this step. The tamper plate
should be at the low right of the first grid.
To Next Page
