HIKVISION DS-KD8003-IME1 - Card Reader Module

Video Intercom Module Door Station·User Manual
Table 2-4 Appearance Description
No.
Description
1
Indicator1(Solid yellow during calling)
2
Indicator2(Solid white during two-way audio)
3
Indicator3(Solid blue when door is open)
4
Module-connecting Interface(output)
5
Module-connecting Interface(input)
6
Debug Port

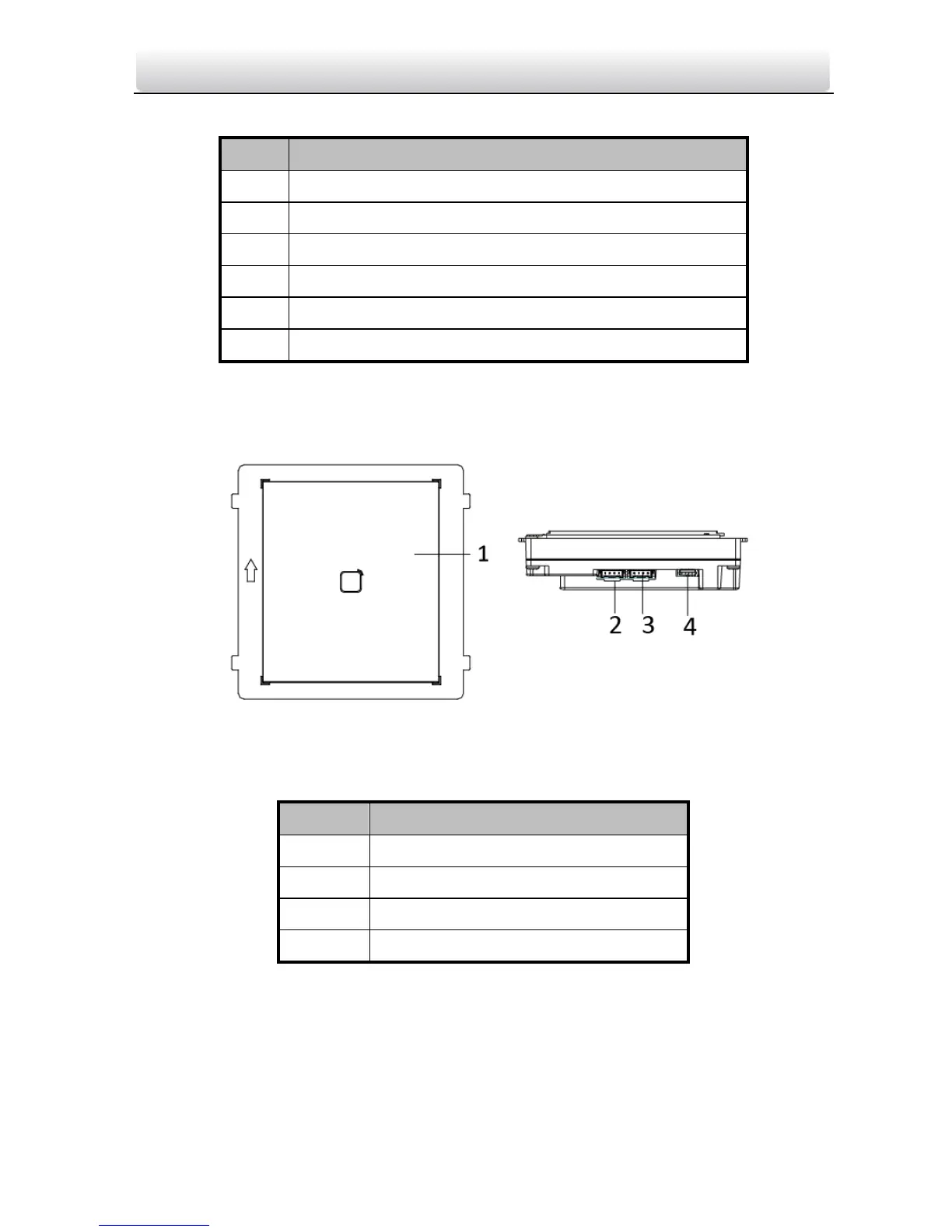

2.5 Card Reader Module
Figure 2-5 Card Reader Module Appearance
Table 2-5 Appearance Description
No.
Description
1
Card Reading Area
2
Module-connecting Interface(output)
3
Module-connecting Interface(input)
4
Debug Port
