Video Intercom Module Door Station·User Manual

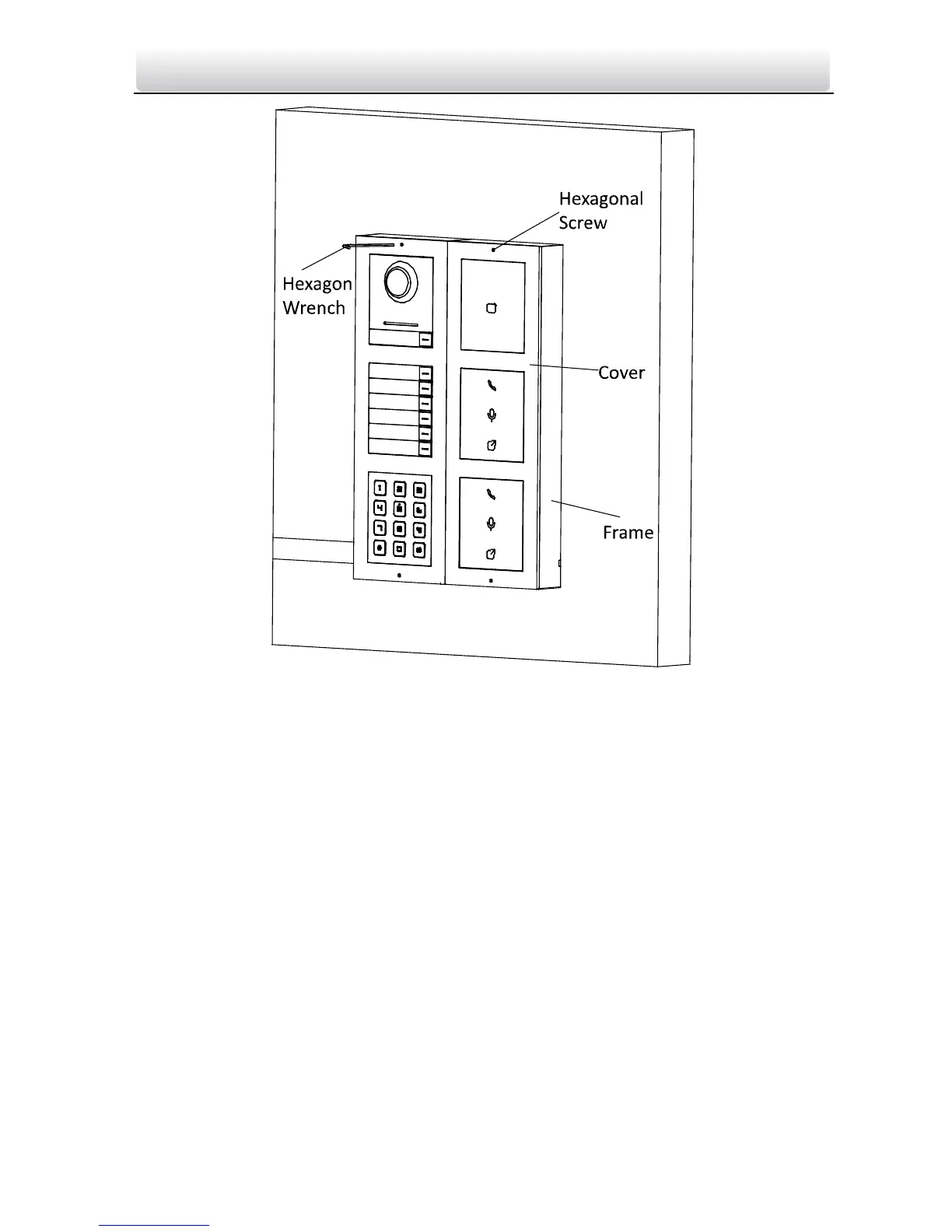

Figure 4-48 Fix the Cover
4.5.3 More-than-Four Module Flush Mounting
Steps:
1. Paste two installation Sticker A onto the wall, align them along the solid line.
Make sure the stickers are placed leveled via measuring with the gradienter.
2. Cave one installation hole along the solid line on the sticker.
The suggested dimension of installation hole is 325(L)×235(W)×33(D) mm..
