HIKVISION DS-KD8003-IME1 User Manual

Video Intercom Module Door Station·User Manual
5.5 Configure System Parameters

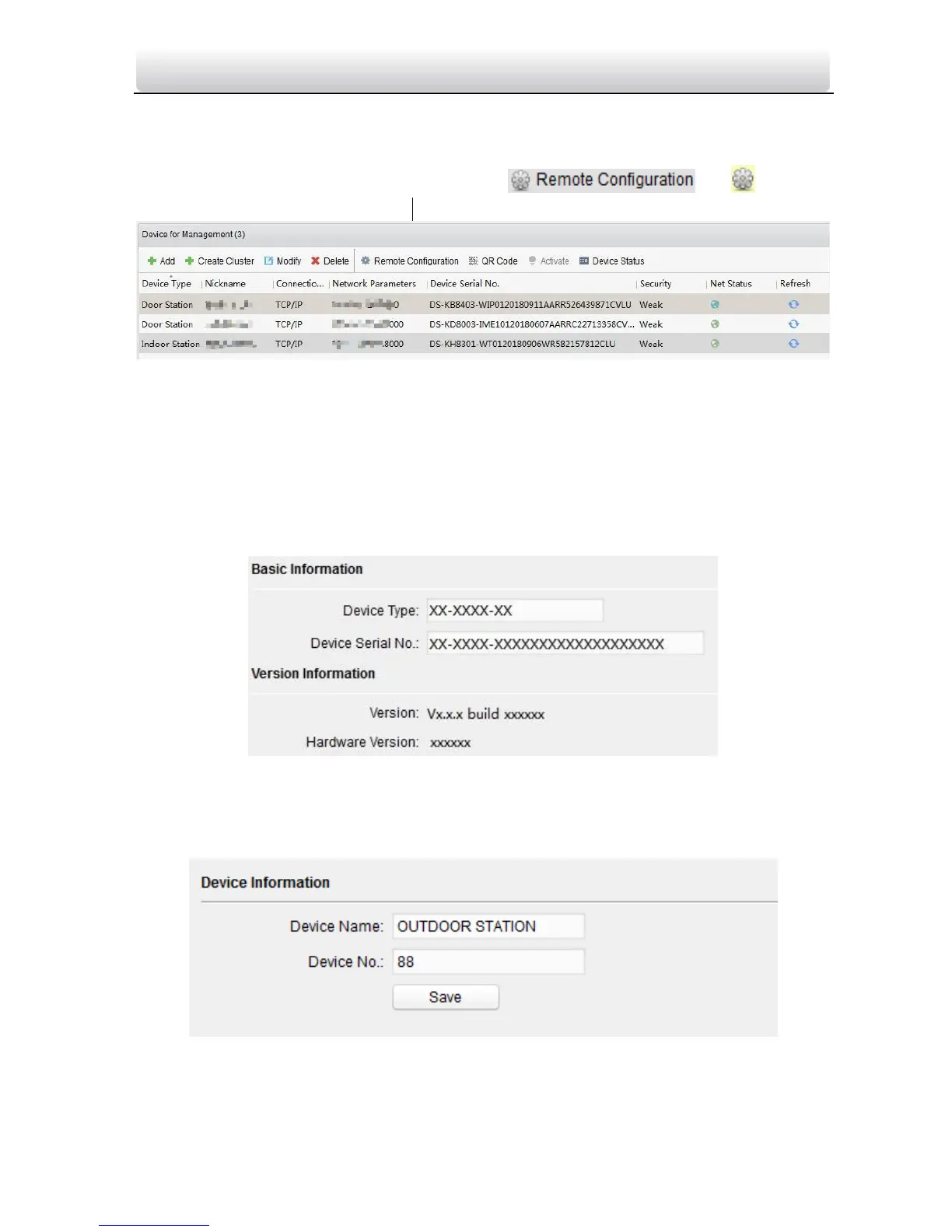

In the device list area, select a device and click or to enter
the remote configuration interface.
Click the System button on the remote configuration interface to display the device
information: Device Information, General, Time, System Maintenance, User, and so on.
5.5.1 Device Information
Click the Device Information button to enter device basic information interface. You can
view basic information (the device type, and serial No.), and version information of the
device.
5.5.2 General
Click the General button to enter device general parameters settings interface. You can
view and edit the device name and device ID.
5.5.3 Time
Steps:

HIKVISION DS-KD8003-IME1 Specifications

General

Product color	Black
International Protection (IP) code	IP65
Color	Yes
Relay inputs	2
Video codecs	H.264
Number of buttons	1 buttons
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
LED type	IR
Display diagonal	- \
Indoor unit included	No
Voice codecs	G.711u
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Outdoor unit power type	DC
Power consumption (typical)	10 W

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	43.9 mm
