Video Intercom Module Door Station·User Manual
4.5 More-than-Three Module Installation
4.5.1 Installation Accessory Description

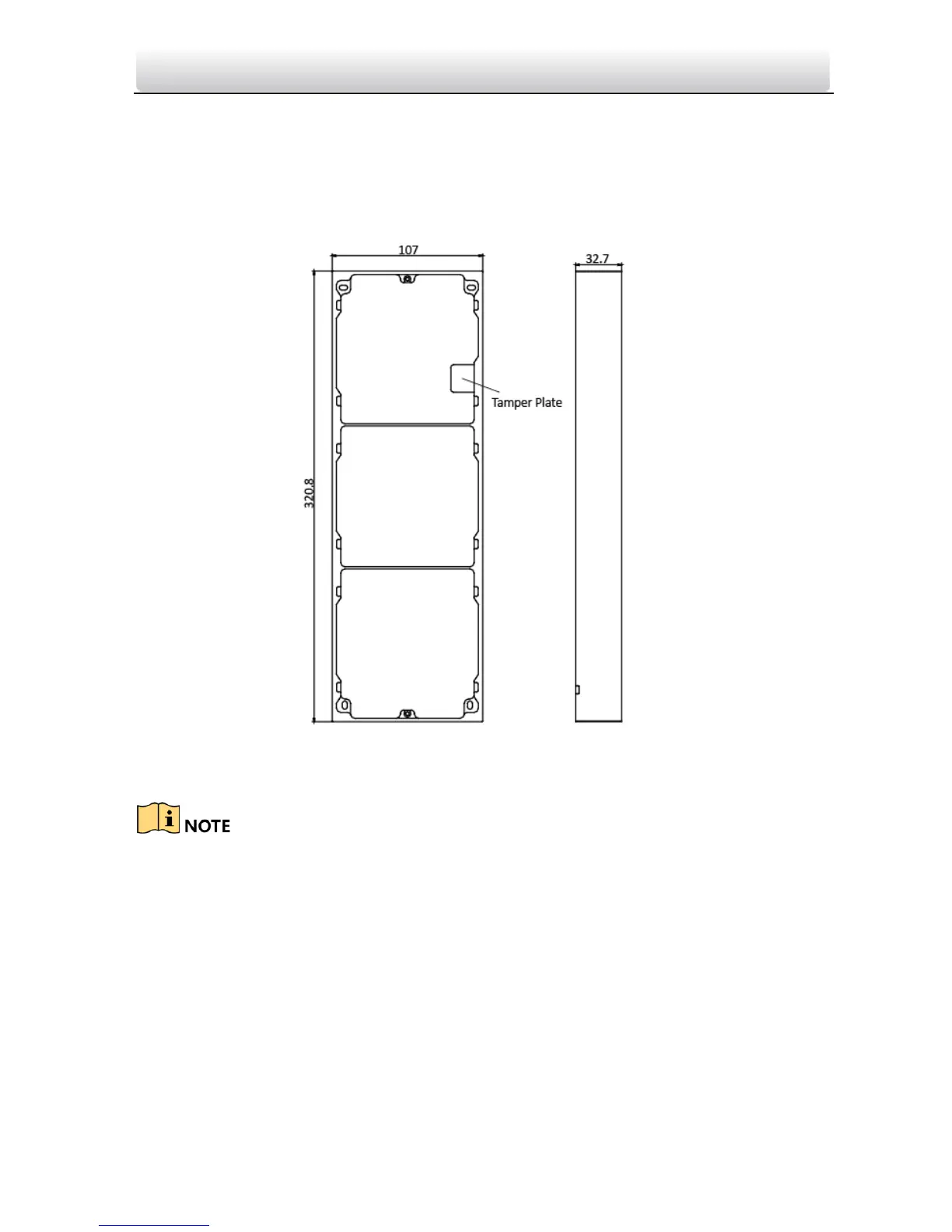

Figure 4-40 Front and Side View
It takes two three-module mounting frames. The dimension of three-module
mounting frame is: 320.8(L)×107 (W)×32.7(D) mm.
The dimensions above are for reference only. The actual size can be slightly different
from the theoretical dimension.
4.5.2 More-than-Three Module Surface Mounting
Steps:
1. Paste two Sticker 1 onto the wall. Make sure the stickers are placed leveled via
measuring with the gradienter.
2. Chisel 8 holes with drill align to the screw holes on the sticker.
The suggested size of hole is 6 (diameter) × 25 (depth) mm.
