HIKVISION DS-KD8003-IME1 User Manual

Video Intercom Module Door Station·User Manual
The suggested length of cables left outside is 270 mm.
3. Pull out the cable through the cable hole of the left sticker.

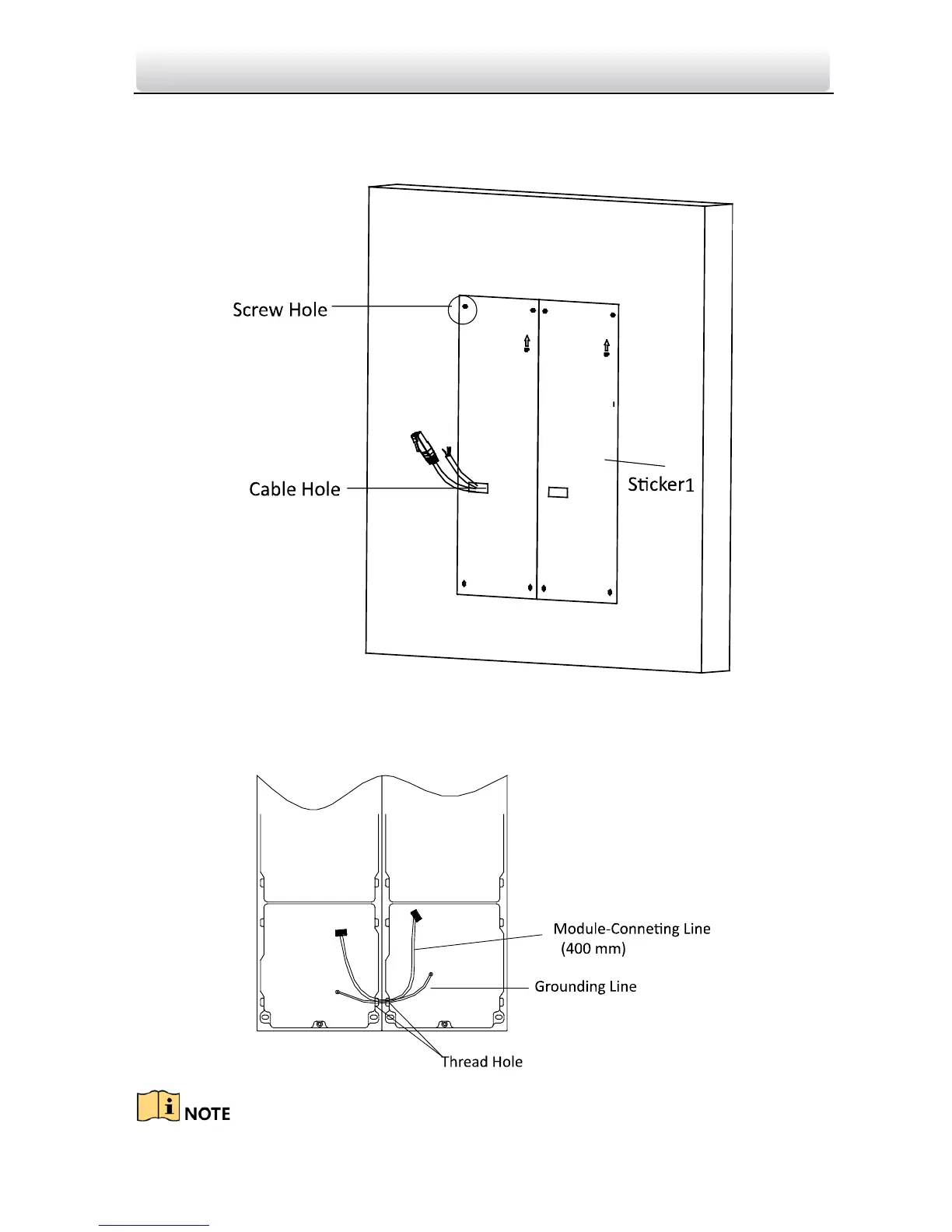

Figure 4-41 Chisel Screw Hole
4. Remove the stickers and insert the expansion sleeves into the screw holes.
5. Thread the module-connecting line (400 mm) and grounding line across the thread
hole of both frames.
Figure 4-42 Place the Grounding Line and Module-Connecting Line

HIKVISION DS-KD8003-IME1 Specifications

General

Product color	Black
International Protection (IP) code	IP65
Color	Yes
Relay inputs	2
Video codecs	H.264
Number of buttons	1 buttons
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
LED type	IR
Display diagonal	- \
Indoor unit included	No
Voice codecs	G.711u
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Outdoor unit power type	DC
Power consumption (typical)	10 W

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	43.9 mm
