Video Intercom Module Door Station·User Manual

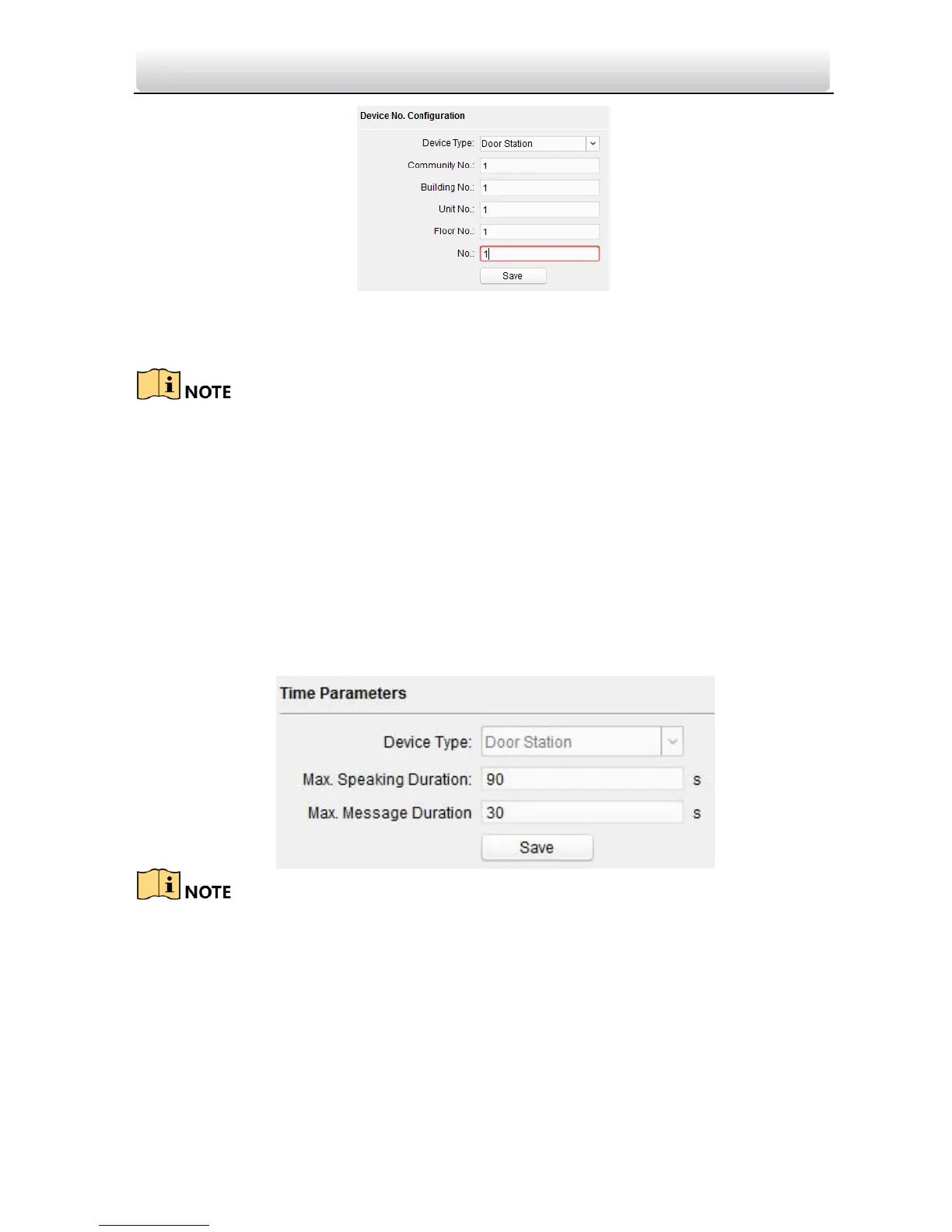

2. Select the device type from the drop-down list, and set the corresponding
information.
3. Click the Save button to enable the device number configuration.
 For main door station, the serial No. is 0.
 For sub door station, the serial No. is higher than 0. Serial No. ranges from 1 to 99.
 For each villa or building, at least one main door station should be configured, and
sub door stations can be customized.
 For one main door station, at most 8 sub door stations can be customized.
5.6.2 Time Parameters
1. Click the Time Parameters button to enter time parameters settings interface.
2. Configure the maximum ring duration, maximum live view time, and call forwarding
time.
3. Click the Save button.
For door station, maximum speaking time and maximum message time should be
configured. Maximum speaking time varies from 90s to 120s, and maximum message
time varies from 30s to 60s.
5.6.3 Access Control and Elevator
Click Access Control and Elevator to enter corresponding configuration page.

HIKVISION DS-KD8003-IME1 Specifications

General

Product color	Black
International Protection (IP) code	IP65
Color	Yes
Relay inputs	2
Video codecs	H.264
Number of buttons	1 buttons
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
LED type	IR
Display diagonal	- \
Indoor unit included	No
Voice codecs	G.711u
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Outdoor unit power type	DC
Power consumption (typical)	10 W

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	43.9 mm
