HIKVISION DS-KD8003-IME1 User Manual

Video Intercom Module Door Station·User Manual

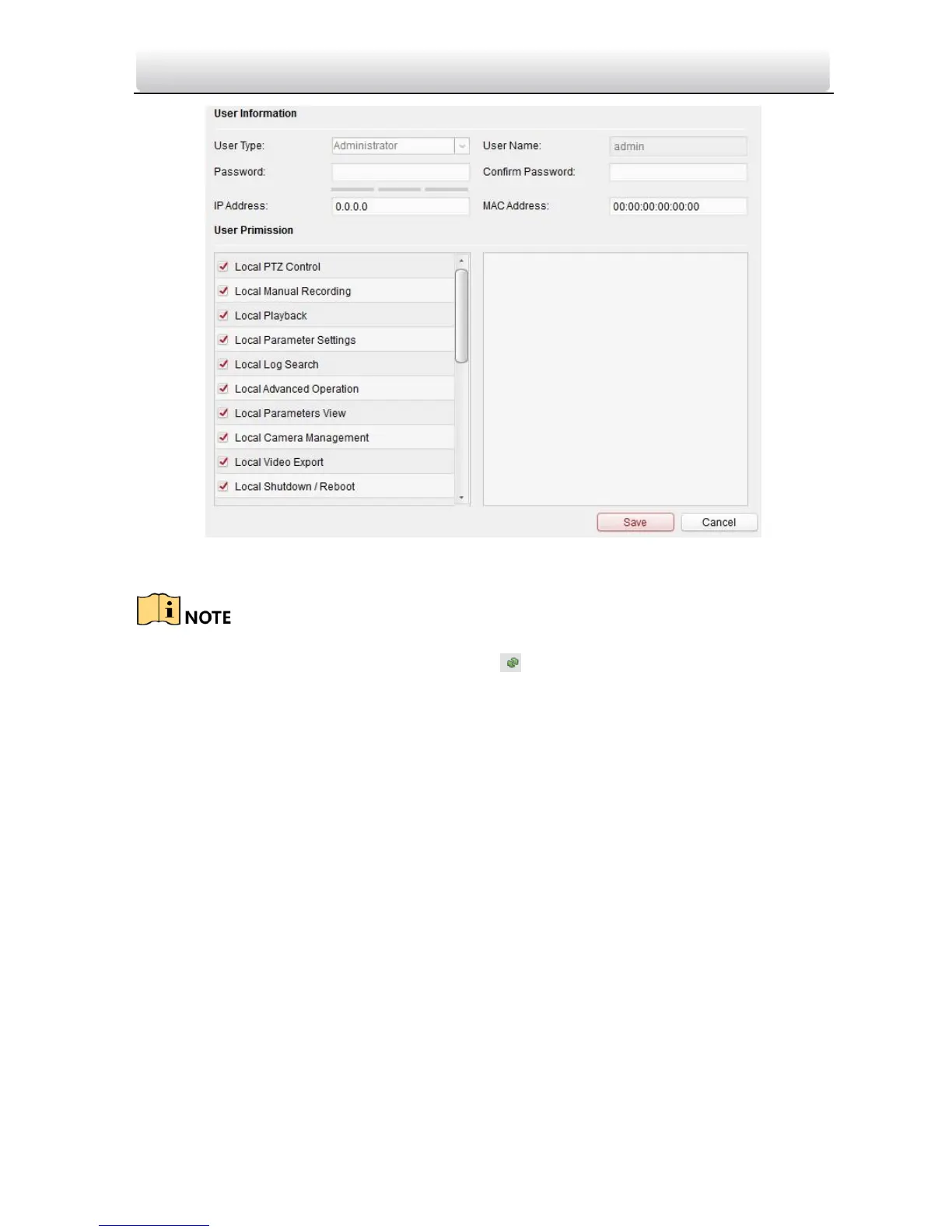

3. Enter the new password, and confirm it.
4. Click the Save button to realize the editing of password.
 The new password and confirm password should be identical.
 After editing the password of device, click button from the device list, the added
device will not be there. You should add the device again with new password to
operate the remote configuration.
5.6 Configure Video Intercom Parameters
Click the Video Intercom button on the remote configuration interface to enter the
video intercom parameters settings: Device Number Configuration, Time Parameters,
Access and Elevator Control, IO Input/Output, Volume, Dial, Sub Module and so on.
5.6.1 Device ID Configuration
Steps:
1. Click the ID Configuration button to enter device ID configuration interface.

HIKVISION DS-KD8003-IME1 Specifications

General

Product color	Black
International Protection (IP) code	IP65
Color	Yes
Relay inputs	2
Video codecs	H.264
Number of buttons	1 buttons
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
LED type	IR
Display diagonal	- \
Indoor unit included	No
Voice codecs	G.711u
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Outdoor unit power type	DC
Power consumption (typical)	10 W

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	43.9 mm
