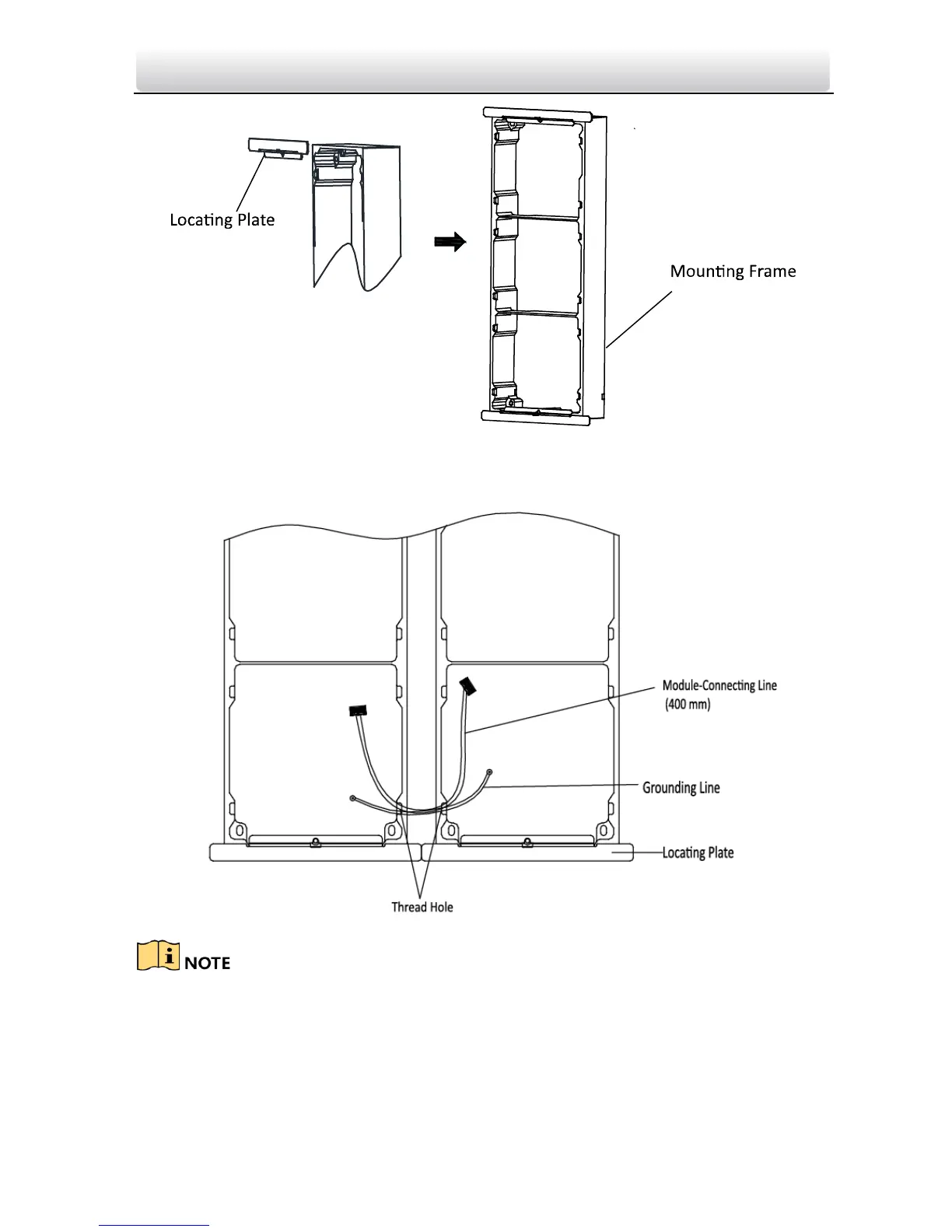

Figure 4-51 Install Locating Plate
7. Thread the module-connecting line (400 mm) and grounding line across the thread
hole of both frames.
Figure 4-52 Place the Grounding Line and Module-Connecting Line
There are 6 module-connecting lines in the package: 190 mm *4 and 400 mm*2.
Take the 400 mm one for this step.
The green-yellow line in the package is for grounding.
8. Insert the mounting frame together with the locating plates into the hole, and fix it
with 8 expansion bolts.
