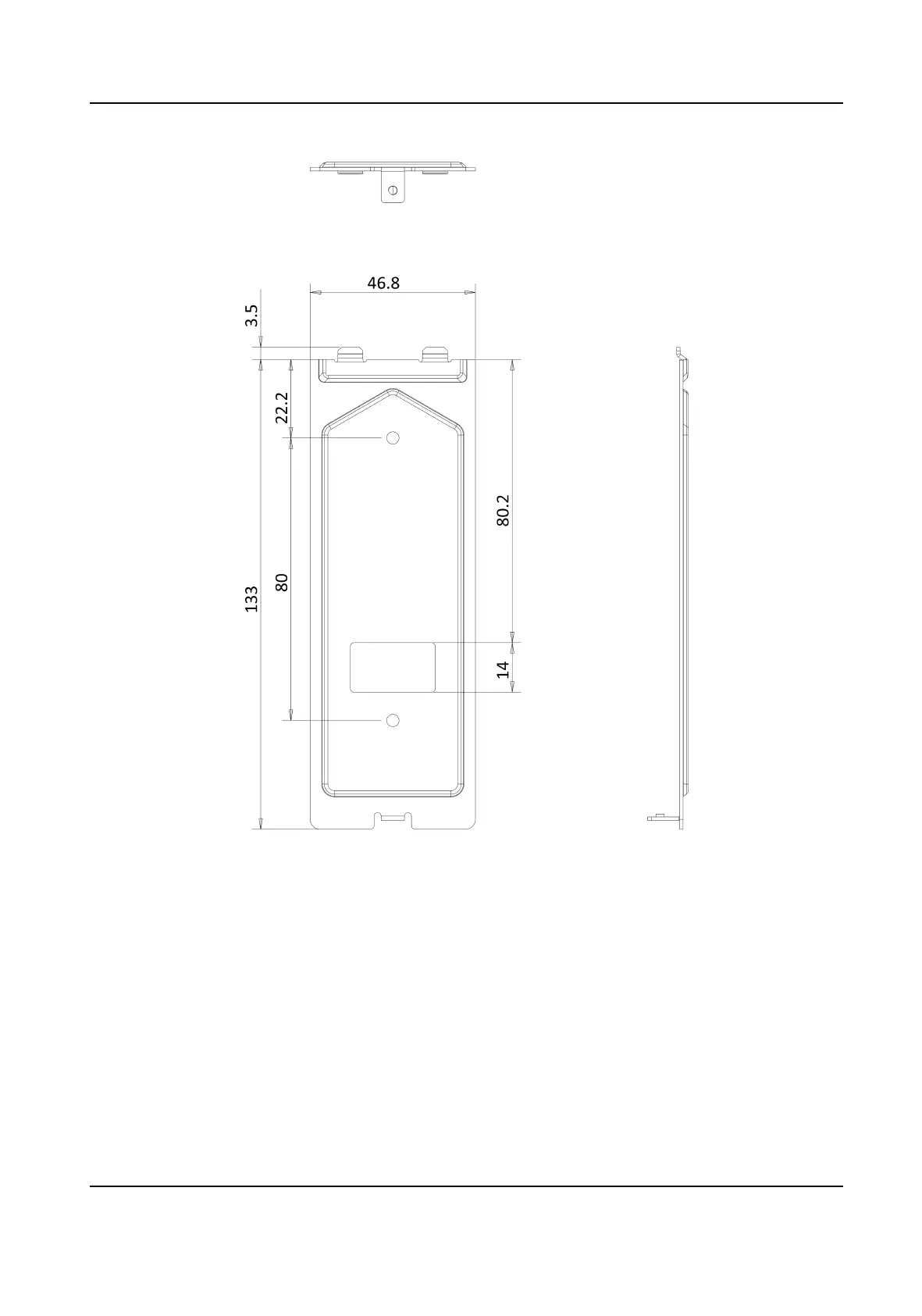

Figure 5-4 Wall Mounng Plate
Steps
1.
Fix the wall
mounng shield to the wall with 2 screws.
2.
Hook the door staon to the shield ghtly by inserng the hooks of shield panel into the slots on
the rear panel of the door
staon.
3.
Secure the door staon with the mounng shield with the set screw.
