Page #23 background imageLoading...
Page #23 background image

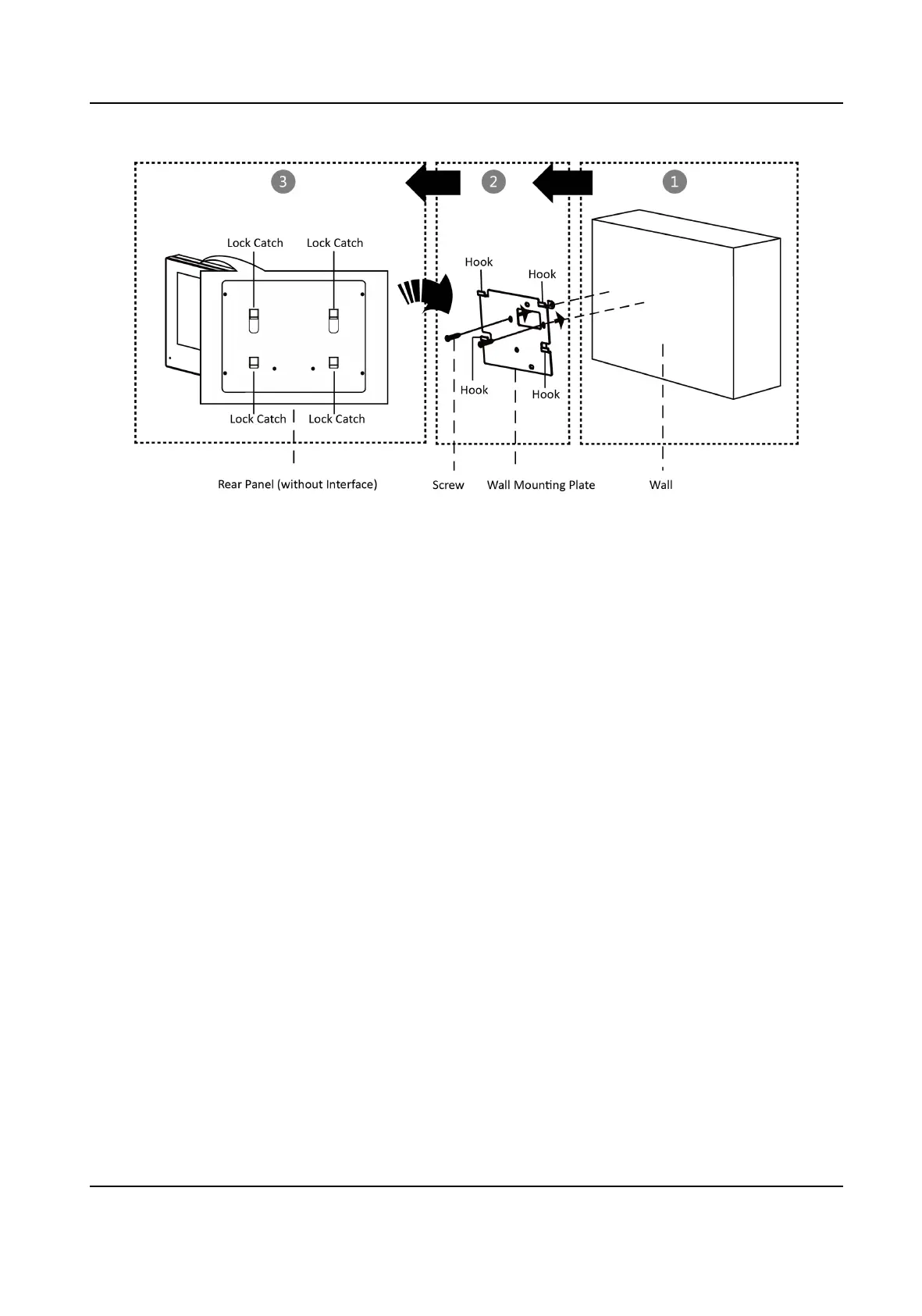

Figure 5-3 Wall Mounng without Juncon Box
5.2 Install Doorbell
Before You Start
●
Make sure you have powered o the main power switch of your home.
●
Make sure you have connected power cables of the doorbell.
The Dimension of the wall
mounng plate is shown below.
Video Intercom Kit User Manual
13
