HIKVISION DS-KH6320-WTE1 Configuration Guide

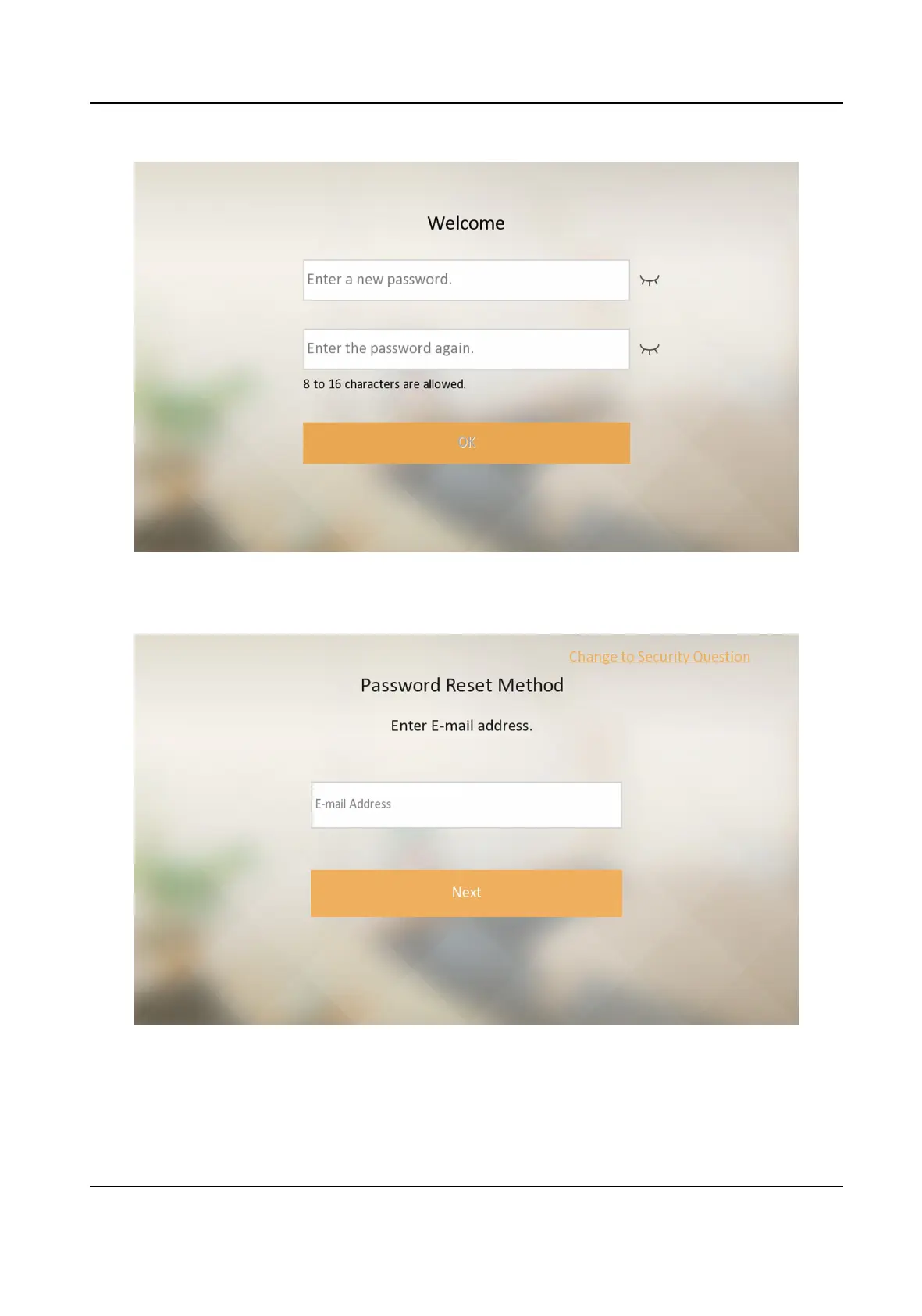

Figure 3-2 Acvate
3.
Set password reset methods and tap Next.
Figure 3-3 Password Reset Page
-
Bind an email address. If you forget your admin password (acvaon password), you can
change the password via the reserved email address.
Network Indoor Staon Conguraon Guide
4

HIKVISION DS-KH6320-WTE1 Specifications

General

Display Size	7 inch
Resolution	1024 × 600
Network Protocols	TCP/IP, SIP, RTSP
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Power Consumption	≤ 6 W
Operation Method	Touchscreen
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Wi-Fi Standard	IEEE802.11 b/g/n
Wi-Fi Frequency Range	2.4 GHz
RS-485	1
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Audio	Two-way audio
Power Supply	12 VDC, PoE (IEEE802.3af)
Installation	Wall-mounted
Display Type	TFT LCD
Network Interface	10/100 Mbps Ethernet
Alarm Output	1 channel
TF Card	up to 32 GB
Working Humidity	10% to 90%
