HIKVISION DS-KH6320-WTE1 Configuration Guide

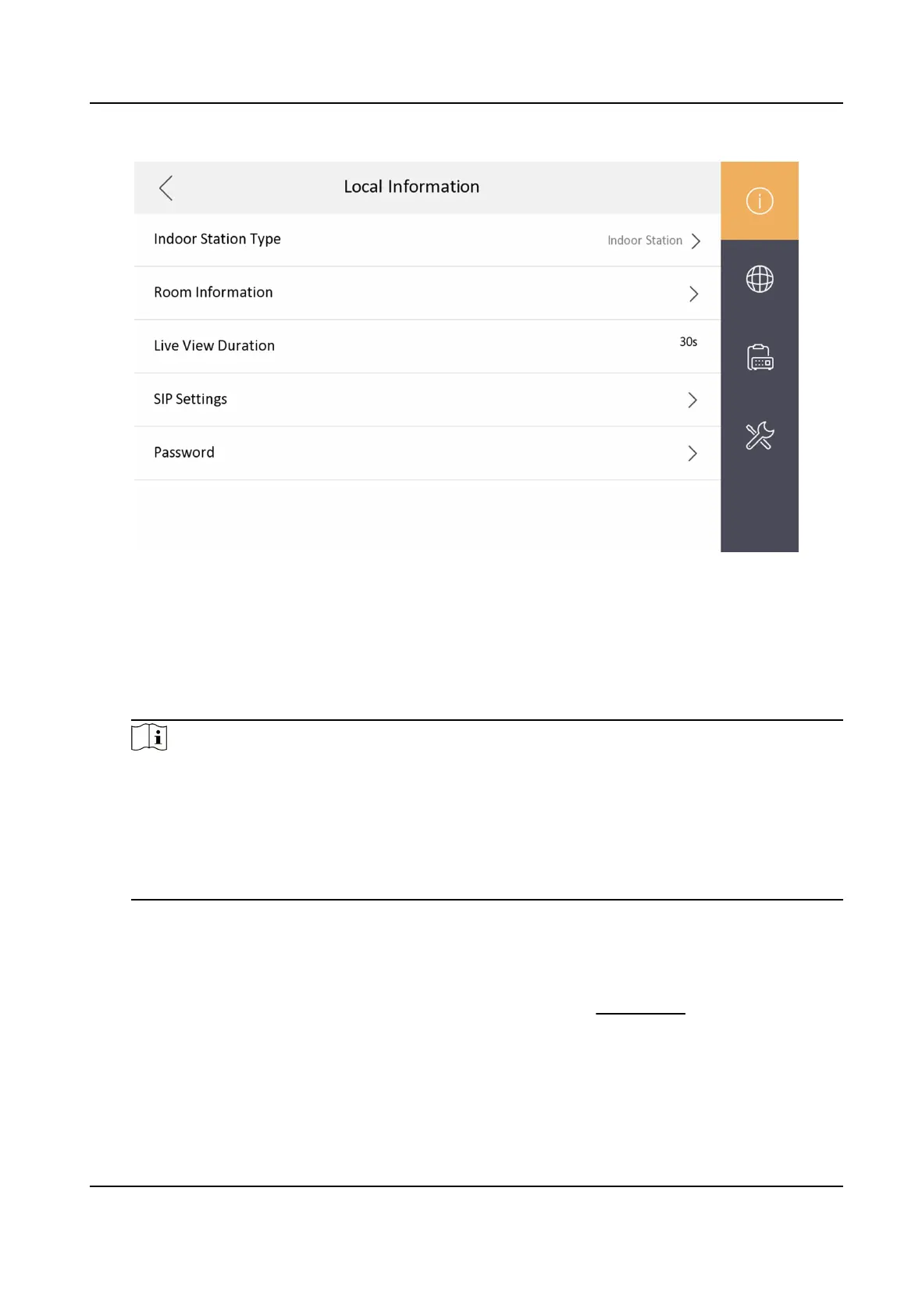

Figure 3-21 Set Indoor Staon No.
2.
Select Indoor Staon to set the room informaon, live view duraon, SIP parameters and
password.
Room
Informaon
You can set room name, oor No., and room No. Tap Advanced Sengs to set community
No., building No. and unit No. if you need.
Note
●
Community No., building No., and unit No. can be omied if there is no such informaon.
●
If there are two indoor staons that are in the same building, and should call each other,
enter the the room No. directly to call.
●
If there are two indoor
staons that are in two buildings, and should call each other, enter
the building No. and the room No. to call. For examle, call 1-405 to call room 405 in
building 1.
Live View Duraon
You can set the duraon of live view.
SIP Sengs
You can set SIP parameters. For more details, please refer to: SIP Sengs
Password Sengs
You can set unlock password and duress code.
3.
Select Indoor Extension to set the room
informaon, live view duraon, registraon password
and enable SIP 1.0 according to your needs.
Network Indoor Staon Conguraon Guide
20

HIKVISION DS-KH6320-WTE1 Specifications

General

Display Size	7 inch
Resolution	1024 × 600
Network Protocols	TCP/IP, SIP, RTSP
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Power Consumption	≤ 6 W
Operation Method	Touchscreen
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Wi-Fi Standard	IEEE802.11 b/g/n
Wi-Fi Frequency Range	2.4 GHz
RS-485	1
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Audio	Two-way audio
Power Supply	12 VDC, PoE (IEEE802.3af)
Installation	Wall-mounted
Display Type	TFT LCD
Network Interface	10/100 Mbps Ethernet
Alarm Output	1 channel
TF Card	up to 32 GB
Working Humidity	10% to 90%
