HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
166

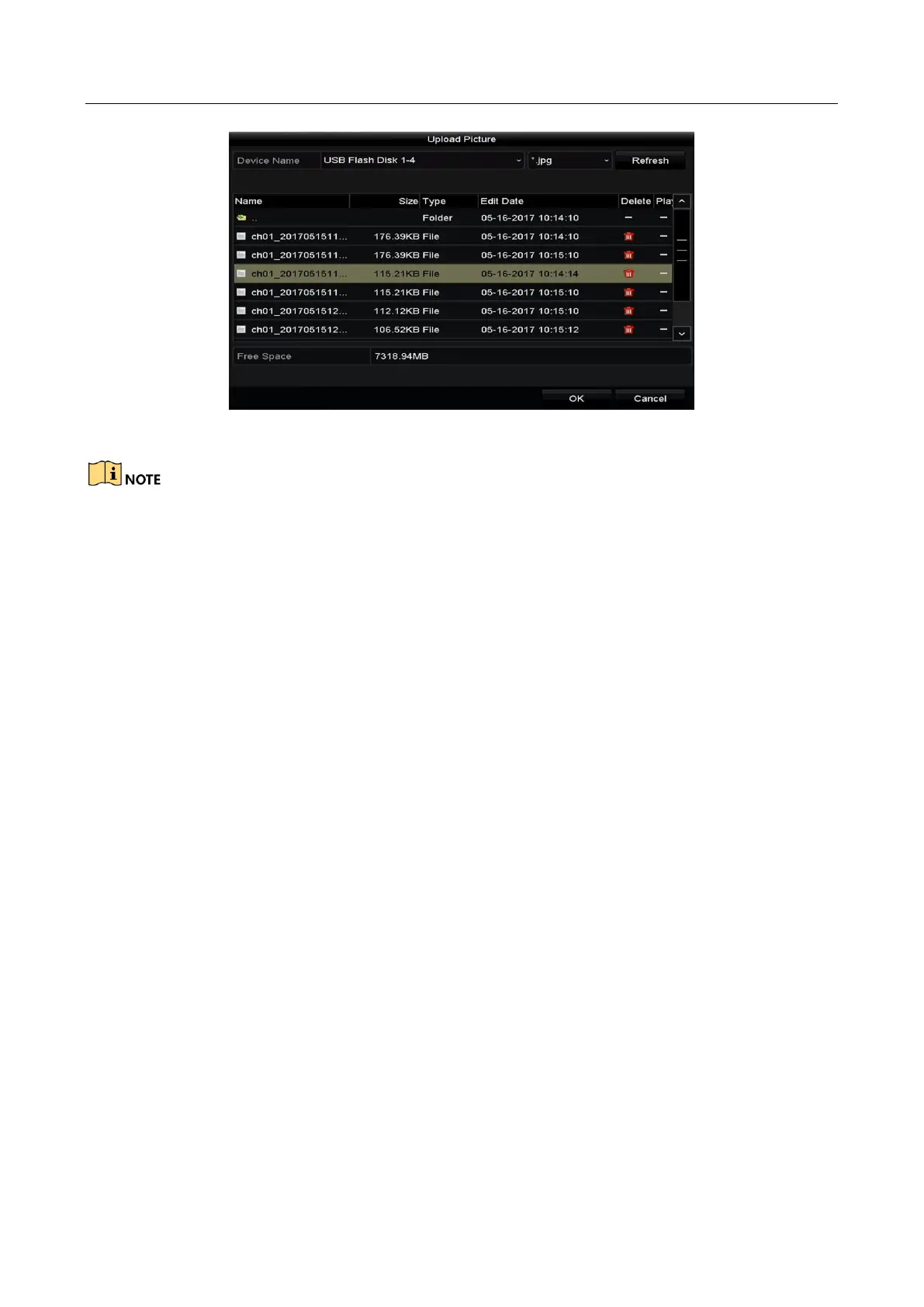

Figure 12-5 Upload Picture for Search

You can upload one picture each time.

When there are multiple targets existing in the same picture, up to 30 target pictures can
be analyzed and displayed. And up to 5 targets are supported for local search
simultaneously and 1 target for remote search by client software.

The maximum allowed picture size is 3840*2160.

The picture must be in JPG/jpg/JPEG/jpeg format.

The picture name (with the suffix) cannot exceed 64 characters.

Make sure the picture you uploaded is clear and recognizable.
Step 4 On the Human Body Search interface, set the similarity value from 1 to 100.

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
