Network Video Recorder User Manual
96

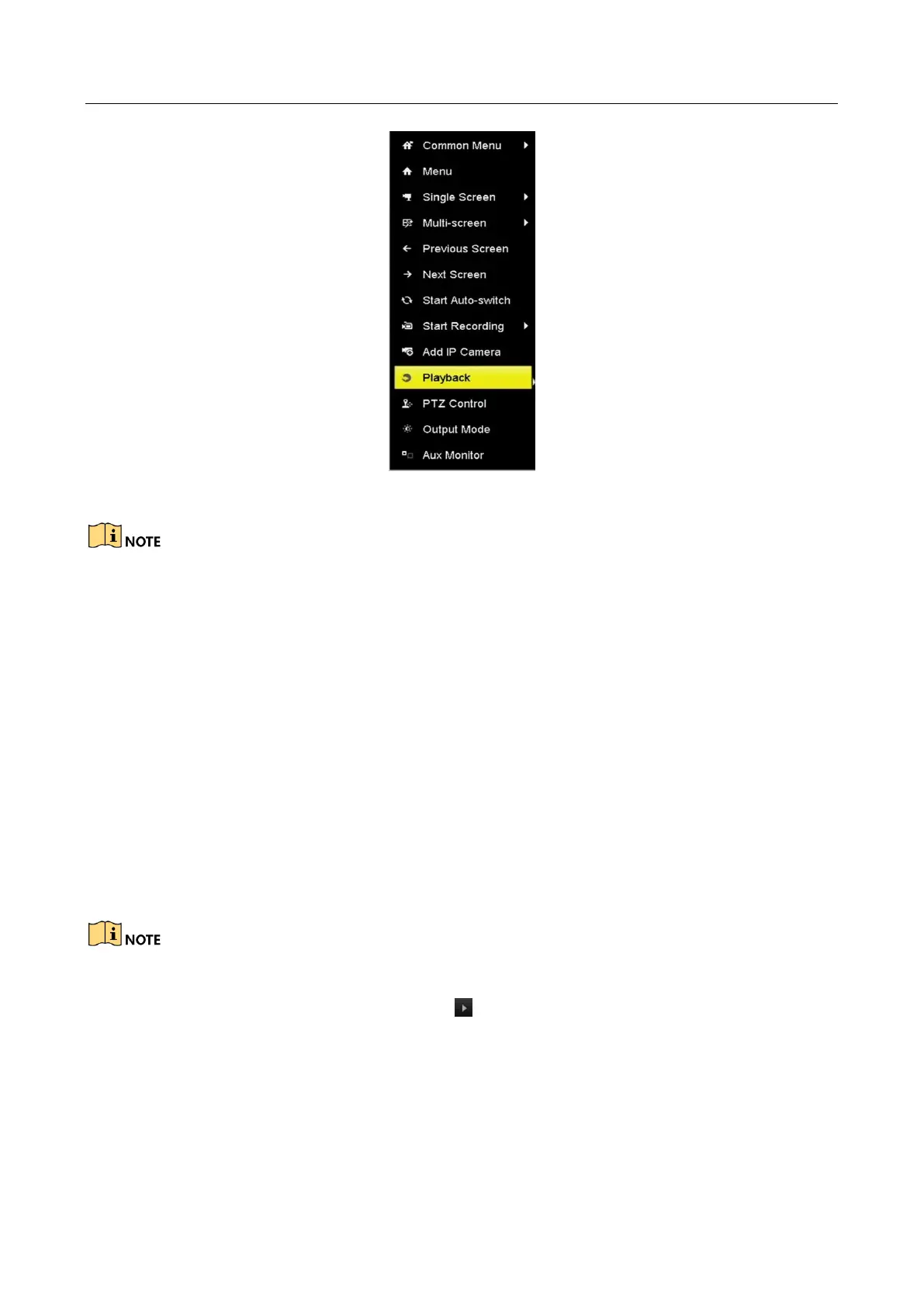

Figure 7-2 Right-click Menu under Live View
Pressing numerical buttons will switch playback to the corresponding channels during playback
process.
Playback by Time
Purpose
Play back video files recorded in specified time duration. Multi-channel simultaneous playback and
channel switch are supported.
Step 1 Go to Menu >Playback.
Step 2 Select the Normal/Smart in the drop-down list on the top-left side.
Step 3 Select the stream to Main Stream or Sub Stream.
Step 4 Select a camera in the camera list.
The main stream or sub stream for recording is configurable in Menu>Record>Parameters.
Step 5 Select a date in the calendar and click the button on the left toolbar to play the video
file.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION iDS-9632NXI-I8/16S and is the answer not in the manual?

HIKVISION iDS-9632NXI-I8/16S Specifications

General IconGeneral
Input bandwidth256 Mbit/s
Output bandwidth200 Mbit/s
Maximum frame rate30 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Wi-FiNo
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
RAID supportYes
HDD interfaceSerial ATA
Maximum storage capacity80 TB
Number of HDDs installed0
Number of HDDs supported8
RS-485 ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
Product colorBlack
Rack capacity2U
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Power consumption (typical)70 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
Weight10000 g
