4.3 Power Supply (A Model Beds)
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 10 CareAssist® and CareAssist® ES Bed Service Manual (MAN330 REV 4)
5. Remove the cover (C).
6. Note the routing and connection of the cables in the power supply.
7. Disconnect the AC power cable (E) from the fuse board (F) (see figure 4-4
on page 4-10).

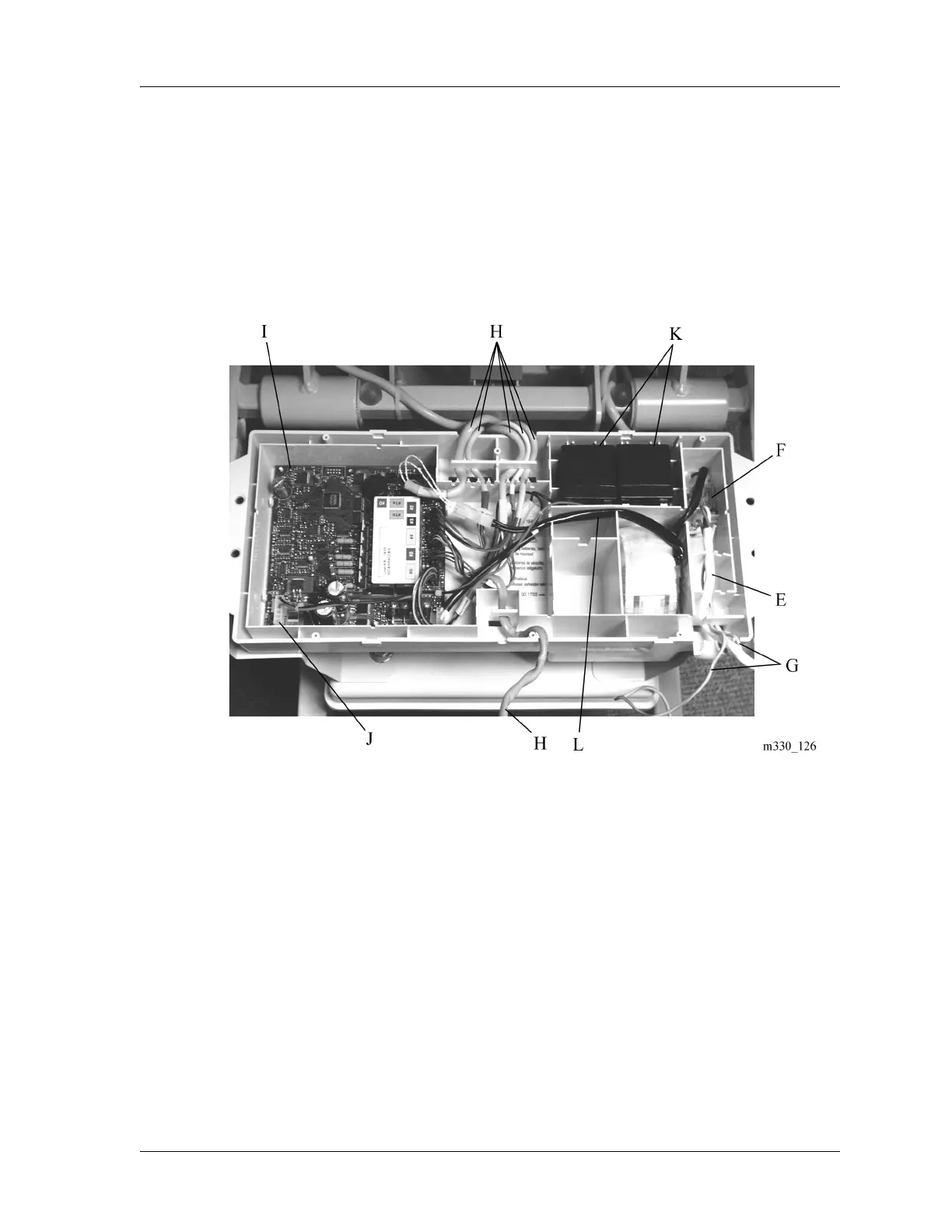

Figure 4-4. Cable Routing
8. Disconnect the cables (H) from the power supply P.C. board (I).
9. Disconnect the two ground wires (G) from the fuse board (F).
10. Disconnect the battery cable (J) from power supply P.C. board (I).
11. Disconnect the transformer power supply cable (L) from the interface P.C.
board cable.
12. Remove the batteries (K).
13. Remove the power supply (D) from the bed (see figure 4-3 on page 4-9).

Hill-Rom CareAssist P1170 Specifications

General

Model	CareAssist P1170
Type	Hospital Bed
Weight Capacity	500 lbs (227 kg)
Trendelenburg Position	Yes
Reverse Trendelenburg Position	Yes
Battery Backup	Yes
Frame Material	Steel
Knee Gatch	Yes
Head Section	Adjustable
Foot Section	Adjustable
CPR Release	Yes
Overall Width	39 in
Height Range	15 in to 30 in
Side Rails	Yes
Power Source	Electric
Mattress Type	Foam or Air
Patient Controls	Yes
Wheels	Locking Casters
Warranty	Varies
Overall Length	88 inches (223.5 cm)
