4.23 Siderail Top Cane
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 52 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)
4.23 Siderail Top Cane
Tools required: Phillips head screwdriver
Removal
1. Raise the siderail (A) to its up and locked position (see figure 4-23 on page
4-52).
2. Remove the two screws (B) that attach the top cane (C) to the siderail (A).
3. Remove and discard the top cane (C).

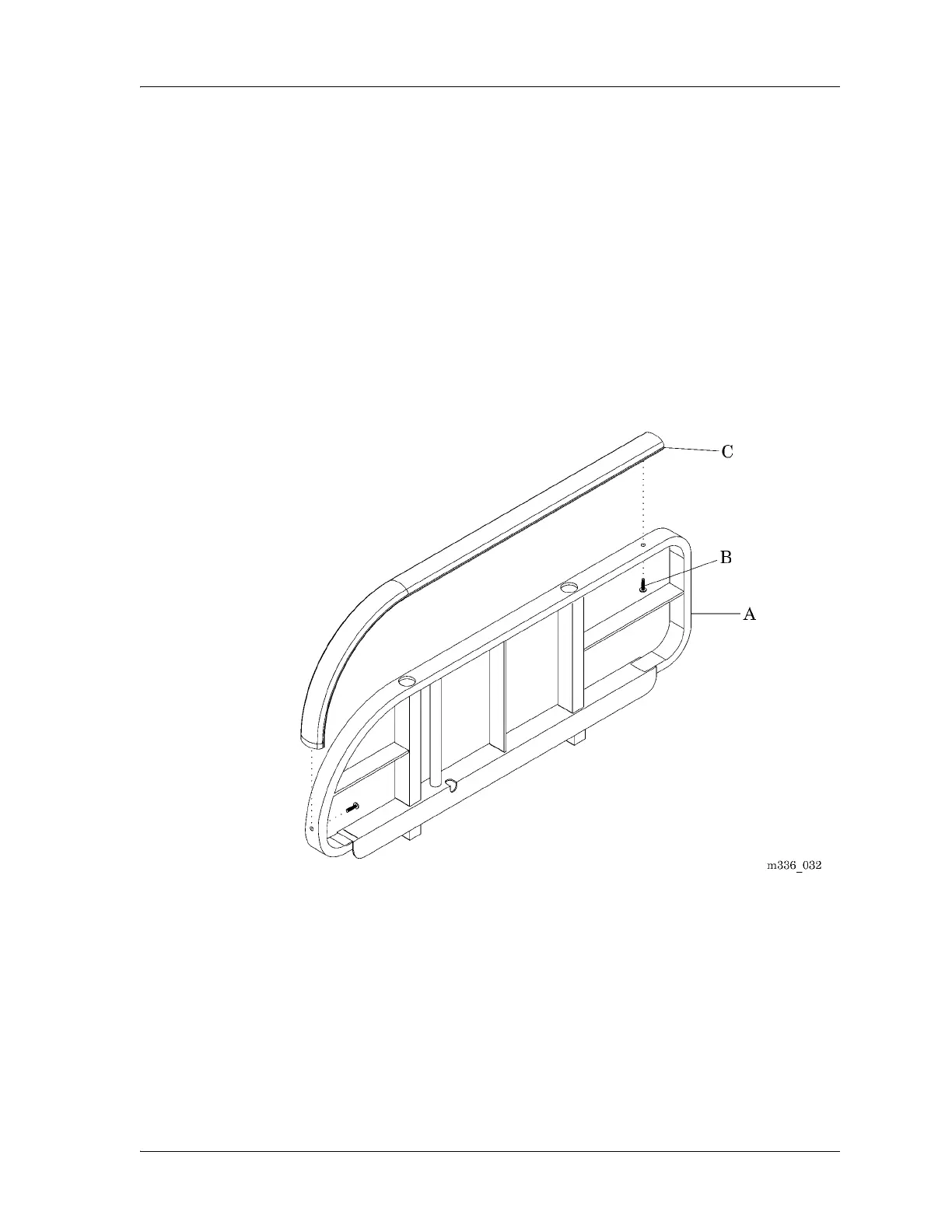

Figure 4-23. Siderail Top Cane
Replacement
1. Do the removal procedure in the reverse order.
2. Do the “Function Checks” on page 2-2.
032
