7.3 Fracture Frame Adapter—P847B and P847C
Chapter 7: Accessories
Page 7 - 6 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)
7.3 Fracture Frame Adapter—P847B and P847C
Tools required: None
Hill-Rom has two different fracture frame adapters available to handle most
fracture frame equipment. The model P847B sockets have a 3/4" inside
diameter, while the P847C sockets have a 1/2" inside diameter. Please specify
which size is necessary when ordering.
Installation
1. Put the short adapter tubes (A) into the IV sockets (B) at the head end of
the bed (see figure 7-3 on page 7-6).

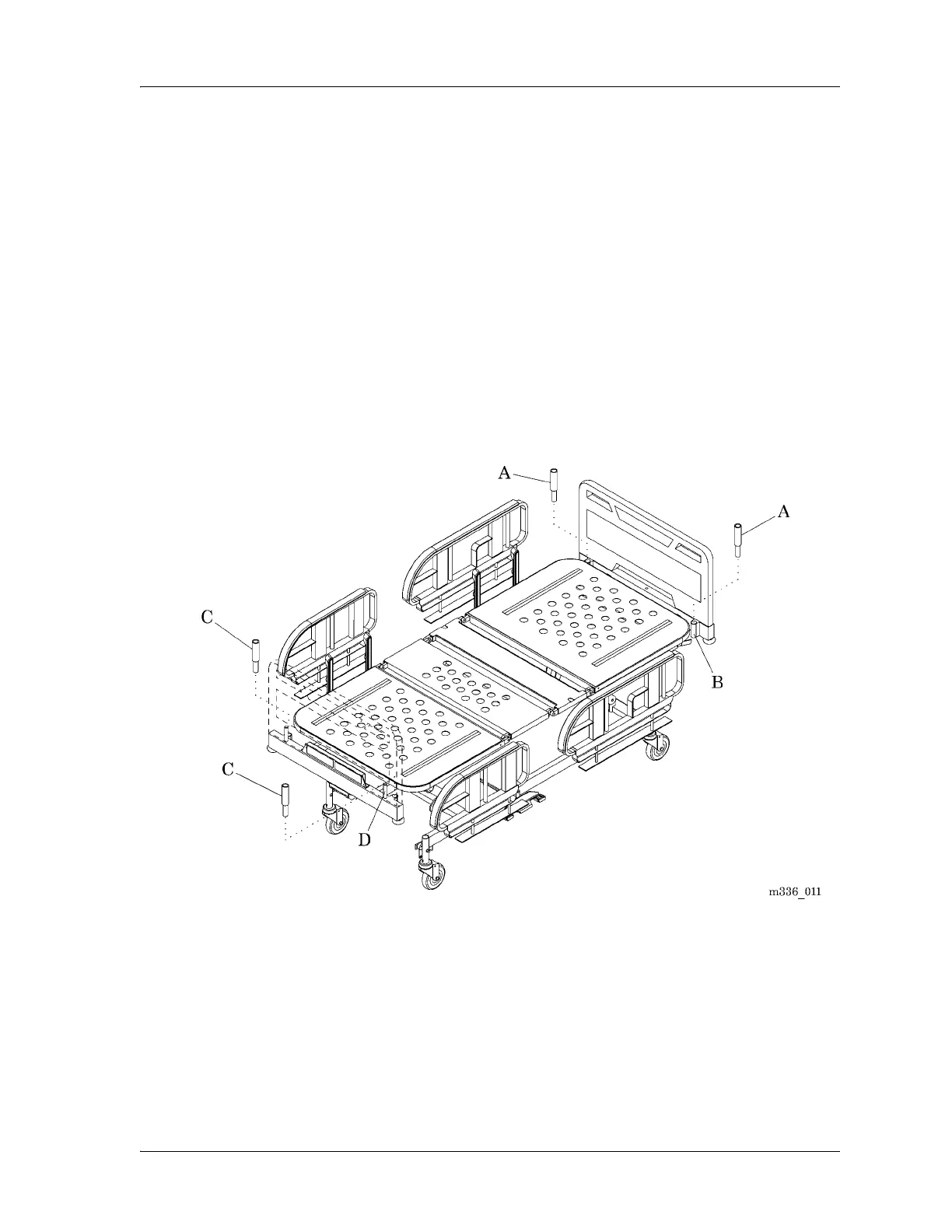

Figure 7-3. Fracture Frame Adapter—P847B and P847C
2. Put the long adapter tubes (C) into the IV sockets (D) at the foot end of the
bed.
Removal
1. Lift the short adapter tubes (A) upward from the IV sockets (B) at the head
end of the bed to remove the short adapter tubes (A).
