4.18 Siderail Retraction Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 42 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)
4.18 Siderail Retraction Assembly
Tools required: 4 mm hex wrench
4 mm T-handle hex wrench
Phillips head screwdriver
Screwdriver
Removal
1. Raise the bed to the highest position.
2. Lower the siderail (A) to the down position (see figure 4-18 on page 4-42).

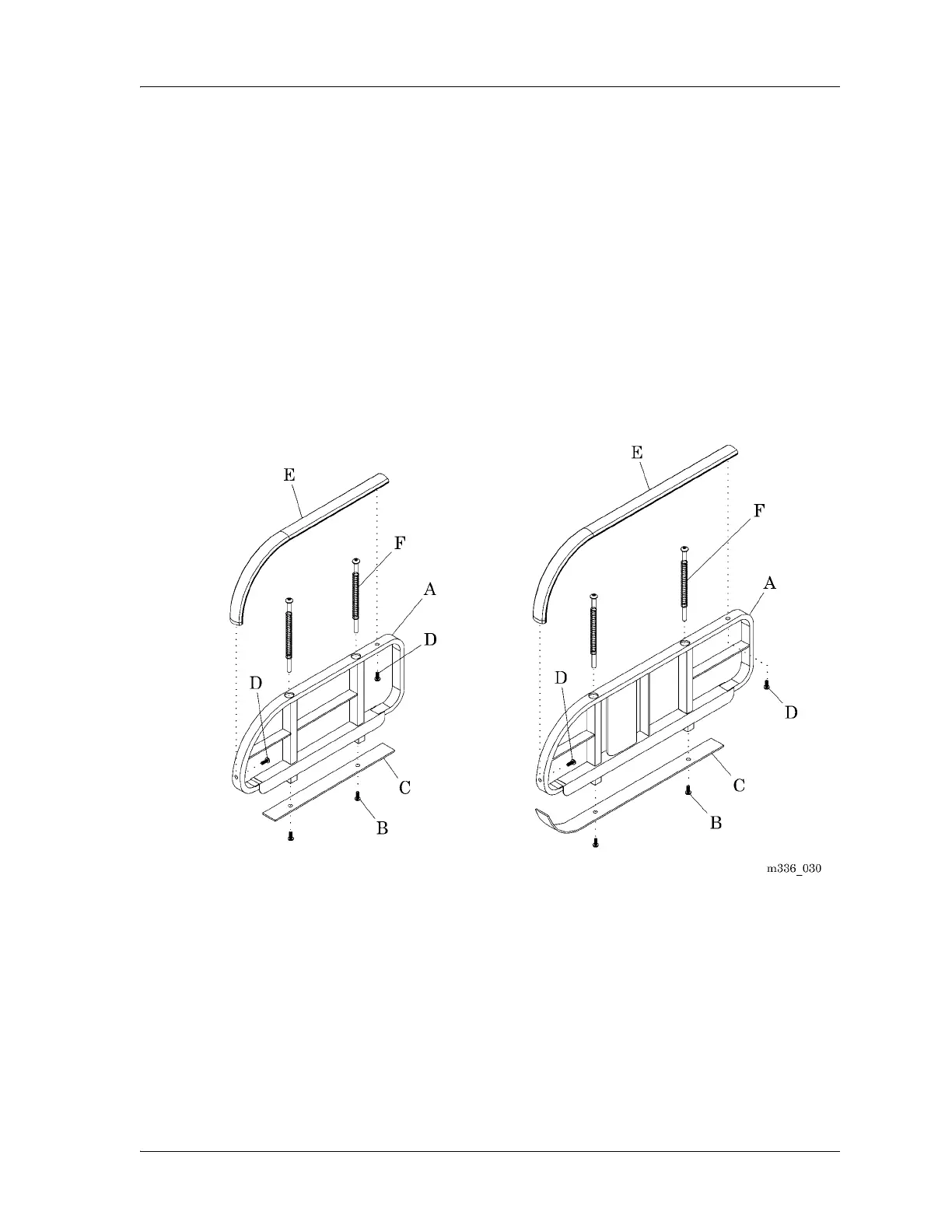

Figure 4-18. Siderail Retraction Assembly
3. Remove the two screws (B) that attach the lower bar (C) to the siderail (A).
The spring assemblies will move up suddenly, and hit the top cane.
