7.2 Trapeze Support—P846F
Chapter 7: Accessories
Page 7 - 4 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)
7.2 Trapeze Support—P846F
Tools required: 3/8" socket
Drive ratchet
3/8" wrench
Installation
1. Install the four bolts (A) and two backing plates (B) to attach the trapeze
support (C) on the bed frame (D) (see figure 7-2 on page 7-4).

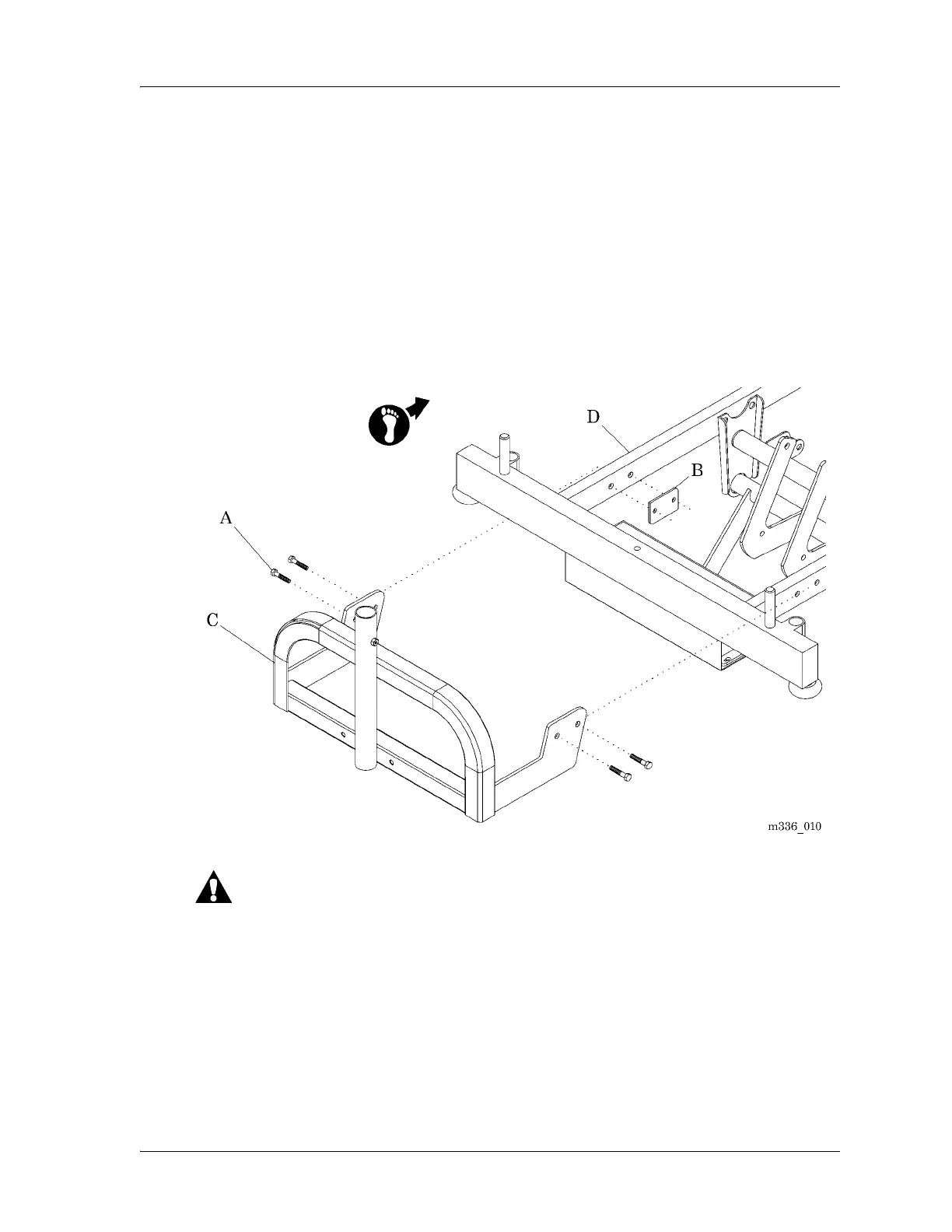

Figure 7-2. Trapeze Support
Do not lower the bed frame while the trapeze support assembly is
attached to the bed. Use the lockout on the foot end control panel to
turn off the hilow function. Equipment damage could occur.
2. Lock out the hilow function.
