4.9 Handset Control
Chapter 4: Removal, Replacement, and Adjustment Procedures
Resident
TM
LTC Bed Service Manual (man136rc) Page 4 - 31
4
4.9 Handset Control
Tools required: Diagonal cutters
Removal
1. Unplug the bed from its power source.
SHOCK HAZARD:
Unplug the bed from its power source. An electrical shock hazard
exists.
2. Disconnect the handset control cable from its connection (A) at the control
lockout box (see figure 4-23 on page 4-31).

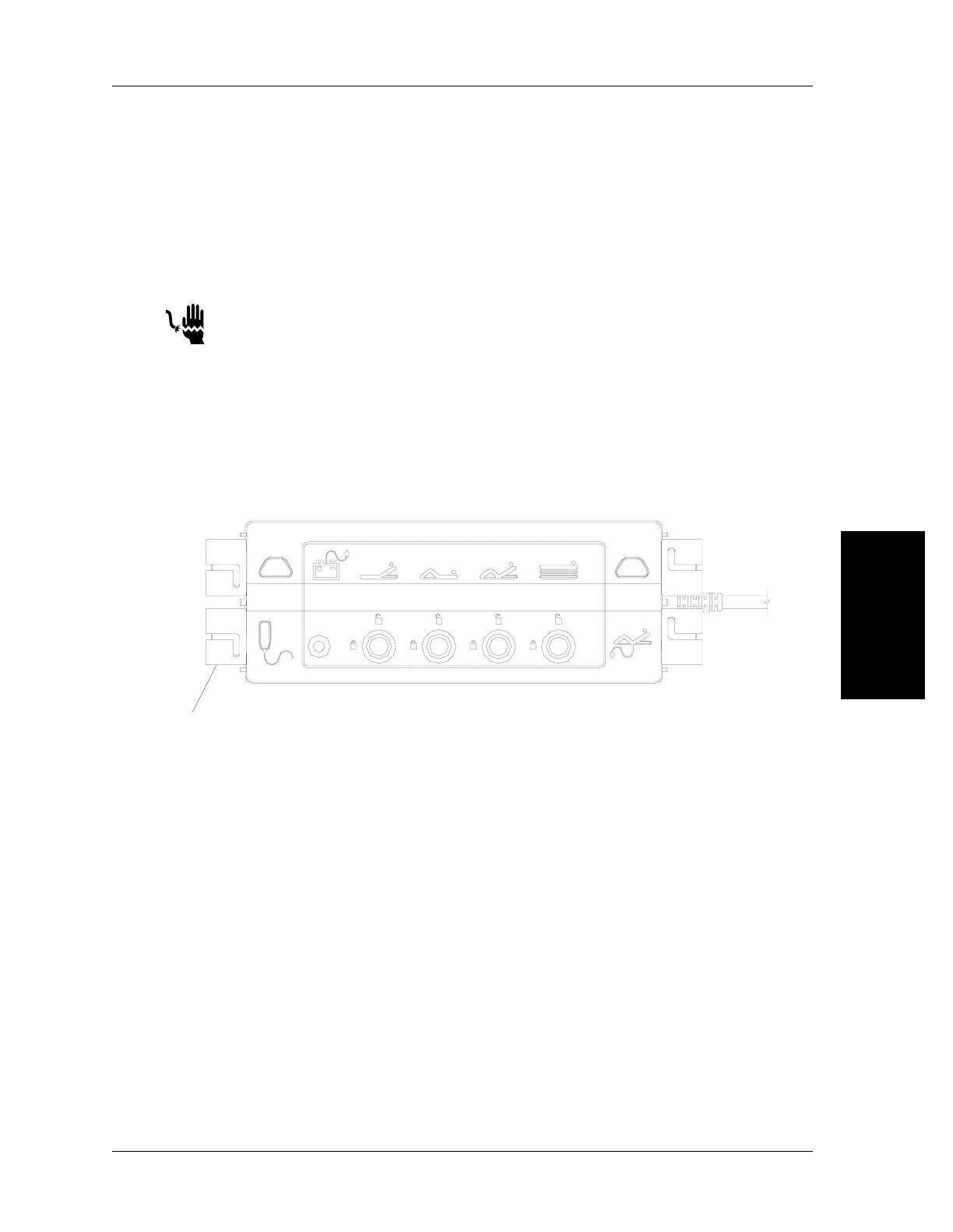

Figure 4-23. Location Of Handset Control Connection At Control Lockout Box
NOTE:
Record the cable routing and placement of cable ties for replacement purposes.
3. Remove the attached cable ties.
4. Remove the handset control and the attached cable as an assembly.
Replacement
1. Assemble in reverse order.
2. Ensure that the connected cable is properly routed and connected to the
control lockout box.
A
m136_070
