7.5 Full Length Siderails (P867)
Chapter 7: Accessories
Resident
TM
LTC Bed Service Manual (man136rc) Page 7 - 9
7
7.5 Full Length Siderails (P867)
Full length siderails are available as an accessory to replace the existing head
and knee siderails. When these siderails are used, only the handset control is
used to operate the hilow, head, and knee functions.
Installation
Tools required: 1/2" socket Drive ratchet
1/2" wrench
1. Remove the hole plugs from both sides of the lower frame at the head and
foot end of the bed (at the locations where the full length siderails will
mount).
2. Rotate the arms and mounting brackets (B) of the full length siderails to the
up position (see figure 7-5 on page 7-9).

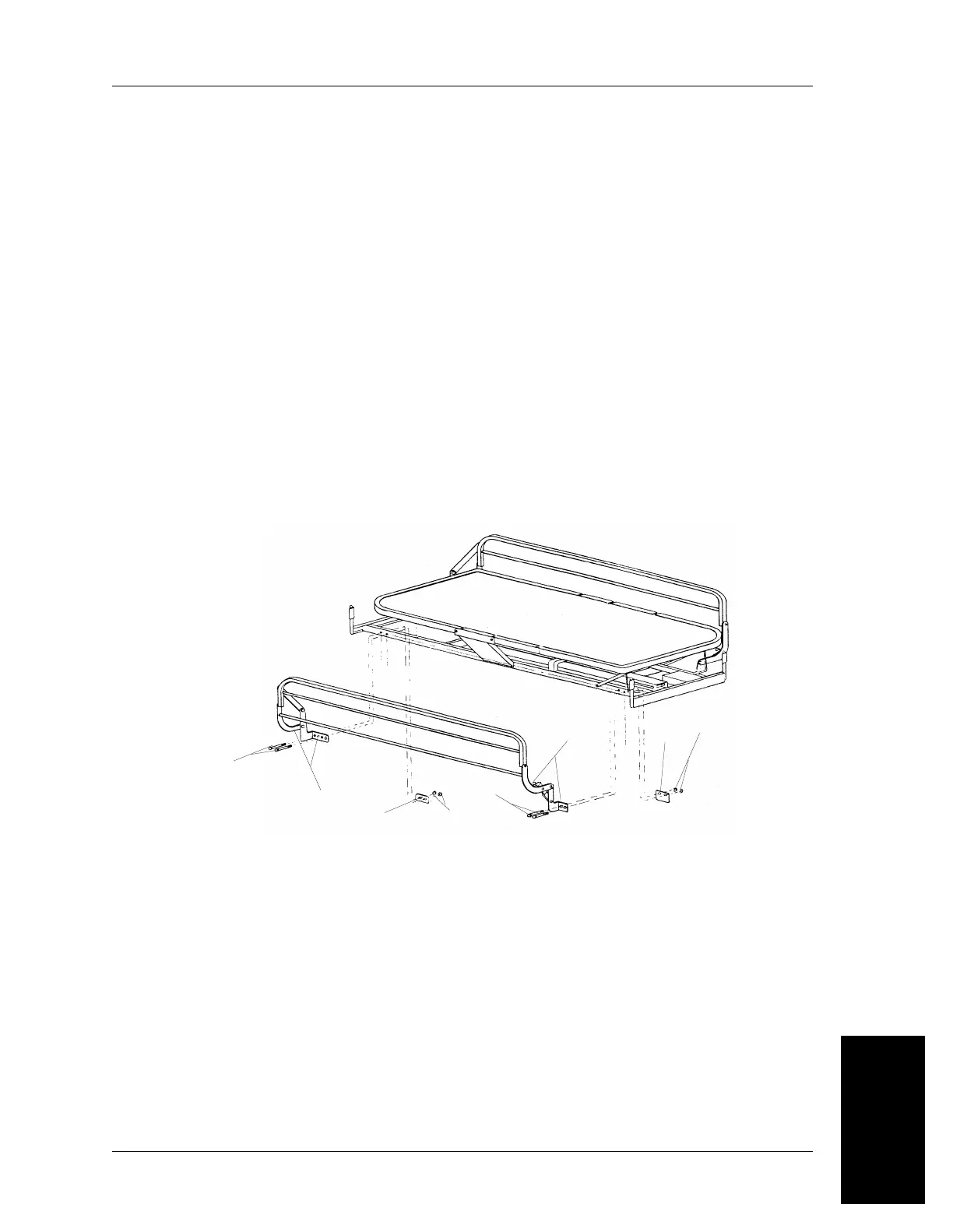

Figure 7-5. Full Length Siderails—P867
3. Position the siderail to the bed frame with the latch end of the siderail at the
foot end of the bed.
4. Position the mounting brackets of the siderail against the side of the lower
frame while aligning the holes in the brackets with the holes in the frame.
5. Insert the hex head screws (A) through the mounting brackets and the holes
in the lower frame.
A
B
C
D
A
B
C
D
m136_038
