▶ Always set the fastening tool on smooth, flat surfaces free of obstructions and fully supported by the
sub-structure.
▶ Comply with the specifications for edge distances and center-to-center distances (see the section
headed 'Minimum distances and edge distances → page 24').
Thermal safety rules
▶ Do not exceed the maximum fastener driving rate recommended in the section headed "Technical data".
▶ If the fastening tool overheats or if the cartridge strip deforms or melts, remove the cartridge strip and
allow the fastening tool to cool down.
▶ Do not dismantle the fastening tool while it is hot. Allow the fastening tool to cool down.
Risk of explosion with cartridges
▶ Use only cartridges that are suitable and approved for use with the fastening tool.
▶ Remove the cartridge strip when you are going to take a break and when you have finished the job, and
before you transport the fastening tool.
▶ Do not use force to remove fasteners and/or cartridges from the magazine strip or the fastening tool.
▶ Store unused cartridges in accordance with the storage specifications for PAT cartridges (e.g. dry,
temperature between 5 °C and 25 °C) in a locked storage facility. Follow the instructions for storage in
the safety data sheet of the cartridges.
▶ Do not leave unused or partly used cartridge strips lying around. Collect the used cartridge strips and
store the cartridge strips at a suitable location (see also 'Storage of unused cartridges').
3 Description

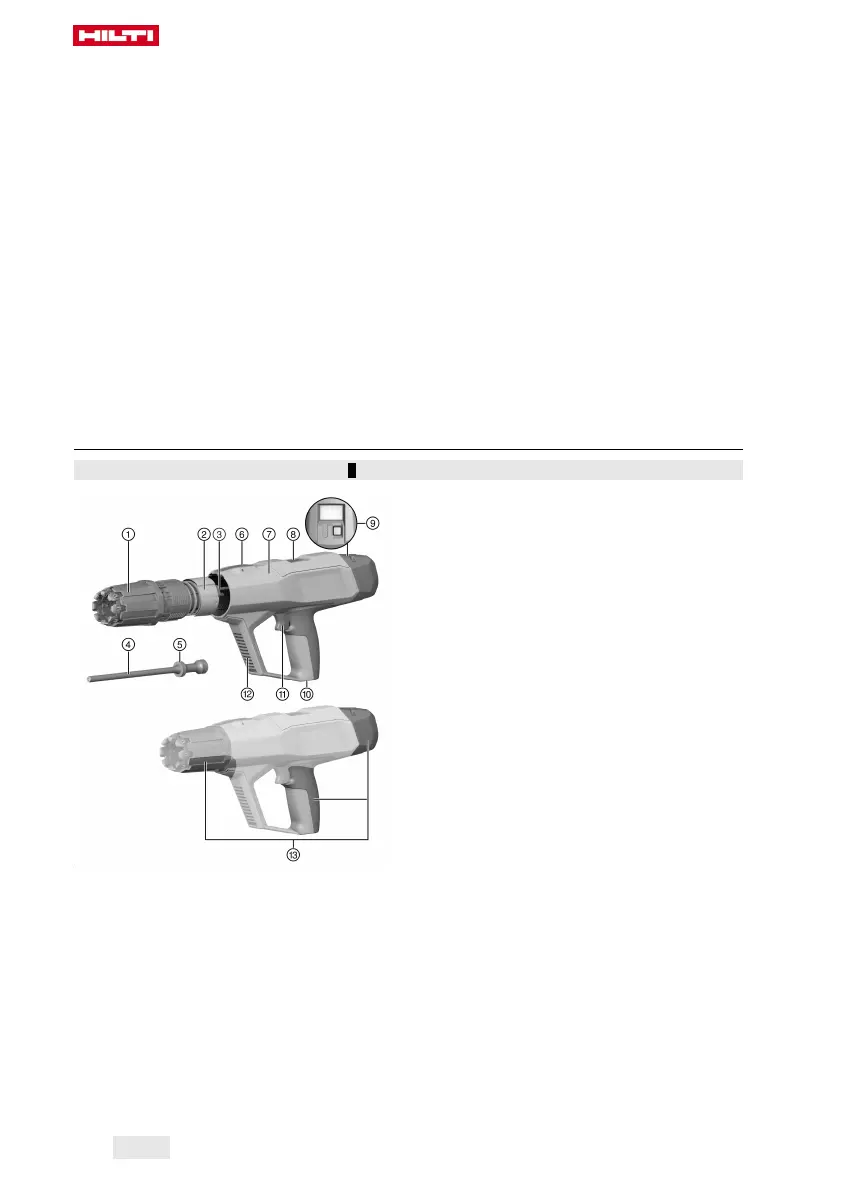

3.1 Product overview (fastening tool) 1
@
Selector ring for driving energy
;
Guide sleeve
=
Exhaust gas piston return unit
%
Piston
&
Piston rings
(
Release button for selector ring for driving
energy
)
Housing
+
Cartridge barrel (ejection)
§
Operating button at display
/
Cartridge barrel (insertion)
:
Trigger
∙
Air vents
$
Grip surfaces
