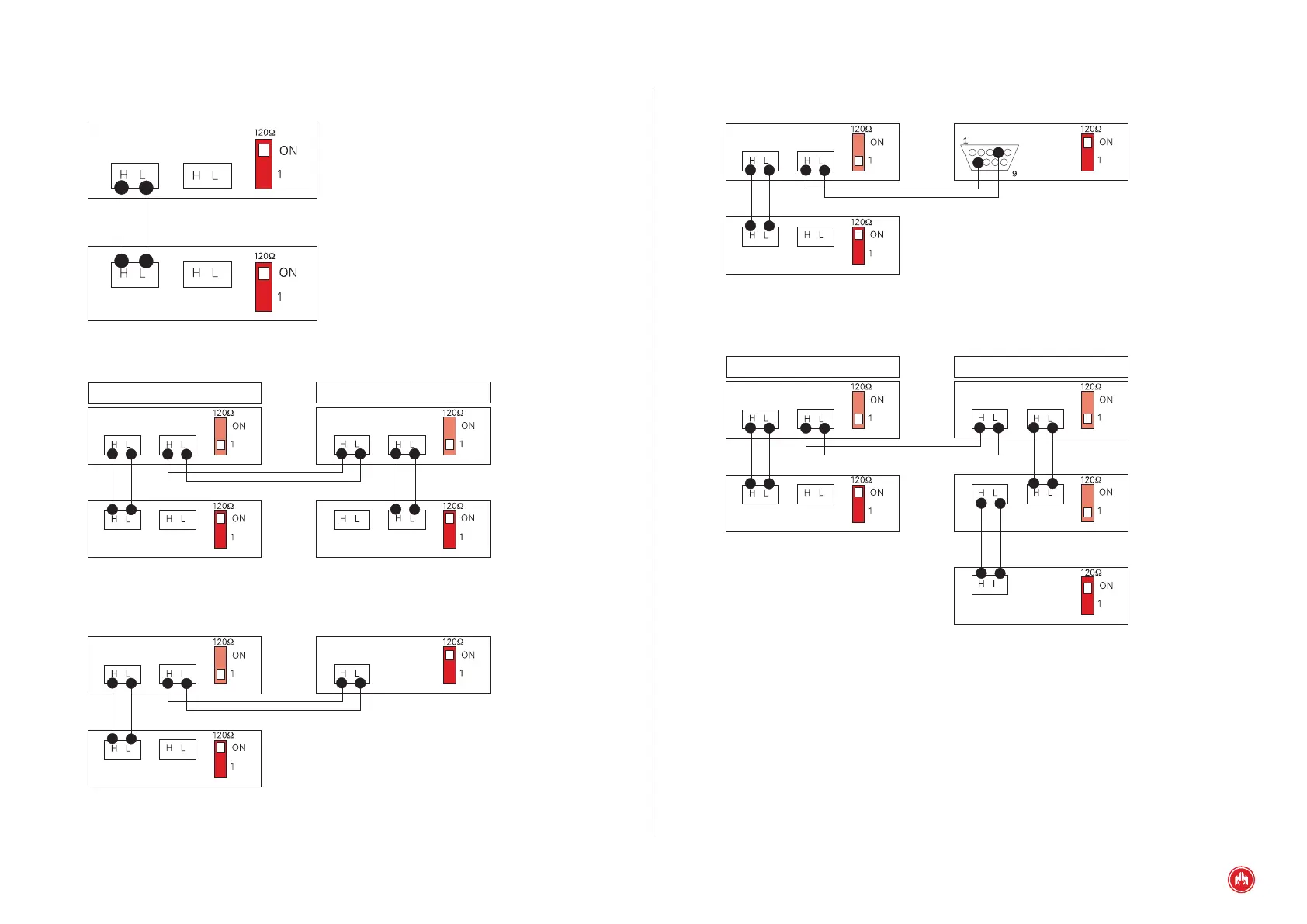

(APPENDIX III) DIMENSIONS, WIRING AND MECHANICAL PARTS | PAGE 104
For proper protection of the equipment, the following elements must be installed
in the electrical panel:
Fuses Amps
F0 General Positive Power 40
F1 Digital Automatic Control Unit CEM7 4
F2 Phase U 2
F3 Phase V 2
F4 Phase W 2
F5 Differential Relay + Tripping Coil 2
F6 Battery Charger 4
F7 Fuel Transfer Kit 10
The negative terminal of the battery, the chassis of the electrical panel and the
chassis of the generator set must all be earthed.
