Installing a Battery Pack

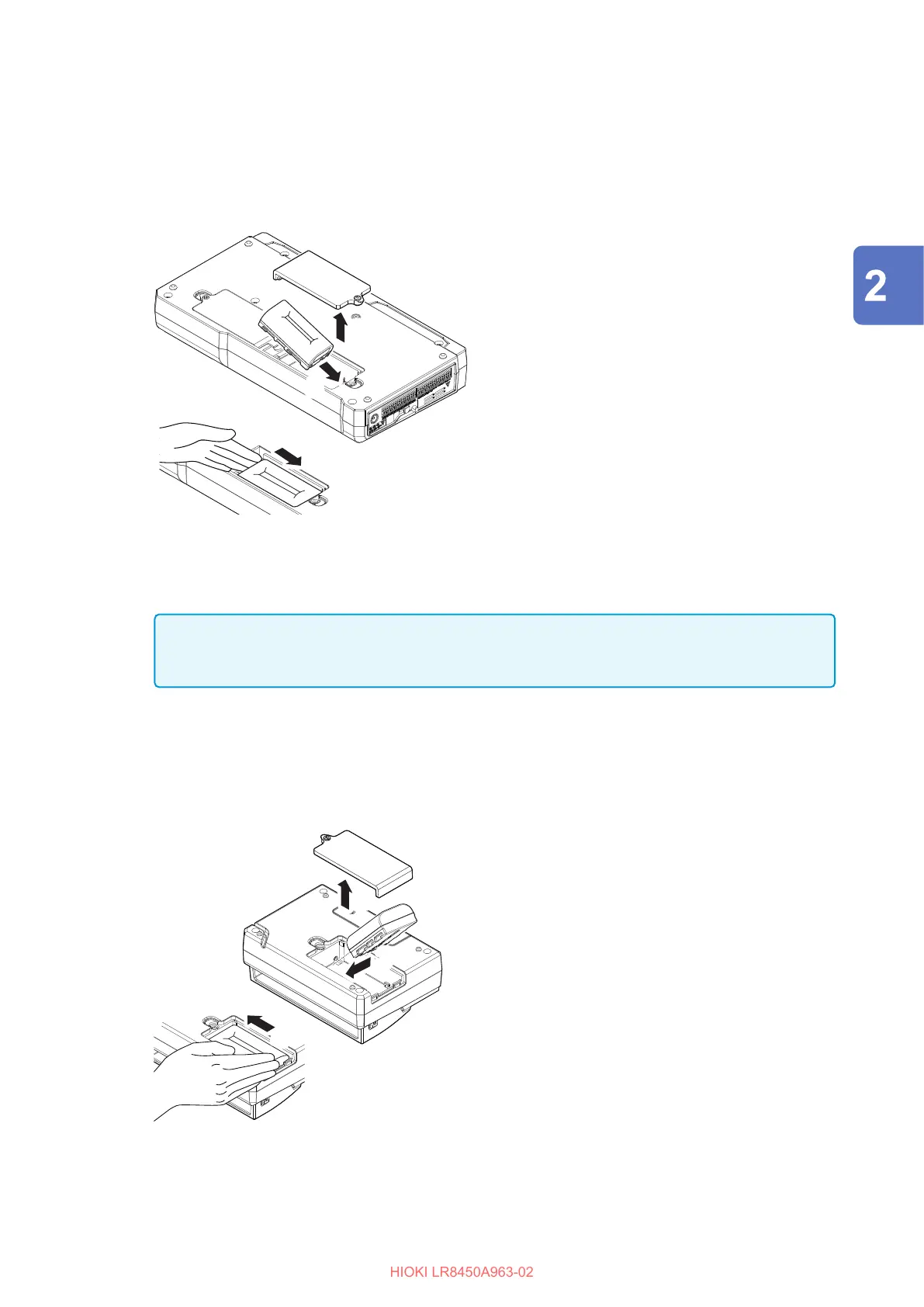

Installing the Battery Pack in the instrument
The instrument can accommodate two Z1007 Battery Packs.
One Battery Pack may be used alone.
You will need: Z1007 Battery Pack and a Phillip’s head screwdriver (No. 2)
22
33
44
1
Turn o󰀨 the instrument and disconnect the
AC Adapter and cable.
2
Loosen the screw on the battery
compartment on the rear of the instrument
and remove the cover.
3
Insert the Battery Pack so that its terminals
are aligned with the pins on the instrument.
4
Insert the Battery Pack and slide it into
place.
5
Reattach the cover and tighten the screw.
IMPORTANT
When using two Battery Packs, replace both at the same time. If you replace only one Battery
Pack during use, the remaining battery life may not be detected correctly.
Installing the Battery Pack in a wireless module
You will need: Z1007 Battery Pack and a Phillip’s head screwdriver (No. 2)
22
33
44
1
Turn o󰀨 the instrument and disconnect the
AC Adapter and cable.
2
Loosen the screw on the battery
compartment on the rear of the wireless
module and remove the cover.
3
Insert the Battery Pack so that its terminals
are aligned with the pins on the wireless
module.
4
Insert the Battery Pack and slide it into
place.
5
Reattach the cover and tighten the screw.
