Hioki MEMORY HiLOGGER LR8450 Quick Start Manual

59

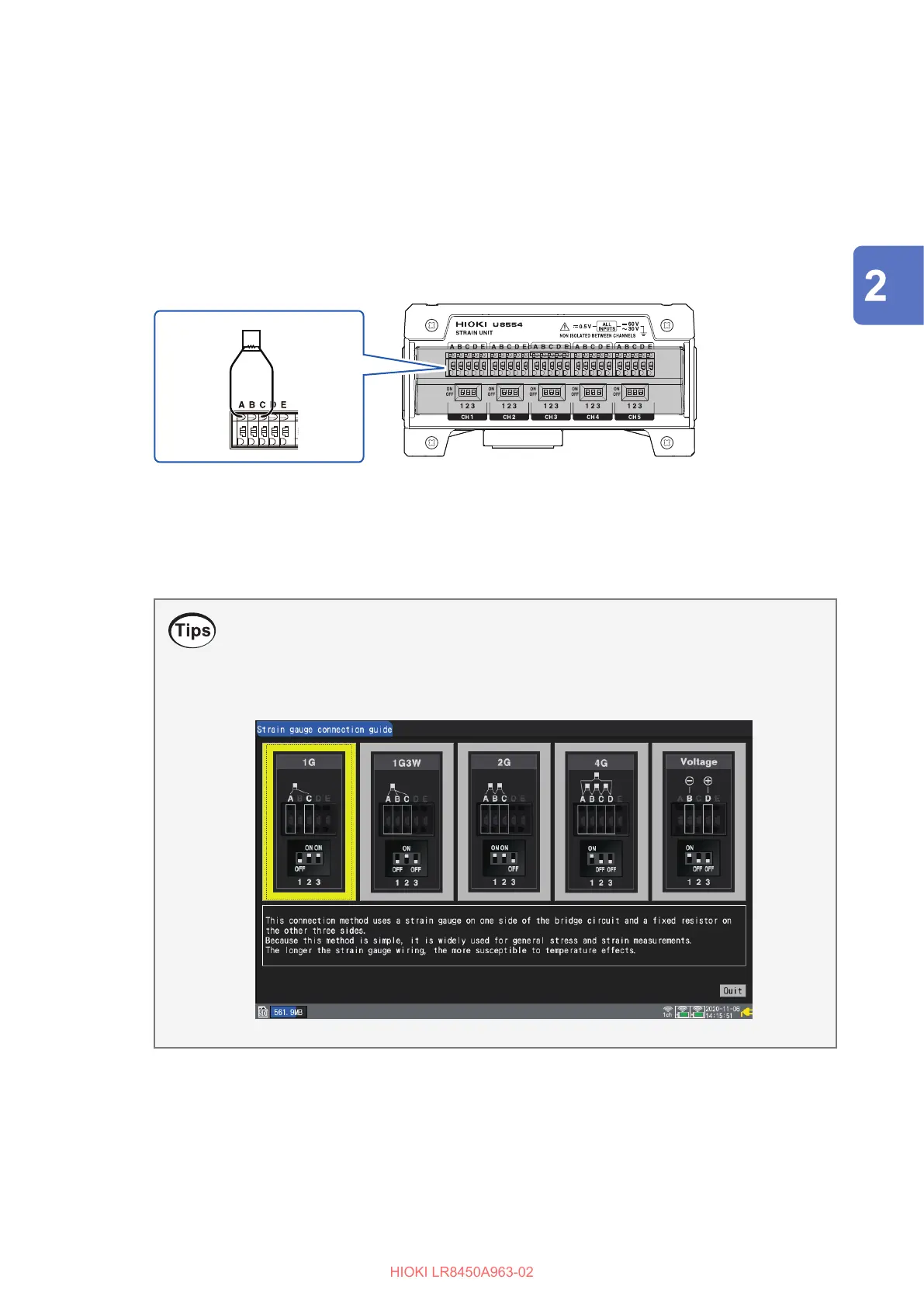

Connecting the Cables
1
Open the terminal block cover.
2
Set the DIP switch depending on the connection method.
See “Setting the DIP switches for input connections” (p. 60).
3
Press down on the terminal button with the at-head screwdriver.
4
Insert the cable into the terminal hole while depressing the button.
Example: 1-gage method (2-wire setup
)
5
Remove the at-head screwdriver from the button.
The cable will be locked in place. Pull gently on the cable and verify that it does not come out.
6
Close the terminal block cover.
How to display the strain gage connection guide

Press the QUICK SET key, and choose [Strain gauge connection guide]. The strain
gage connection diagrams will be displayed.
See “1.15 Conguration Navigator (Quick Set)” in the Instruction Manual.
Making Connections (Preparing for Measurement)
HIOKI LR8450A963-02
