Hope Electronics Technology Manual Edition V1.0 59

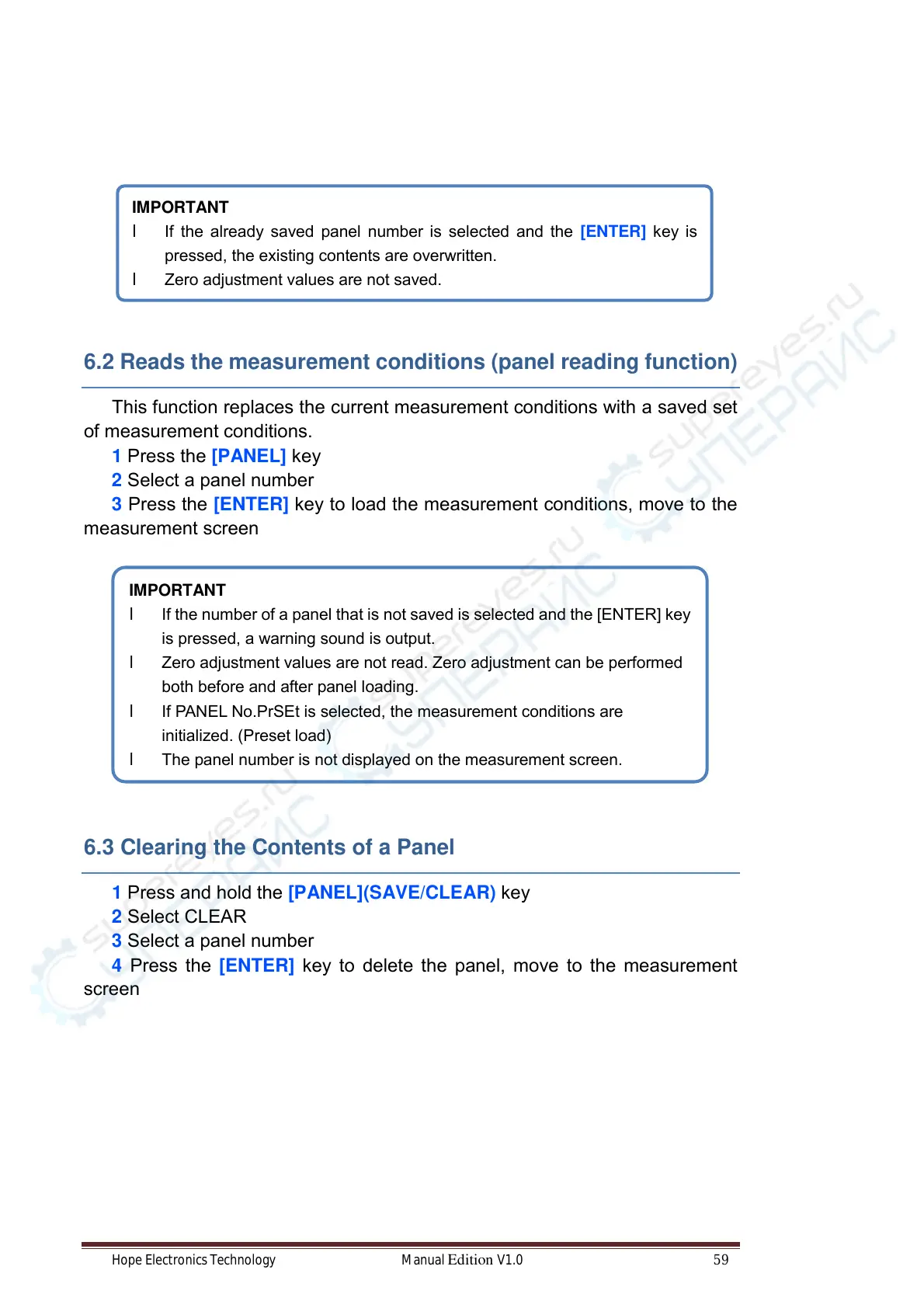

6.2 Reads the measurement conditions (panel reading function)
This function replaces the current measurement conditions with a saved set
of measurement conditions.
1 Press the [PANEL] key
2 Select a panel number
3 Press the [ENTER] key to load the measurement conditions, move to the
measurement screen
6.3 Clearing the Contents of a Panel
1 Press and hold the [PANEL](SAVE/CLEAR) key
2 Select CLEAR
3 Select a panel number
4 Press the [ENTER] key to delete the panel, move to the measurement
screen
IMPORTANT
l If the already saved panel number is selected and the [ENTER] key is
pressed, the existing contents are overwritten.
l Zero adjustment values are not saved.
IMPORTANT
l If the number of a panel that is not saved is selected and the [ENTER] key
is pressed, a warning sound is output.
l Zero adjustment values are not read. Zero adjustment can be performed
both before and after panel loading.
l If PANEL No.PrSEt is selected, the measurement conditions are
initialized. (Preset load)
l The panel number is not displayed on the measurement screen.
