System Description
© Hirschmann Rev. E 11/12/08 190147_E
7

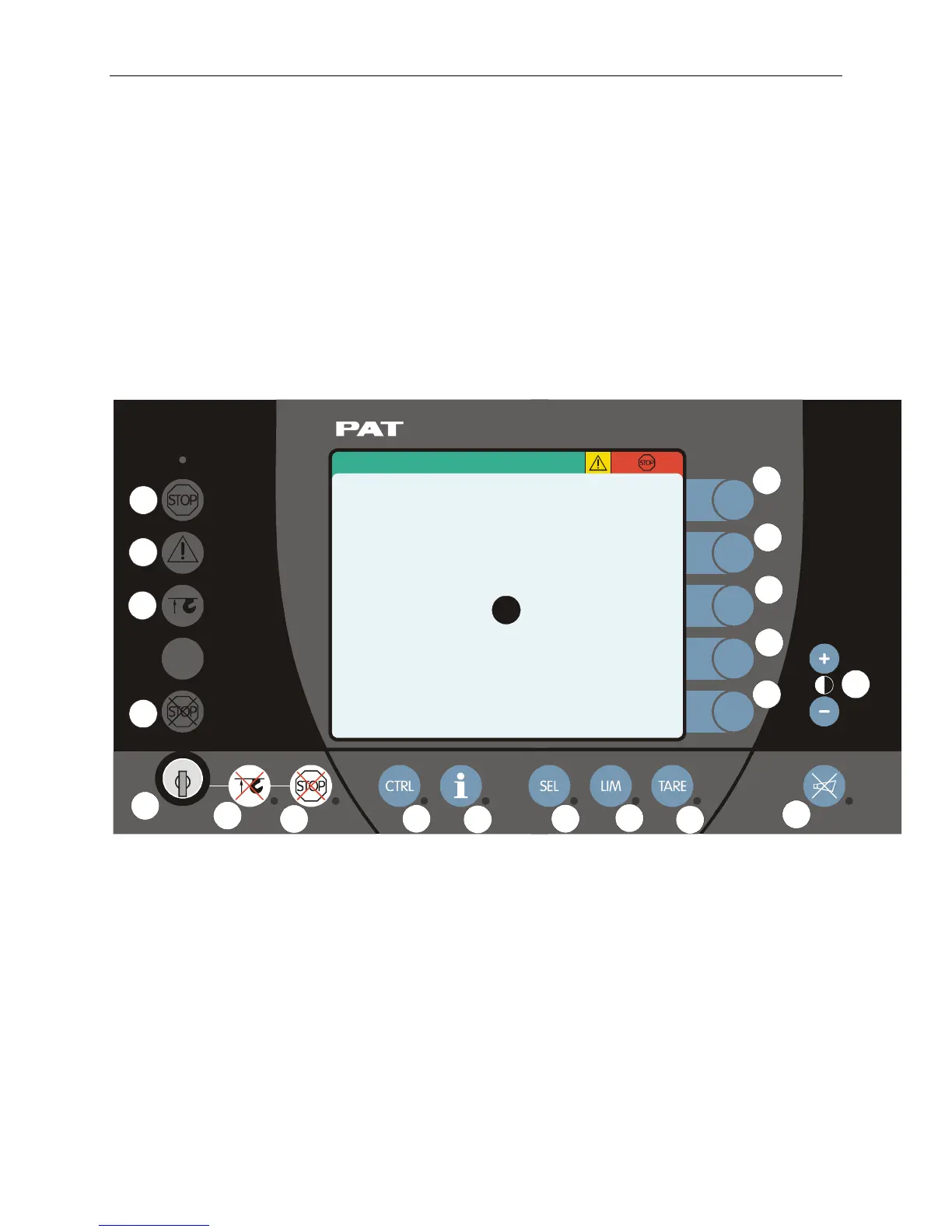

Fig. 2b: Operating Console (horizontal)
1 LC Display Area 10 Button and Control Light "INFO"
2 Load Moment Limit Light 11 Button and Control Light "CONTROL"
3 Load Moment Prewarning Light 12 By-Pass Key Switch
4 Alarm Light “Anti-Two-Block” 13 Button and Control Light "By-Pass Anti-Two-Block"
5 Override Key Warning Light 14 Button and Control Light "By-Pass LMI shut-off
function"
6 Button “Alarm Stop” 15 Contrast Control
7 Button and Control Light “TARE” F1 Button "Function 1"
8 Button and Control Light “LIMITS” F2 Button "Function 2"
9 Button and Control Light “SELECT F3 Button "Function 3"
OPERATING MODE” F4 Button "Function 4"
F5 Button "Function 5"
2
3
4
5
6
7
8
10
11
12
13
14
15
F1
F2
F3
F4
F5
9
1
