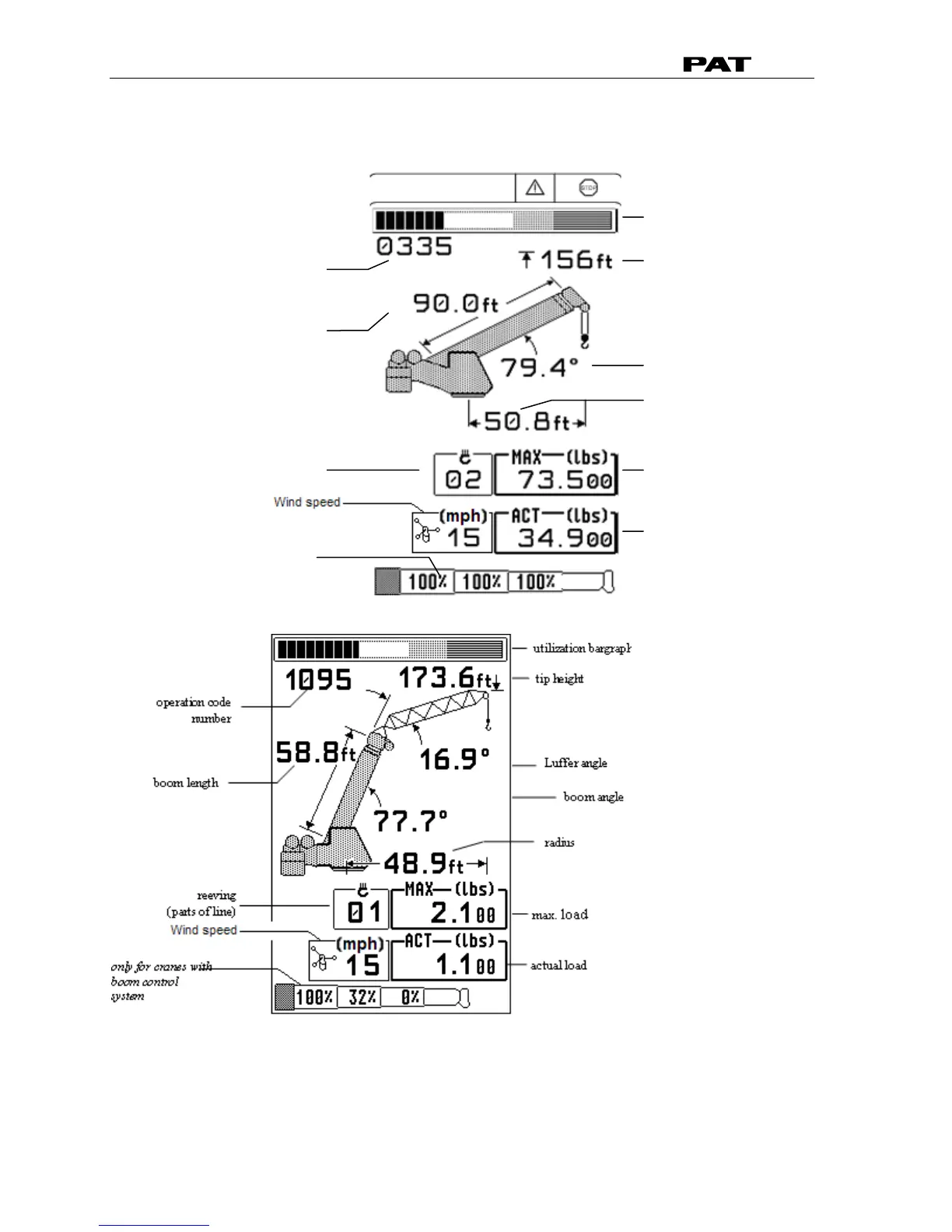

After having set the LMI to the actual crane configuration, the system is ready for operation. The
display shows the LMI screen (example for value representation).
(The elements are the same on the horizontal display – but in a different order.)
reeving
(parts of line)
operation code
numbe
r
boom length
tip height
boom angle
radius
max.
load
actual load
utilization bargraph
only for cranes
with boom control
system
