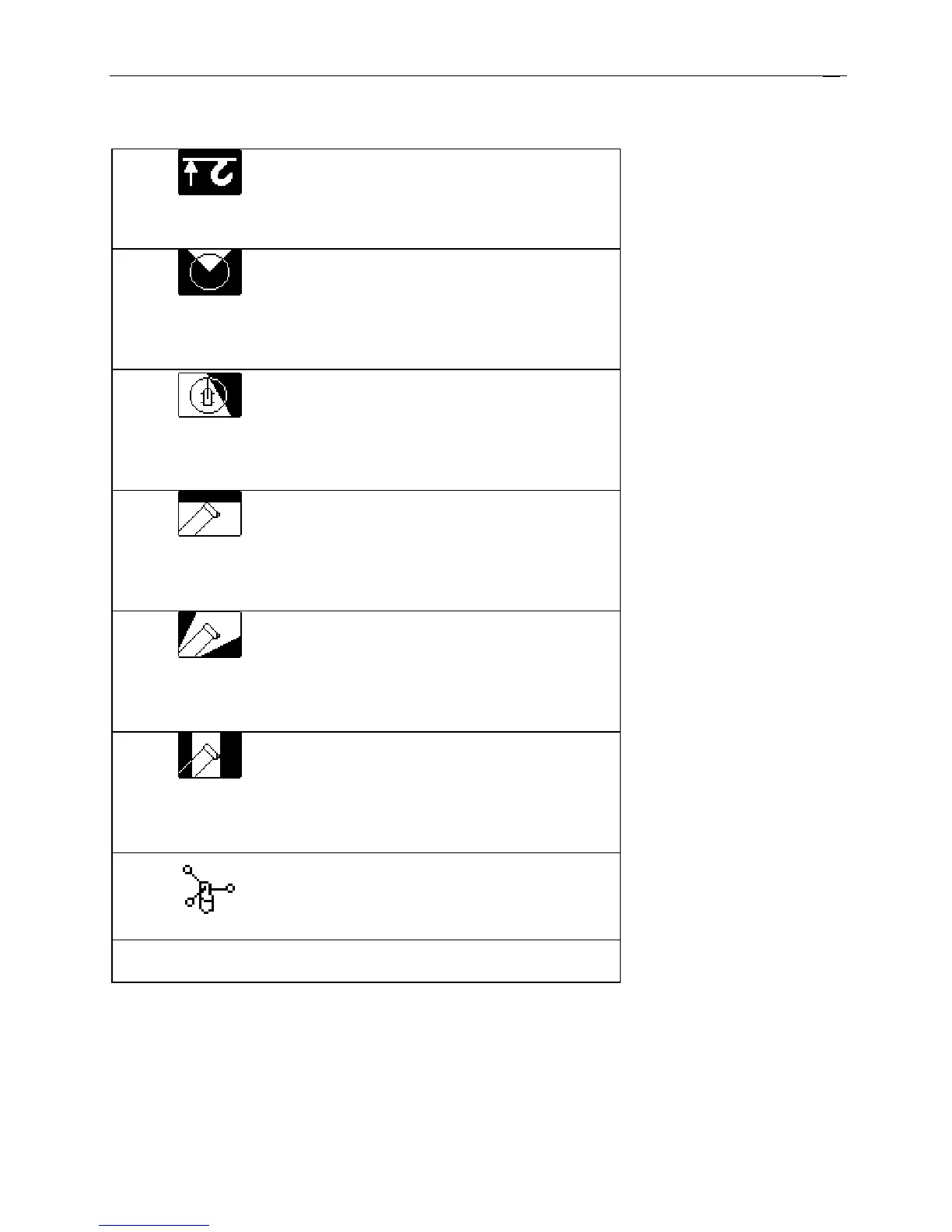

Upon request, further symbols can be shown on the display:
Symbol Anti-Two-Block Alarm
• visible when the anti-two-block limit
switch contacts open, indicating that
a two-blocking condition is
approaching.
Symbol slewing angle limitation:
• continuously visible:
slewing angle limitation active
•
blinking:
slewing angle limits exceeded
(⇒ see chapter 5.1.1.a)
Symbol work area definition:
• continuously visible:
work area definition active
•
blinking:
work area limits exceeded
(⇒ see chapter 5.1.1.b)
Symbol height limitation:
• continuously visible:
height limitation active
•
blinking:
height limit exceeded
(⇒ see chapter 5.1.2)
Symbol boom angle limitation:
• continuously visible:
boom angle limitation active
•
blinking:
angle limits exceeded
(⇒ see chapter 5.1.3)
Symbol radius limitation:
• continuously visible:
radius limitation active
•
blinking:
range limits exceeded
(⇒ see chapter 5.1.4)
Symbol wind speed:
• Continuously visible:
Wind speed value
(⇒ see chapter 5.1.5
E####
Error code No. ####
(⇒ see chapter 8 "Troubleshooting")
