Hirschmann MACH 4000 User Manual

Synchronizing the system time in the
Basic - L3P
Release 4.0 11/07
7.3 Precision Time Protocol
13

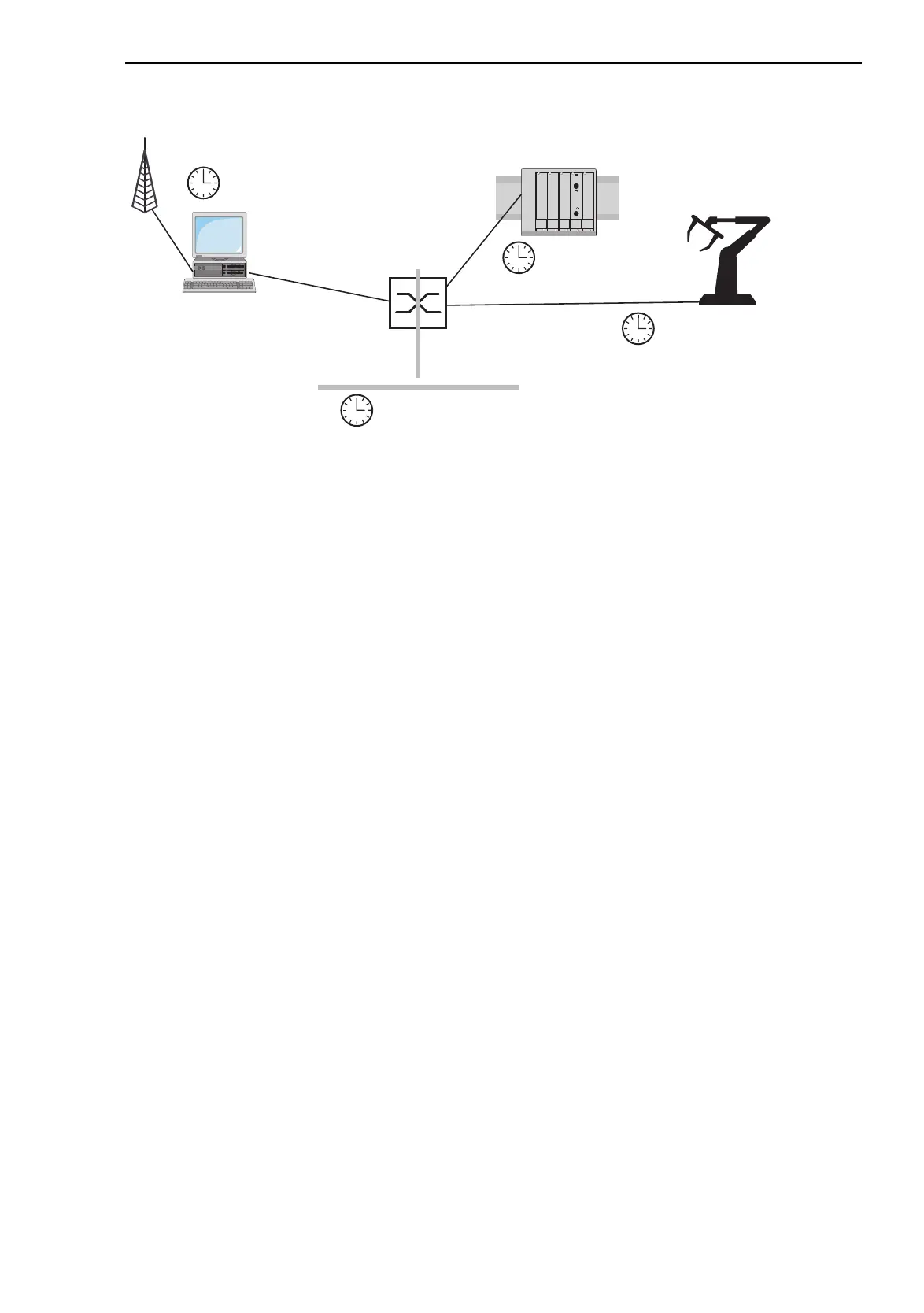

Figure 29: Boundary clock
Independently of the physical communication paths, the PTP provides logical
communication paths which you define by setting up PTP subdomains. Sub-
domains are used to form groups of clocks that are time-independent from
the rest of the domain. Typically, the clocks in a group use the same commu-
nication paths as other clocks.
GPS
Reference
(Grandmaster Clock)
MasterSlave
Boundary Clock
Ordinary Clock
Ordinary Clock
Switch
PLC
