Operation diagnosis
Basic - L3P
Release
4.0
11/07
9.6
Displaying the SFP status
17
9.6 Displaying the SFP status
The SFP status display allows you to look at the current connections to the
SFP modules and their properties. The properties include:
X module type
X support provided in media module
X temperature in degrees Celsius
X transmission power in milliwatts
X reception power in milliwatts
Select the Diagnostics:Ports:SFP Modules dialog.

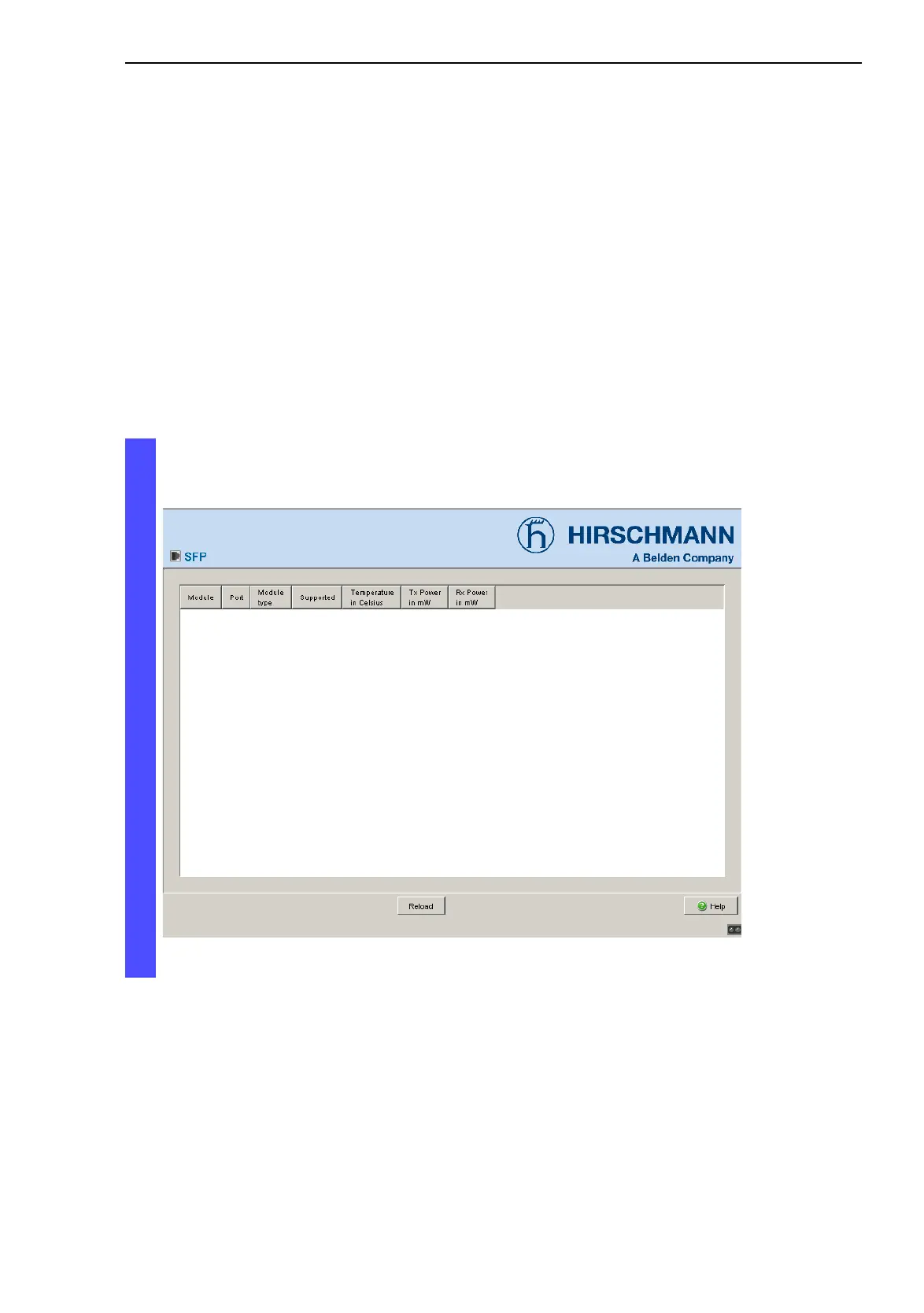

Figure 56: SFP Modules dialog
