Hirschmann MACH104-20TX-FR Series User Manual

Installation MACH104
Release 08 01/2019
17
1.2.2 MACH104-20TX-FR...: Devices with 24 GB ports and
redundant power supply
 MACH104-20TX-FR...
 4 Gigabit Ethernet combo ports
 20 Gigabit Ethernet ports
 The power supply is designed redundantly.

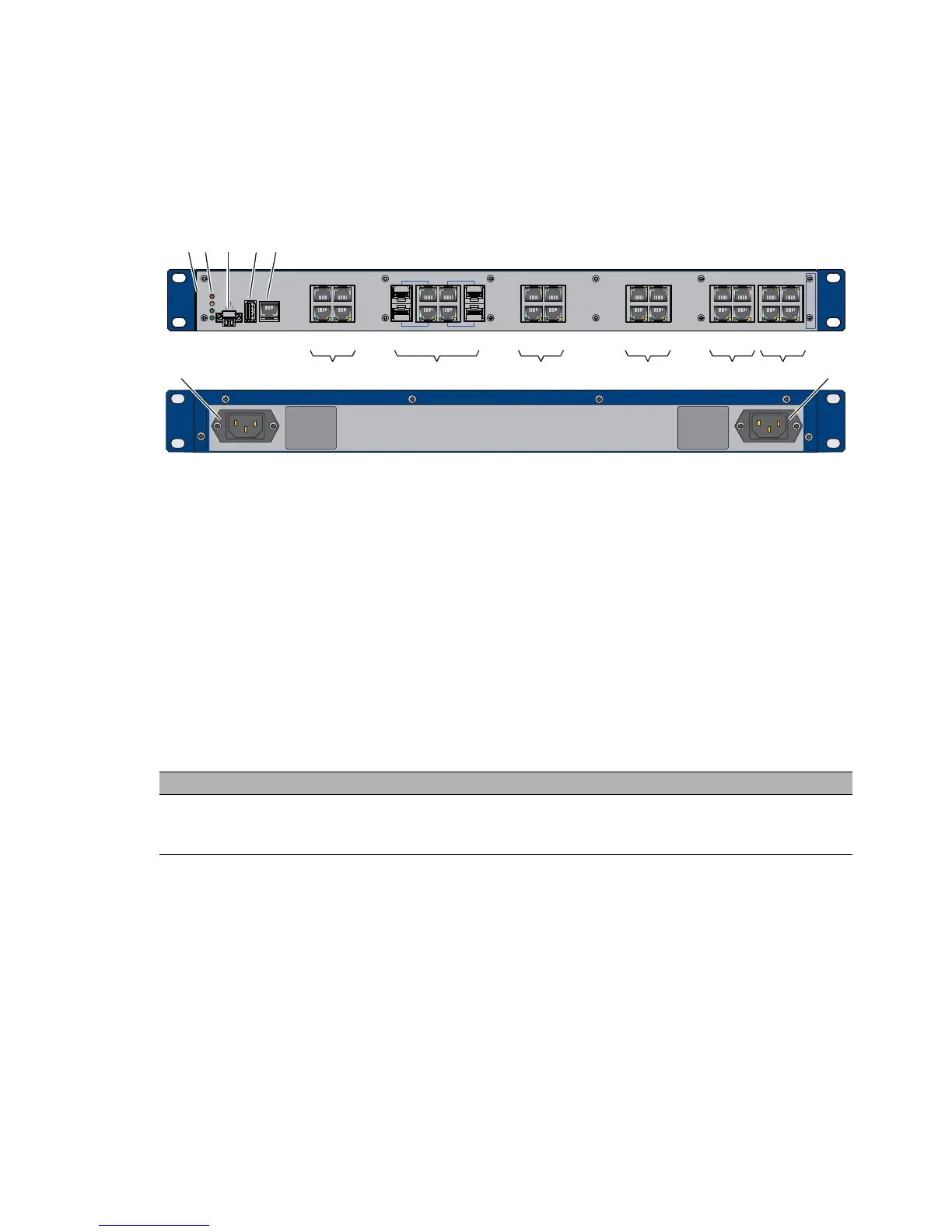

Figure 2: Overview over interfaces, display and operating elements
of the MACH104-20TX-FR...
1 - MACH104-20TX-FR... device
2 - LED display elements
3 - Signal contact
4 - USB interface
5 - V.24 interface for external management
6 - See the following table, column 1
7 - See the following table, column 2
8 - P1: Power supply connection (on the back of the device)
9 - P2: Redundant power supply connection
(on the back of the device)
4 × Gigabit Ethernet ports 4 × Gigabit Ethernet combo ports
10/100/1000 Mbit/s twisted pair,
RJ45 sockets
100/1000 Mbit/s F/O, SFP slots
Alternatively:
10/100/1000 Mbit/s twisted pair, RJ45 sockets
6
7
5
13
911
13 15
17 19 21 23
8
6
24
10 12
14 16
18 20 22 24
6 6 6 6
7
V.2 4USB
Aufkleber MAC-Adresse
P
FAULT
FAULT
Sb
RM
5
6
7
8
13
24
911
10 12
13 15
14 16
17 19
18 20
21 23
22 24
MACH104-20TX-FR
9
8
2 3 4 51
