Installation MACH104
Release
08
01/2019
5Deinstallation
5.1 Removing the device
Disconnect the data cables.
Disable the supply voltage.
Disconnect the supply voltage.
Remove the terminal connector from the device.
To detach the device from the switch cabinet or the wall, remove the
screws from the brackets on the device.

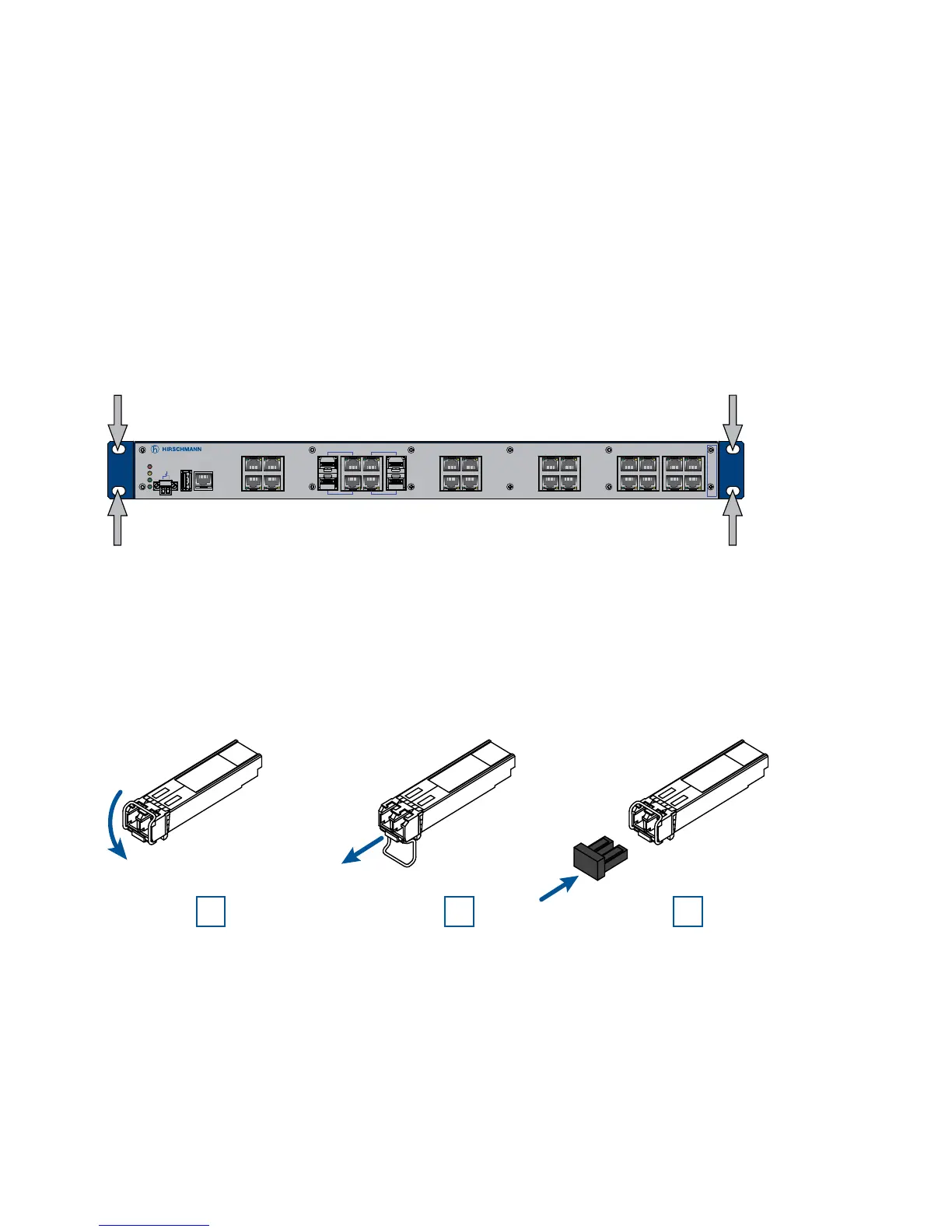

Figure 15: Disassembling the device
5.2 Removing an SFP transceiver (optional)
Figure 16: De-installing SFP transceivers: De-installation sequence
Proceed as follows:
Open the locking mechanism of the SFP transceiver (1).
Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
Close the SFP transceiver with the protection cap (3).
