Installation MACH104
Release
08
01/2019
27
2Installation
On delivery, the device is ready for operation.
The following procedure has been proven to be successful for the assembly
of the device:
Checking the package contents
Installing an SFP transceiver (optional)
Wiring and installing the signal contact
Installing the device and grounding
Operating the device
Connecting data cables
Note: Note the safety instructions in “Requirements for connecting electrical
wires” on page 6.
2.1 Checking the package contents
Check whether the package includes all items named in the section
“Scope of delivery, order numbers and accessories” on page 44.
Check the individual parts for transport damage.
2.2 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories and order numbers” on page 44.

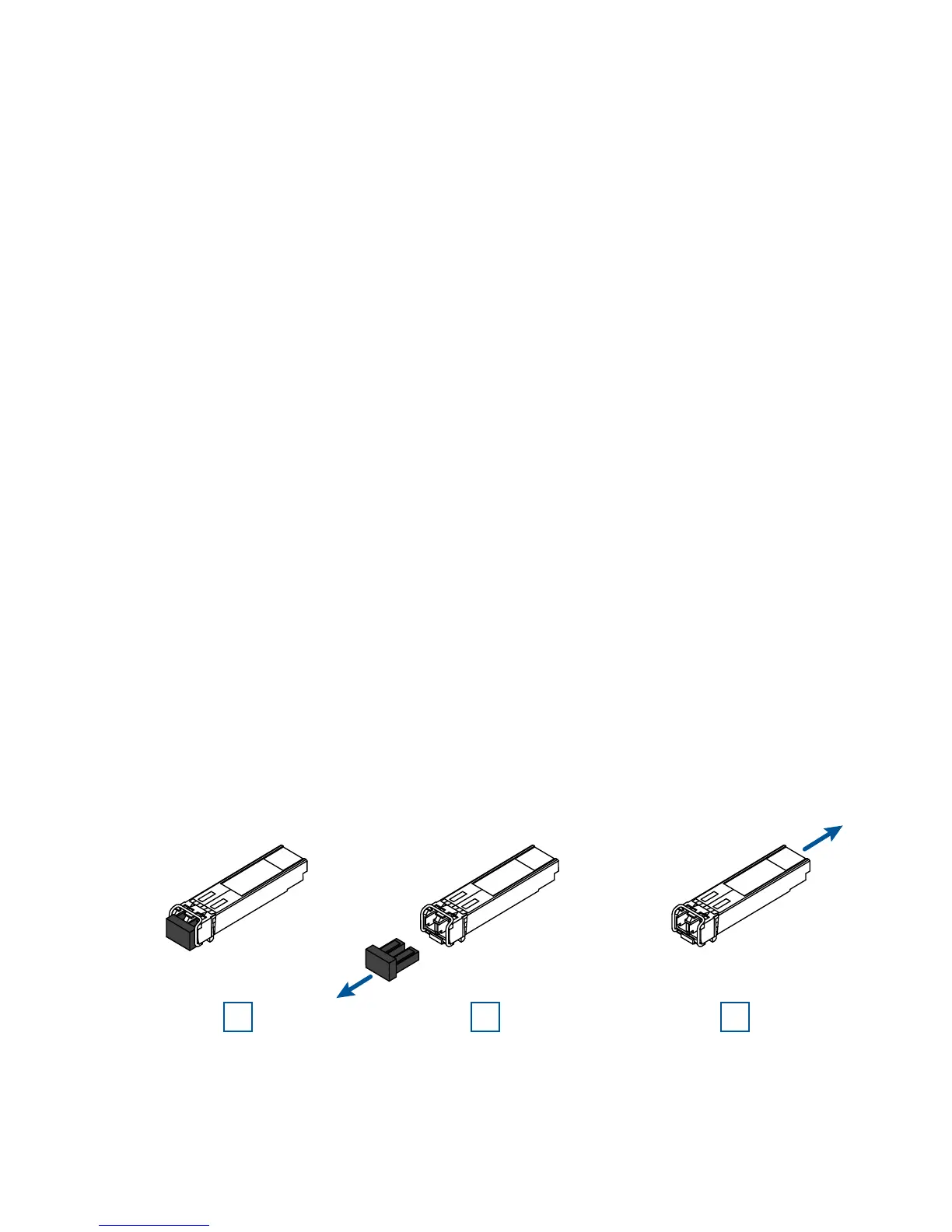

Figure 10: Installing SFP transceivers: Installation sequence
1
2
3
