Hirschmann MACH104-20TX-FR Series User Manual

38
Installation MACH104
Release 08 01/2019

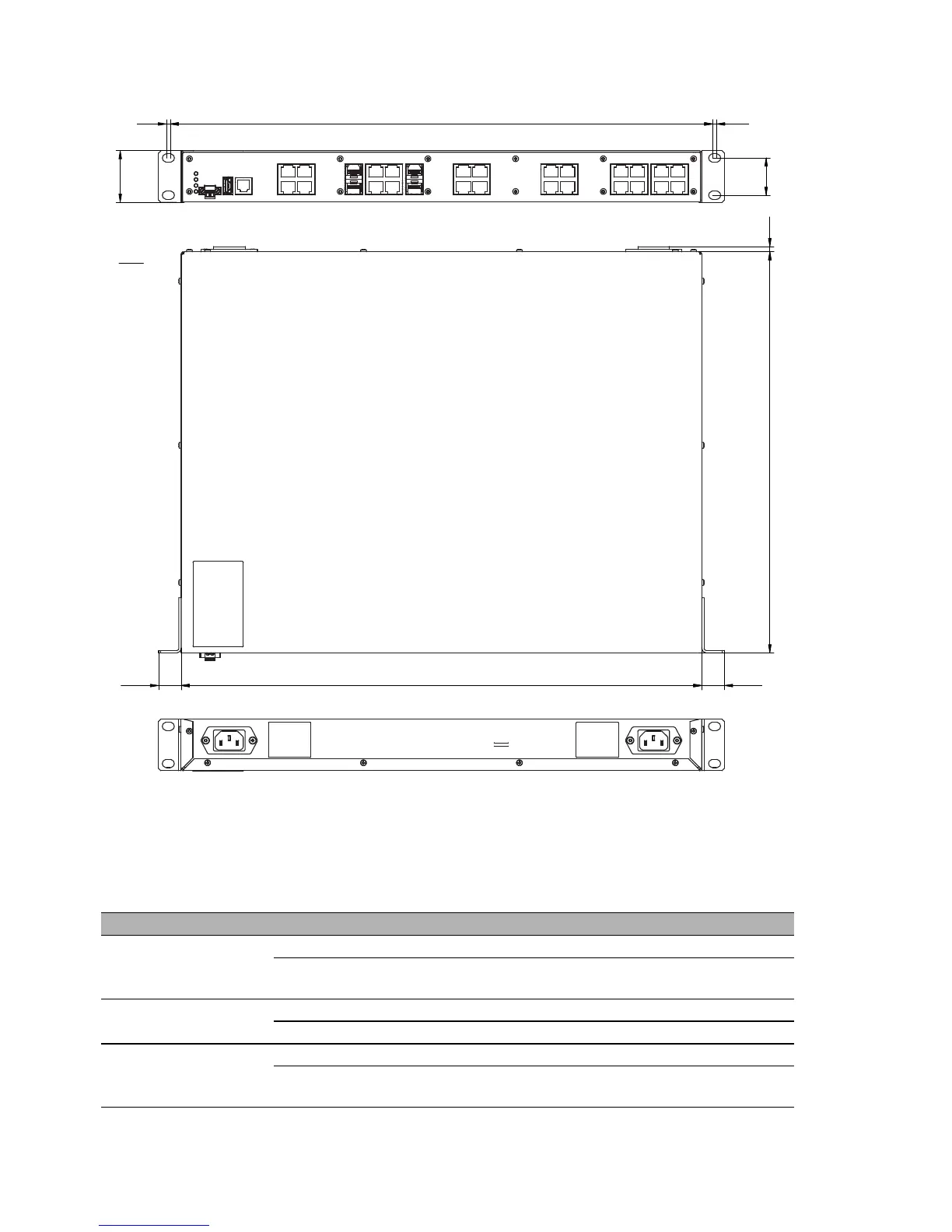

6.2 Dimension drawings
6.3 EMC and immunity
EMC interference immunity
IEC/EN 61000-4-2 Electrostatic discharge
Contact discharge
Air discharge
6kV
8kV
IEC/EN 61000-4-3 Electromagnetic field
80 MHz ... 3000 MHz max. 20 V/m
IEC/EN 61000-4-4 Fast transients (burst)
Power line
Data line
2kV
4kV
mm
inch
31,75
1.25
462,6
18.21
43,9 1.73
3,3
0.13
3,3
0.13
4,5
0.18
342
13.46
19,3
0.76
19,3
0.76
444
17.48
