12-82
4. After running the engine for a few minutes,
stop the engine and check the oil level
again. Add oil to the prescribed level.
Oil capacity
[Filter exchanged]
1L (1.05U.S. qts.)

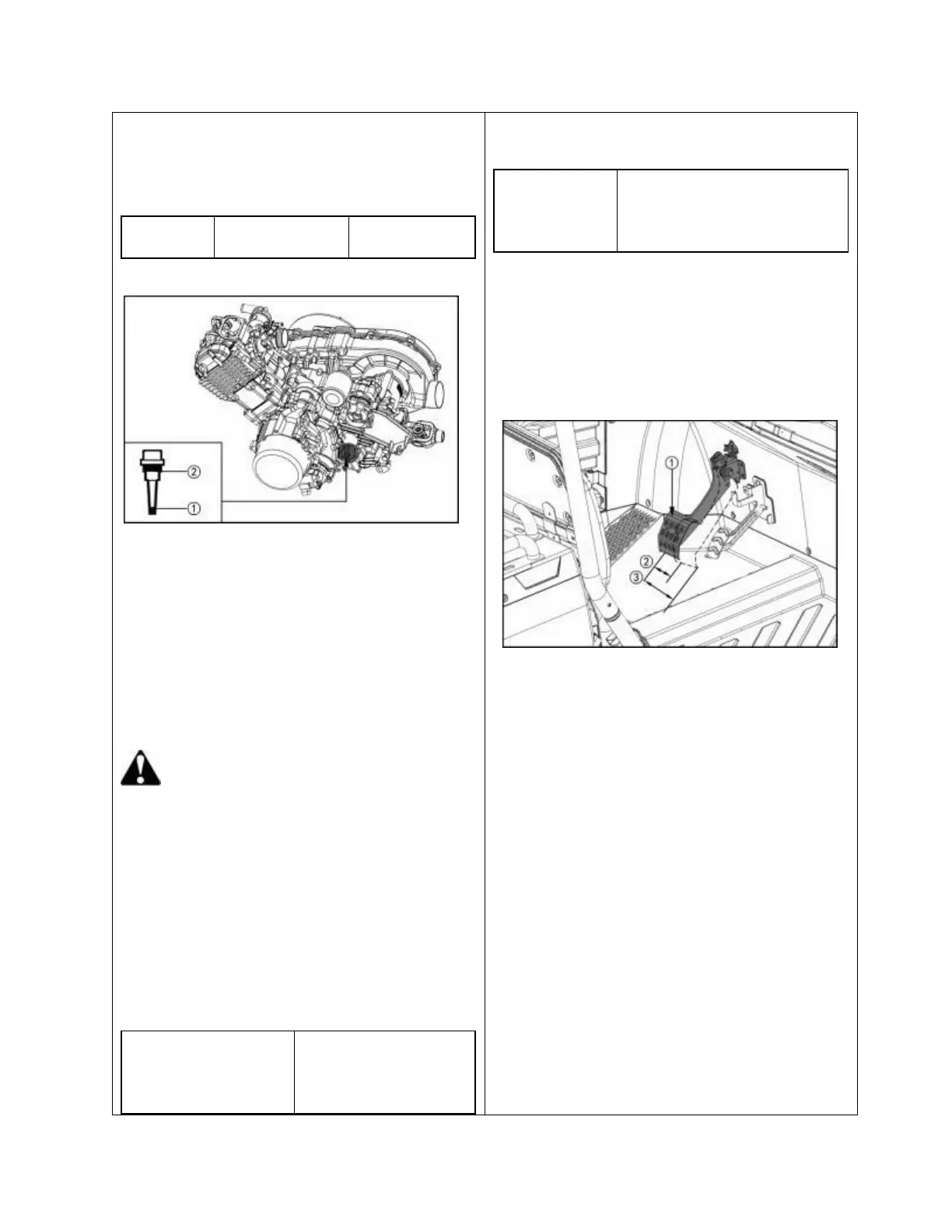

① Oil Lever
② Dipstick
■ Checking Brake Pedal
CAUTION
⚫ Stop the engine and chock the wheels
before checking brake pedal.
⚫ If movement is outside of the specifications
contact your local dealer for adjusting the
brake.
◆ Checking the brake pedal free travel
Proper brake pedal
free travel
7 to 14mm
(0.3 to in.)On the pedal
◆ Checking the brake pedal stroke
Pedal stroke
Less than 120mm (4.7in.)
On the pedal
1. Release the parking brake.
2. Step on the pedal and measure the pedal
stroke.
3. If brake pedal stroke is outside of the
specifications, contact your local dealer for
adjusting the brake.
① Brake pedal
② “FREE TRAVEL” ③ “PEDAL STROKE”
■ Checking Brake Hose and Pipe
1. Check to see that brake hose and lines are
not swollen, hardened or cracked.
2. Check the brake hose and pipe joints for oil
leaks.
3. If there is any abnormality, consult your
local dealer for this service.
