Hitachi 120-3 class - Switch Panel (Optional)

OPERATOR'S STATION
1-51
SWITCH PANEL (Optional)
NOTE: • The optional switch locations differ depending on
the kinds of optional devices are equipped. Before us-
ing the switches on the switch panel, make sure what
kind of optional devices are equipped. All available
optional devices are shown below.
• Raise the armrest when operating the optional
switch.
• Travel Alarm Deactivation
• Swing Alarm Deactivation
• Rear Light
• Overload Alarm Device Switch
• Seat Heat Switch
• Rotating Lamp
• Electric Type Control Lever
Travel Alarm Deactivation Switch (Optional)
The travel alarm buzzer sounds during travel operation.
When push the travel alarm deactivation switch (1) , the
travel alarm buzzer function is deactivated.
Swing Alarm Deactivation Switch (Optional)
The swing alarm system sounds the buzzer and turns the
beacon light ON during swing operation. When push the
swing alarm deactivation switch (2) is set to the OFF posi-
tion, the swing alarm buzzer function is deactivated.
Rear Light Switch (Optional)
When rear light switch (3) is turned ON. The rear light at the
rear of the cab roof comes ON.
T1V1-05-02-004

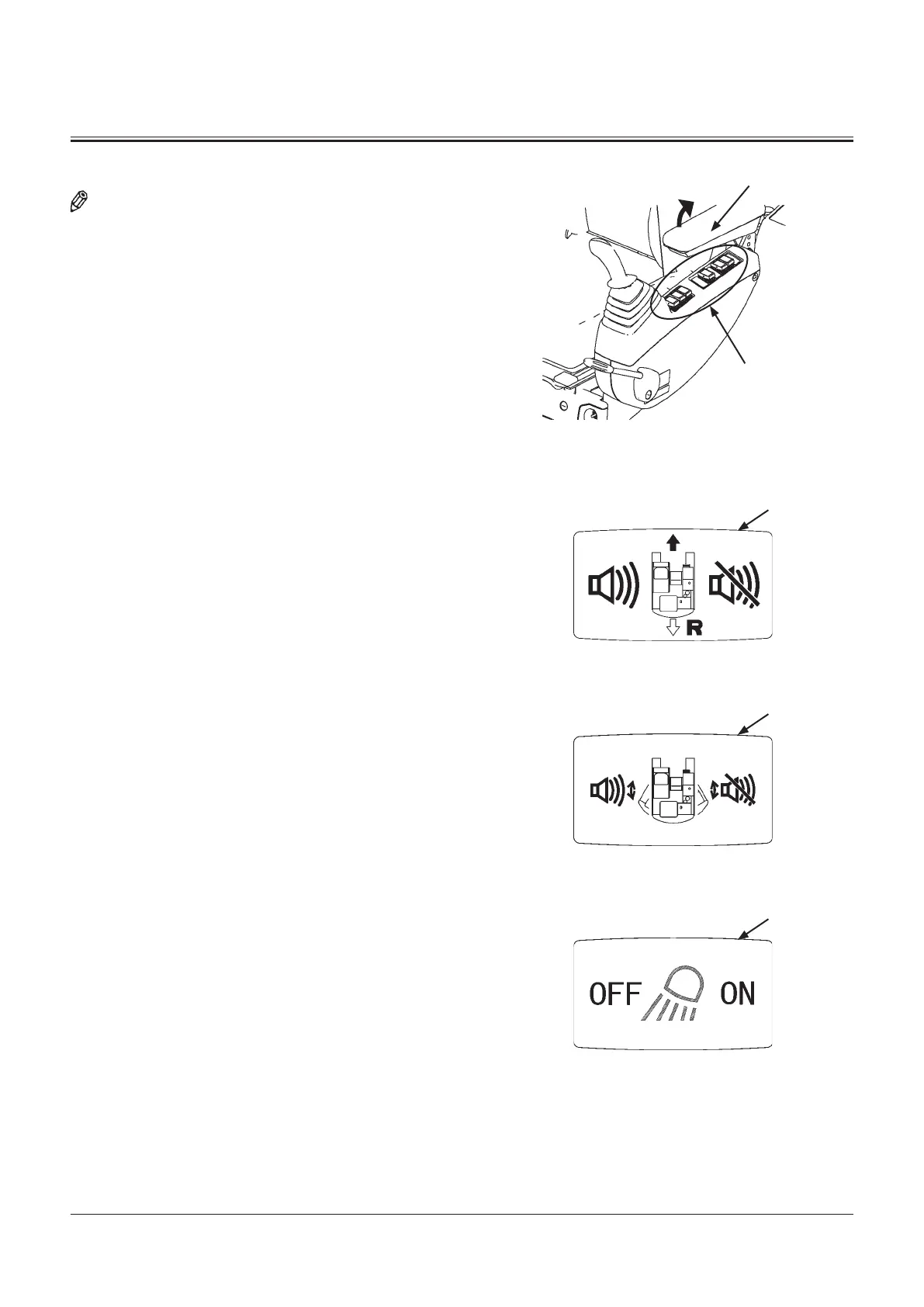

Optional Switch
M1U1-01-035
1
M1U1-01-036
2
M1U1-01-009
3
Armrest
