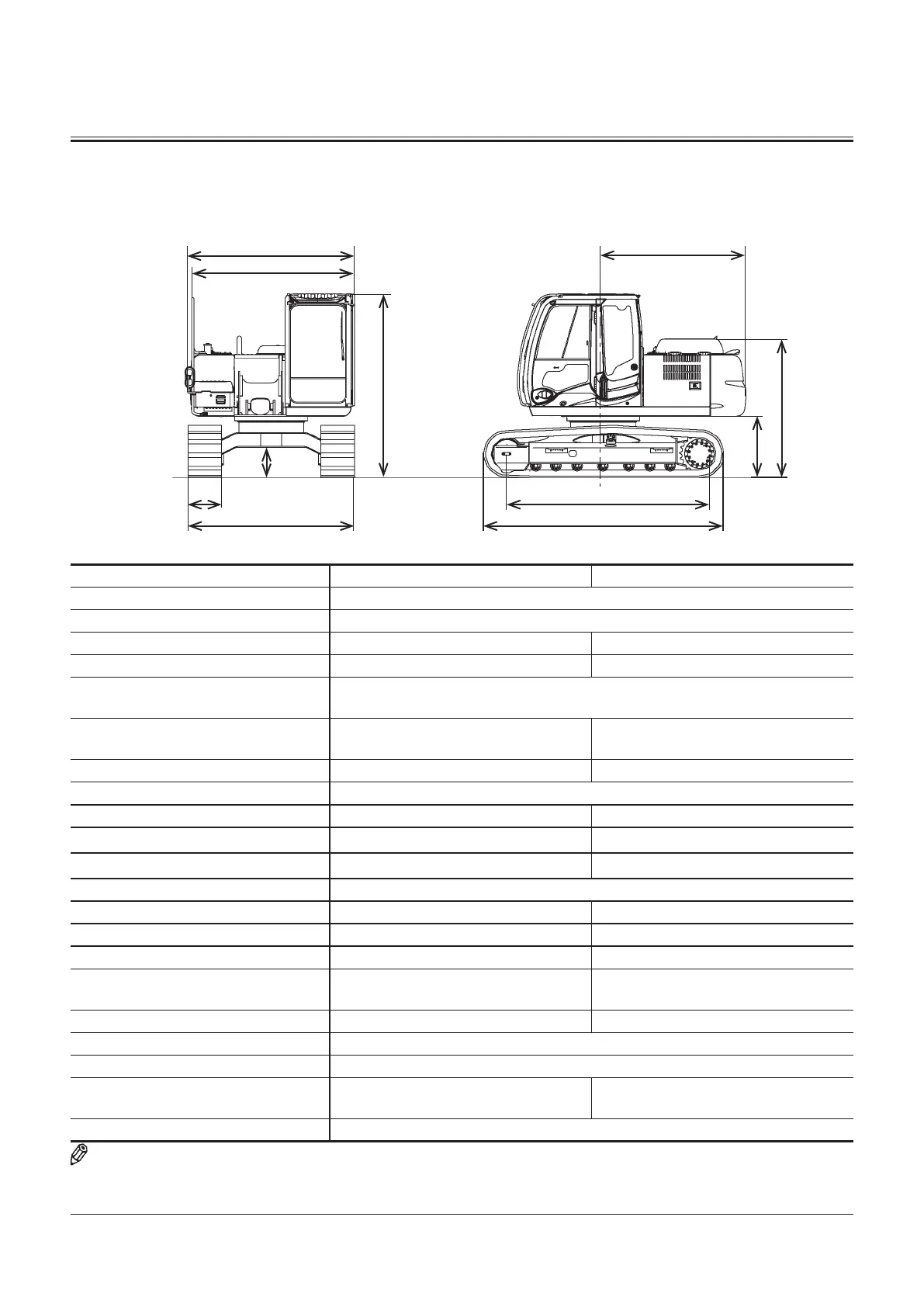

SPECIFICATIONS
ZX110-3, 110M-3 Offset
M1U1-12-001
A
G
D
K
I
B
C
E
F
J
H
Model ZX110-3 Offset ZX110M-3 Offset
Type of Front-End Attachment 1.95 m (6 ft 5 in) Arm
Bucket Capacity (Heaped) PCSA 0.45 m
3
(0.59 yd
3
), CECE 0.4 m
3
Operating Weight 11700 kg (25800 lb) 13800 kg (30400 lb)
Base Machine Weight 8600 kg (19000 lb) 10700 kg (23600 lb)
Engine
ISUZU AJ-4JJ1XYSA-03, 66 kW (90 PS)/1800 min
–1
(rpm)
✹
69 kW (94 PS)/2000 min
–1
(rpm)
A : Overall Width
(Excluding Rearview Mirrors)
2490 mm (8 ft 2 in) 2690 mm (8 ft 10 in)
B : Cab Height 2740 mm (9 ft 0 in) 2950 mm (9 ft 8 in)
C : Rear End Swing Radius 2130 mm (7 ft 0 in)
D : Minimum Ground Clearance * 440 mm (1 ft 5 in) * 595 mm (1 ft 11 in)
E : Counterweight Clearance
*
890 mm (2 ft 11 in)
*
1100 mm (3 ft 7 in)
F : Engine Cover Height
*
2050 mm (6 ft 9 in)
*
2260 mm (7 ft 5 in)
G : Overall Width of Upperstructure 2460 mm (8 ft 1 in)
H : Undercarriage Length 3340 mm (11 ft 0 in) 3790 mm (12 ft 5 in)
I : Undercarriage Width 2490 mm (8 ft 2 in) 2690 mm (9 ft 0 in)
J : Sprocket Center to Idler Center 2620 mm (8 ft 7 in) 2990 mm (9 ft 10 in)
K : Track Shoe Width
500 mm (Grouser Shoe)
(20 in)
700 mm (Grouser Shoe)
(28 in)
Ground Pressure 40 kPa (0.41 kgf/cm
2
, 5.8 psi) 29 kPa (0.30 kgf/cm
2
, 4.3 psi)
Offset Distance 0 to 1420 (0 to 4 ft 8 in)
Swing Speed 13.9 min
–1
(13.9 rpm)
Travel Speed (fast/slow)
5.5/3.6 km/h
(3.4/2.2 mph)
4.2/2.4 km/h
(2.6/1.5 mph)
Gradeability 35° (tan θ = 0.70)
NOTE:
✹
H/P mode
* The dimensions do not include the height of the shoe lug.
