Hitachi 120-3 class - Offset Arm Front

OPTIONAL ATTACHMENTS AND DEVICES
13-16
OFFSET ARM FRONT
ZX110-3, 110M-3

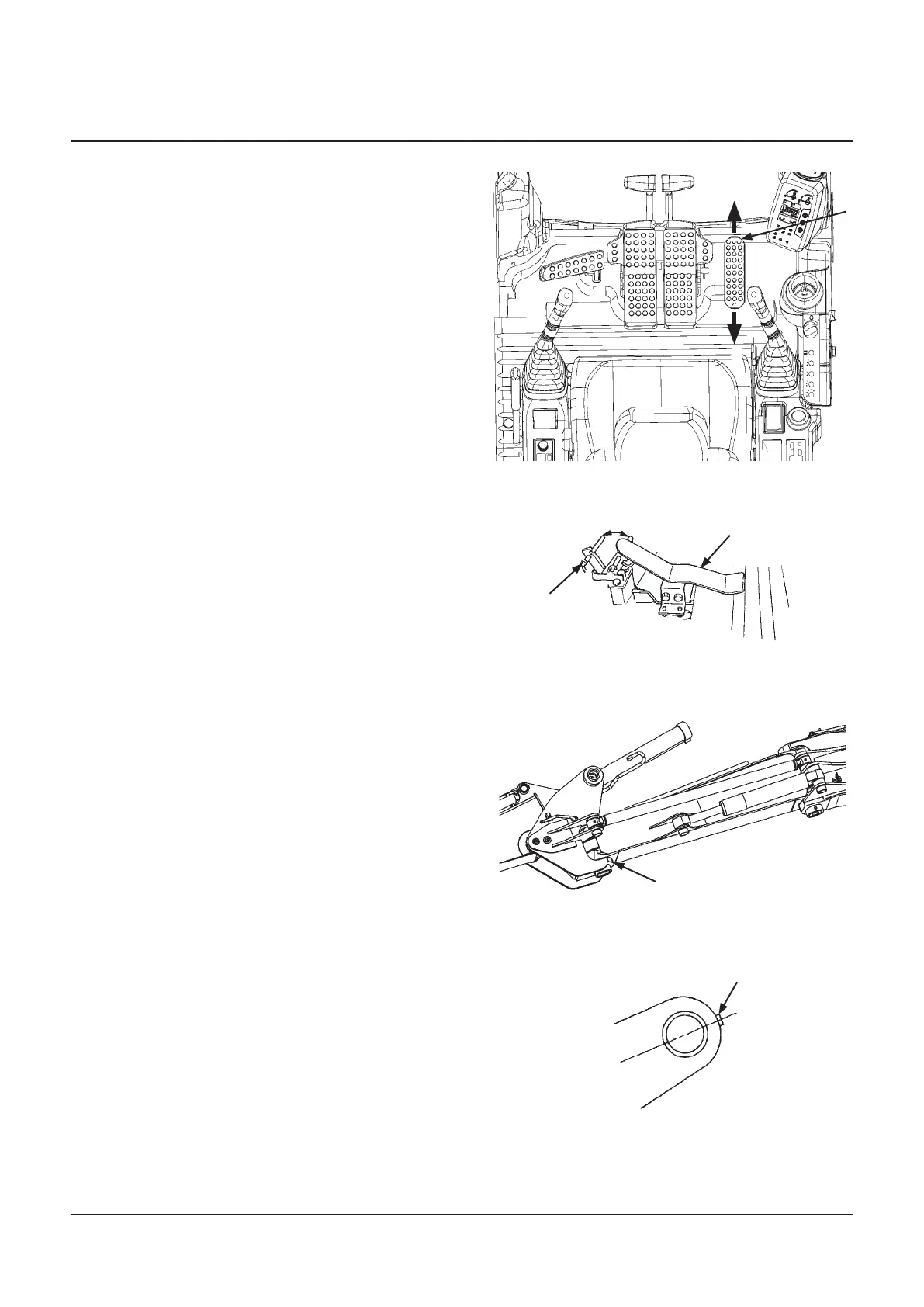

Offset Control Pedal
Pedal (1) is located at the operator’s right foot. When
pressed forward, it moves the arm to the right offset posi-
tion.
When pushed backward, it moves the arm to the left offset
position.
(2) Right Offset Position
(3) Left Offset Position
When traveling or using the arm in the center position, fix
pedal (1) in the lock position with stopper (4) as illustrated
here.
The center position of the arm (offset 0) can be confirmed
by consulting the gauge at the top end of the boom.
M178-13-001
1
3
2
M201-05-007
1
4
Unlock lock
Pedal
M175-13-006
Oset Guage
M175-13-009
(Oset 0)
