OPERATOR'S STATION
1-2

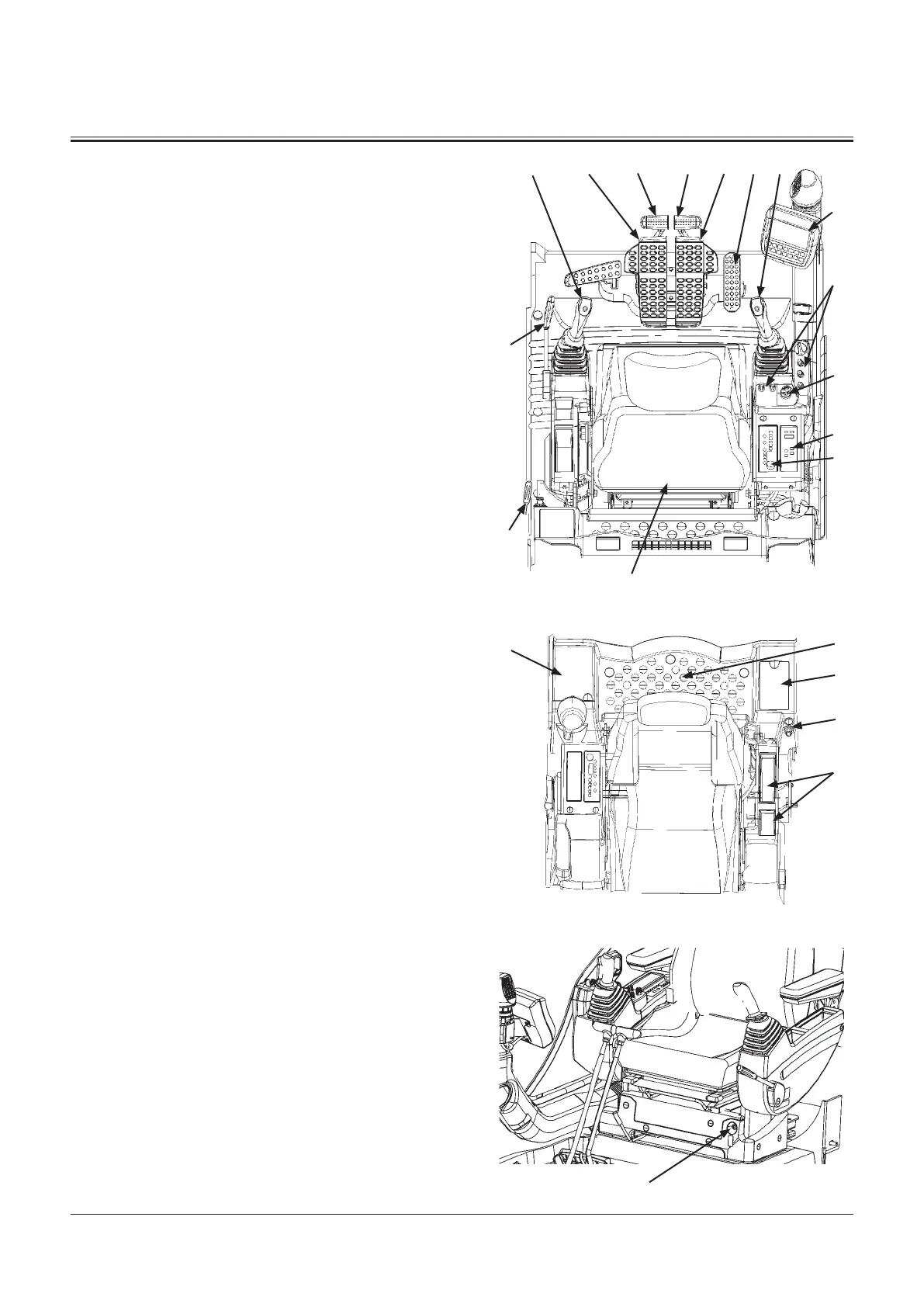

CAB FEATURES
Std. Model
1- Left Control Lever/Horn Switch
(On Top of Lever)
2- Left Travel Pedal
3- Left Travel Lever
4- Right Travel Lever
5- Right Travel Pedal
6- Attachment Pedal (Optional)
7- Right Control Lever/Power Boost Switch
(Except ZX120-3 class)
8- Multi Function Monitor Panel
9- Switch Panel
10- Key Switch
11- Air Conditioner Panel
12- Radio
13- Operator's Seat
14- Cab Door Release Lever
15- Pilot Control Shut-Off Lever
16- Glove Compartment
17- Fuse Box
18- Cigar Lighter
19- Switch Panel
20- Hot & Cool Box
21- Engine Stop Switch
