Hitachi 120-3 class User Manual

SPECIFICATIONS
12-17

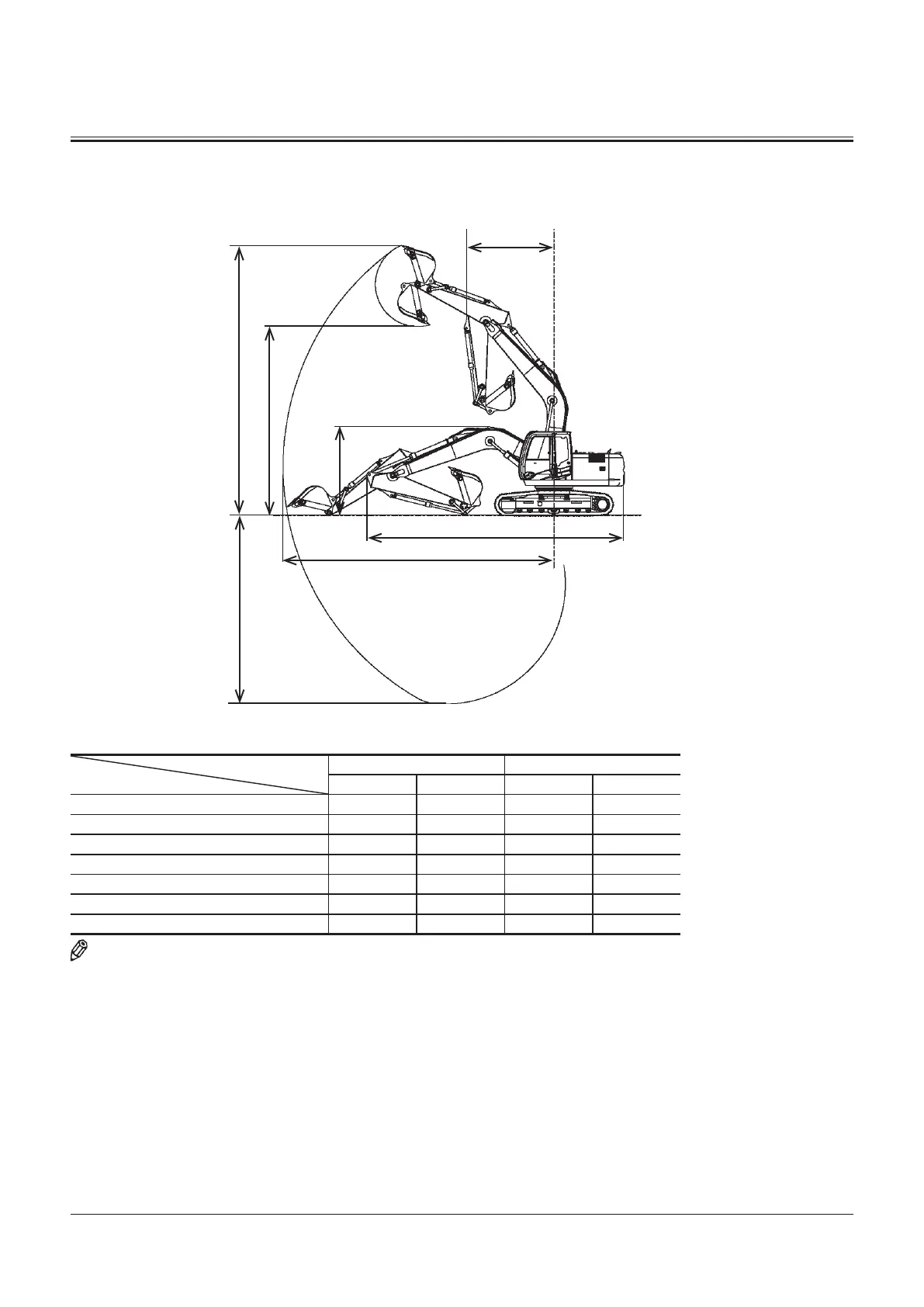

WORKING RANGES
ZX180LC-3, 180LCN-3 (Machine with Mono Boom)
Category
Item
2.26 m (7 ft 5 in) Arm 2.71 m (8 ft 11 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach 9070 29’10” 9430 30’12”
B: Maximum Digging Depth 6120 20’1” 6570 21’7”
C: Maximum Cutting Height 9290 30’6” 9400 30’11”
D: Maximum Dumping Height 6450 21’2” 6570 21’7”
E: Transport Height 3100 10’2” 3080 10’2”
F: Overall Transport Length 9000 29’7” 8970 29’6”
G: Minimum Swing Radius 3140 10’4” 3130 10’4”
NOTE: * The dimensions do not include the height of the shoe lug (except Item E).
T1T1-01-01-004
G
C
B
A
F
E
D

Hitachi 120-3 class Specifications

General

Brand	Hitachi
Model	120-3 class
Category	Excavators
Language	English
