SPECIFICATIONS
12-18

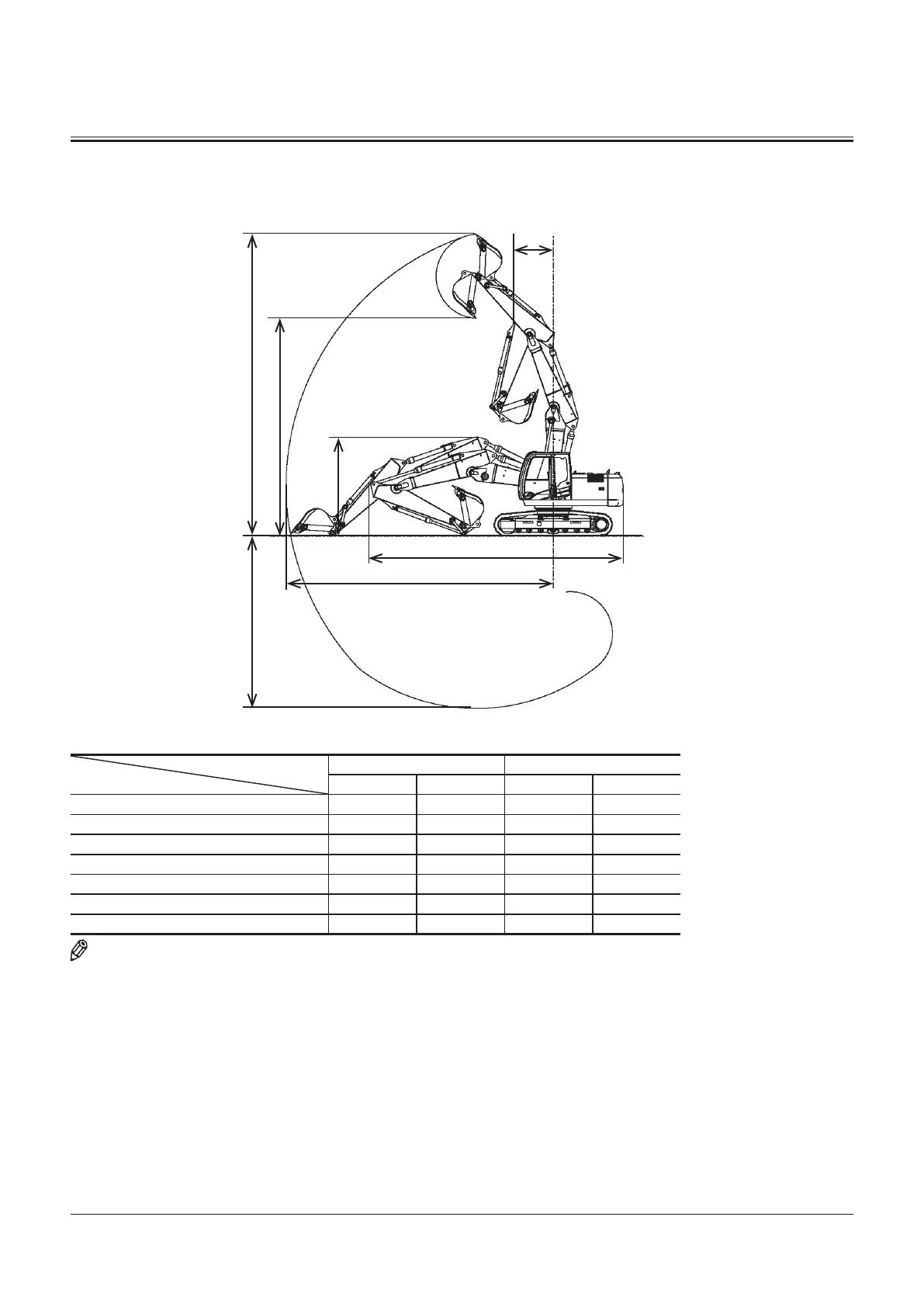

ZX180LC-3, 180LCN-3 (Machine with 2-Piece Boom)
Category
Item
2.26 m (7 ft 5 in) Arm 2.71 m (8 ft 11 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach 8980 29’6” 9350 30’9”
B: Maximum Digging Depth 5640 18’6” 6050 19’11”
C: Maximum Cutting Height 10260 33’8” 10530 34’7”
D: Maximum Dumping Height 7320 24’1” 7590 24’11”
E: Transport Height 3030 9’12” 3030 9’12”
F: Overall Transport Length 8850 29’1” 8840 29’0”
G: Minimum Swing Radius 2280 7’6” 2230 7’4”
NOTE: * The dimensions do not include the height of the shoe lug (except Item E).
T1T1-01-01-006
C
B
D
E
F
A
G

Hitachi 120-3 class Specifications

General

Brand	Hitachi
Model	120-3 class
Category	Excavators
Language	English
