Hitachi 120-3 class - Working Ranges (ZX210-3, 210 LC-3)

SPECIFICATIONS
12-22

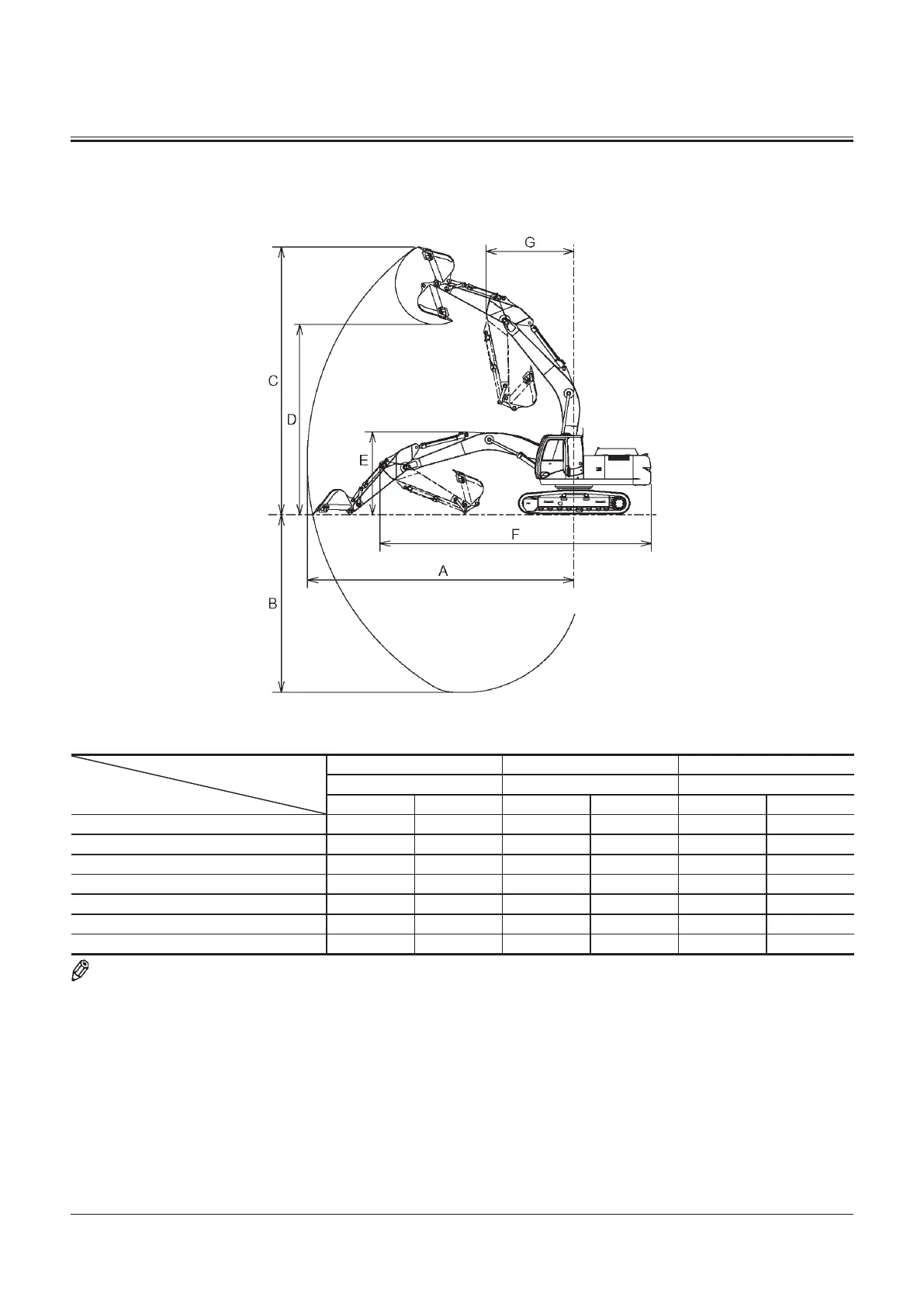

WORKING RANGES
ZX210-3, 210LC-3
Category
Item
2.03 m (6 ft 8 in) Arm 2.42 m (7 ft 11 in) Arm 2.91 m (9 ft 7 in) Arm
Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach 9230 30’3” 9430 30’11” 9920 32’7”
B: Maximum Digging Depth *5800 *19’0” *6180 *20’3” *6670 *21’11”
C: Maximum Cutting Height *9850 *32’4” *9670 *31’9” *10040 *32’11”
D: Maximum Dumping Height *6940 *22’9” *6830 *22’5” *7180 *23’7”
E: Transport Height 3150 10’4” 3180 10’5” 2940 9’8”
F: Overall Transport Length 9680 31’9” 9680 31’9” 9520 31’5”
G: Minimum Swing Radius 3410 11’2” 3280 10’9” 3180 10’5”
NOTE: * The dimensions do not include the height of the shoe lug.
T1V1-01-01-002
Backhoe
