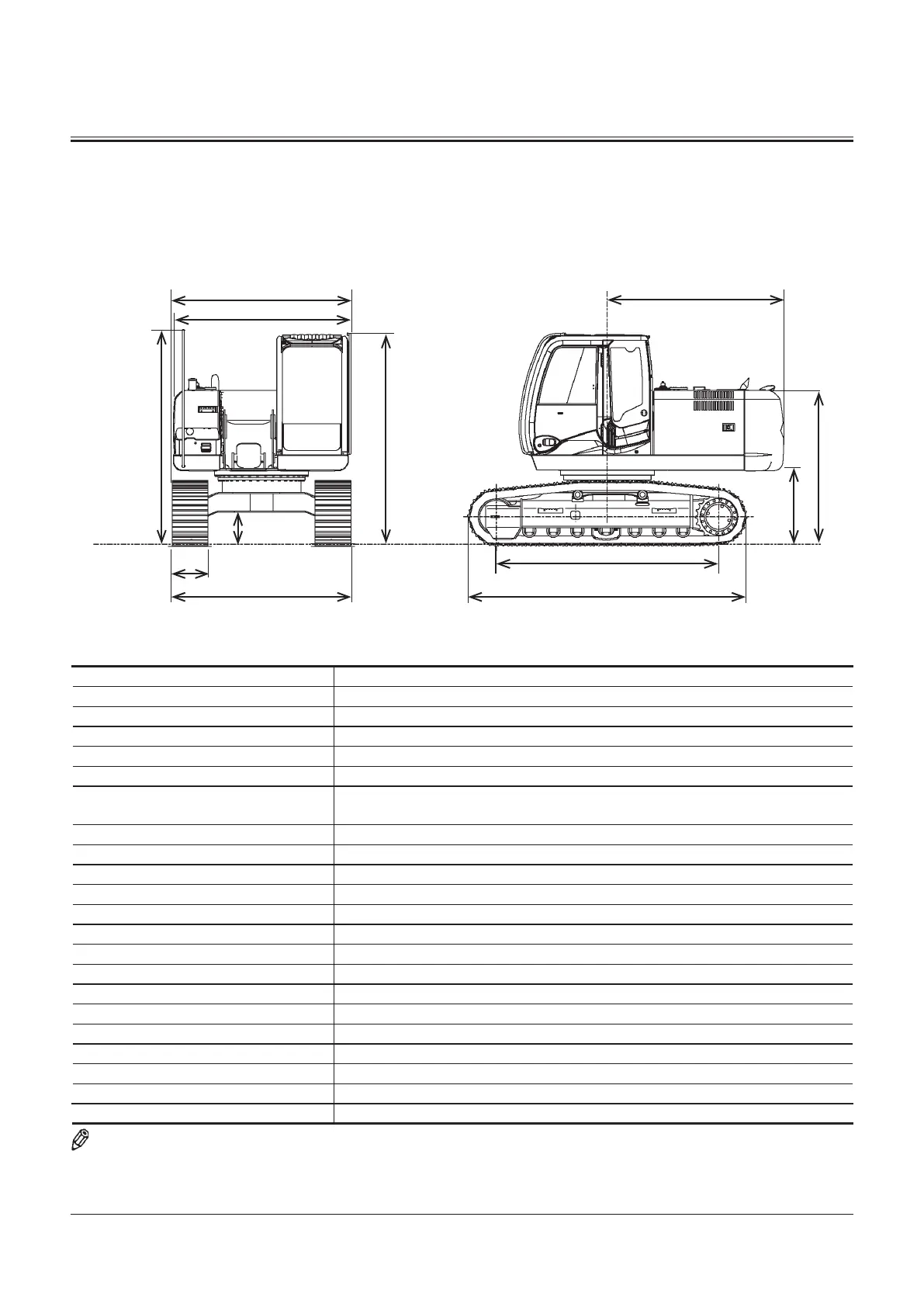

SPECIFICATIONS
12-11
SPECIFICATIONS
ZX160LC-3
Model ZX160LC-3
Type of Front-End Attachment 2.58 m (8 ft 6 in) Arm
Bucket Capacity (Heaped) PCSA 0.6 m
3
(0.76 yd
3
), CECE 0.55 m
3
Operating Weight 16600 kg (36600 lb)
Basic Machine Weight 13100 kg (28880 lb)
Engine Isuzu AI-4JJ1XYSA-01 90.2 kW/2200 min
–1
(123 PS/2200 rpm) (HP mode)
A: Overall Width
(Excluding back mirrors)
2500 mm (8 ft 2 in)
B: Cab Height 2950 mm (9 ft 8 in)
C: Rear End Swing Radius 2490 mm (8 ft 2 in)
D: Minimum Ground Clearance * 470 mm (19 in)
E: Counterweight Clearance * 1030 mm (3 ft 5 in)
F: Engine Cover Height * 2140 mm (8 ft 0 in)
F’: Overall Height of Handrail 3010 mm (9 ft 11 in)
G: Overall Width of Upperstructure 2480 mm (8 ft 2 in)
H: Undercarriage Length 3920 mm (12 ft 10 in)
I: Undercarriage Width 2490 mm (8 ft 2 in)
J: Sprocket Center to Idler Center 3100 mm (10 ft 2 in)
K: Track Shoe Width 500 mm (20 in) (Grouser shoe)
Ground Pressure 48 kPa (0.49 kgf/cm
2
, 7.0 psi)
Swing Speed 13.3 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.4 km/h (3.4/2.2 mph)
Gradeability 35° (tan θ = 0.70)
NOTE: * The dimensions do not include the height of the shoe lug.
