BUCKET TEETH (Transverse-Type-Pin-Used Type)
ZX200-3, 270-3, 330-3 Class
Replacement Procedure
CAUTION: Guard against injury from flying pieces of
metal. Wear goggles or safety glasses.
1. Securely lower the bucket to the ground.
2. Use hammer (3) and drift (2) to drive out transverse-type
locking pin (1) to remove tooth (4).
NOTE: Be sure to use a drift (2) thinner than pin (1).
3. Clean shank (5) surface. Attach a new tooth (4) onto
shank (5). Insert pin (1) as deep as it goes. Then, drive pin
(1) using hammer (3) and drift (2) to securely lock tooth
(4).

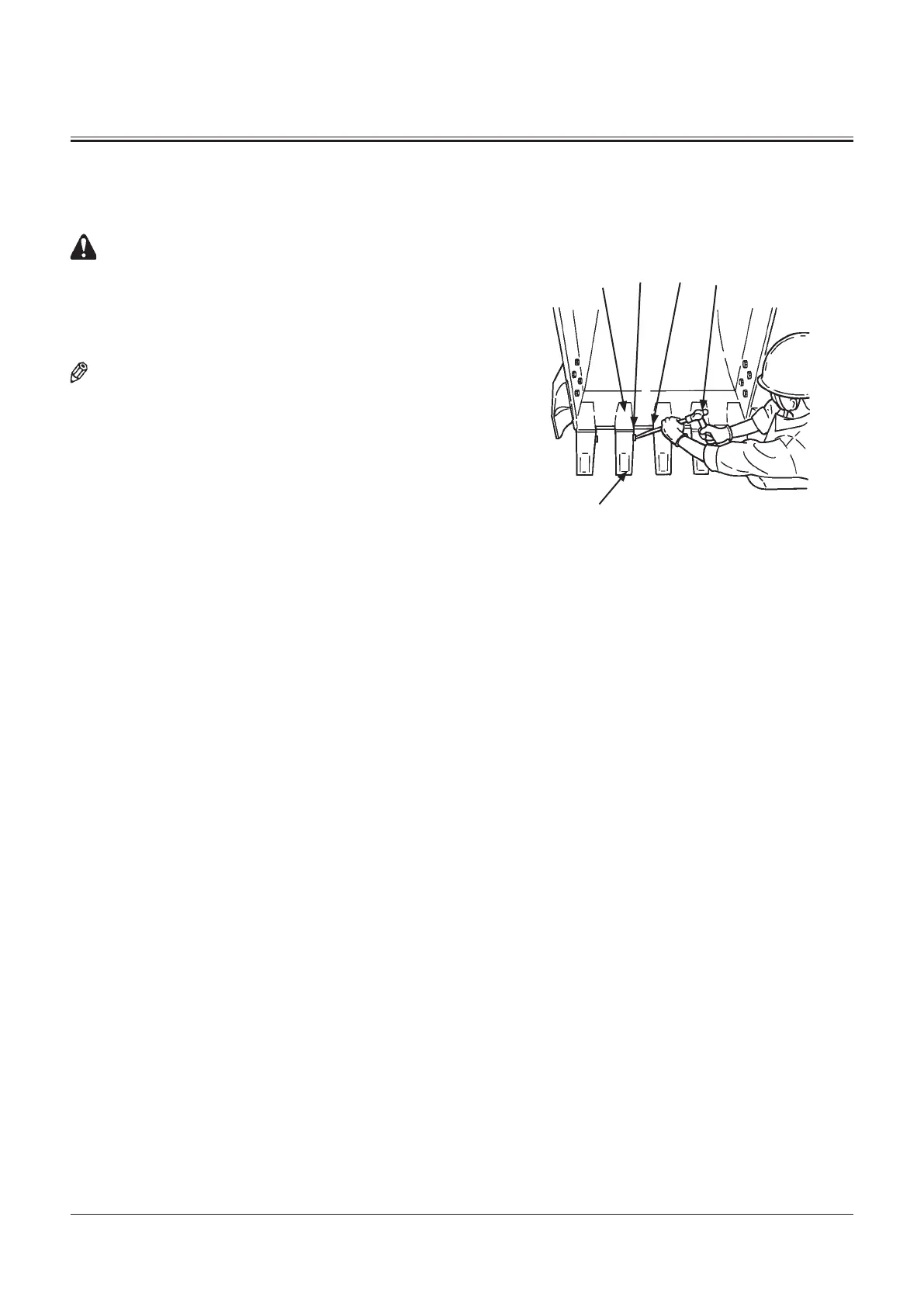

M157-14-013
5 1 2 3
4
